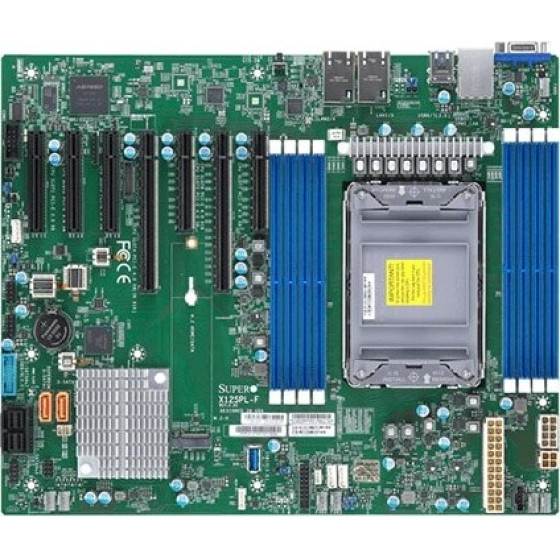

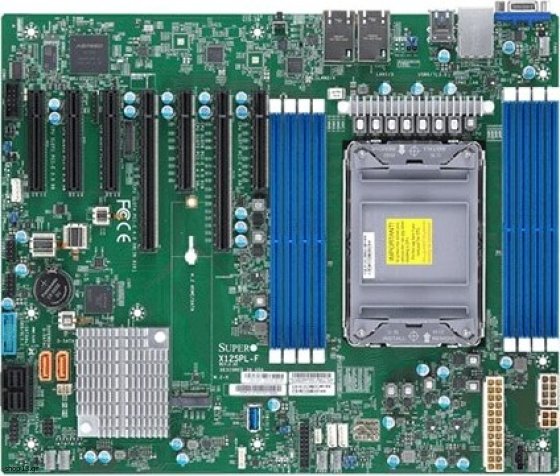

SUPERMICRO Motherboard Intel(R) C621 Lga 4189 Atx - (MBD-X12SPL-F-B)

Processor
Intel Xeon series: 3000
Processor socket: LGA 4189
Processor manufacturer: Intel
Compatible processor series: Intel(R) Xeon(R)

Graphics
Graphics card family: ASPEED
On-board graphics card: Yes

Features
Motherboard chipset family: Intel
Component for: Server
Motherboard form factor: ATX
Motherboard chipset: Intel(R) C621
PC health monitoring: Voltage, LED, Temperature

Memory
Supported memory module capacities: 32GB, 16GB, 128GB, 64GB, 8GB
Supported memory clock speeds: 2933, 3200, 2666
Maximum internal memory: 2 TB
Supported memory types: DDR4-SDRAM
ECC: Yes
Memory voltage: 1.2 V
Memory slots type: DIMM
Number of memory slots: 8
ECC ?ompatibility: ECC

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 10 - 85%

Network
LAN controller: Intel I210
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
Number of SATA III connectors: 10
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
TPM connector: Yes

BIOS
BIOS type: UEFI AMI
ACPI version: 6.2
System Management BIOS (SMBIOS) version: 3.0

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Serial ports quantity: 1
VGA (D-Sub) ports quantity: 1

Expansion slots
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
PCI Express x8 slots: 3

Logistics data
Harmonized System (HS) code: 84733020


Warranty: warranty 12 months
