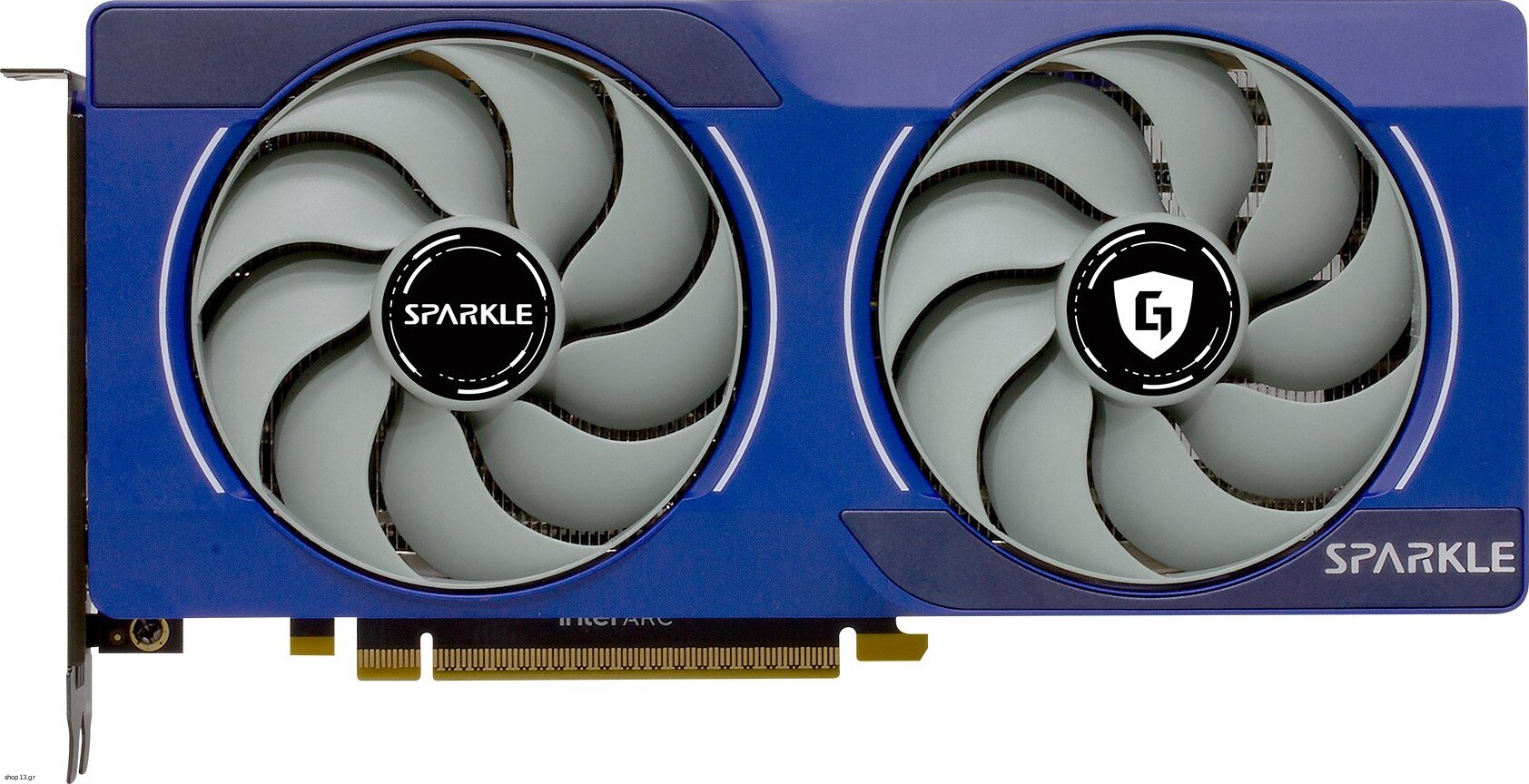

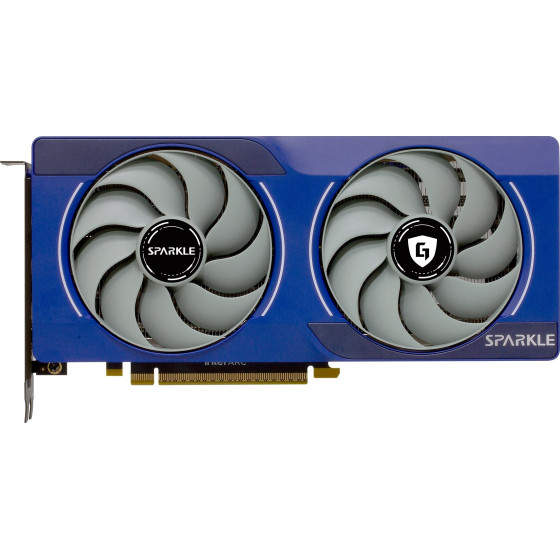

SPARKLE Technology Intel Arc B570 Guardian Oc 10 Gb GDDR6 - (SB570G-10GOC)

Processor
Graphics processor family: Intel
Maximum displays per videocard: 4
Maximum resolution: 7680 x 4320 pixels
CUDA: No
Graphics processor: Arc B570
Parallel processing technology support: Not supported
Processor frequency: 2500 MHz
Processor boost clock speed: 2660 MHz
Ray accelerators: 18

Memory
Memory bandwidth (max): 380 GB/s
Graphics card memory type: GDDR6
Memory bus: 160 bit
Discrete graphics card memory: 10 GB

Design
Number of slots: 2.2
Cooling type: Active
Number of fans: 2 fan(s)
Product colour: Blue

Power
Supplementary power connectors: 1x 8-pin
Power supply location: Top
Minimum system power supply: 600 W
Power consumption (max): 170 W
Power consumption (typical): 150 W

Weight & dimensions
Length: 242 mm
Weight: 796 g
Height: 105 mm
Depth: 44 mm

System requirements
Minimum RAM: 8000 MB
Windows operating systems supported: Windows 11, Windows 10

Performance
TV tuner integrated: No
OpenCL version: 3.0
OpenGL version: 4.6
Dual Link DVI: No
DirectX version: 12 Ultimate
Xe-cores: 18
Intel(R) Xe Matrix Extensions (Intel(R) XMX) Engines: 144
NPU performance up to: 203 TOPs

Packaging data
Package type: Box

Ports & interfaces
HDMI ports quantity: 1
Interface type: PCI Express x8 4.0
DisplayPort version: 2.1
HDMI version: 2.1
DisplayPorts quantity: 3


Warranty: warranty 36 months
