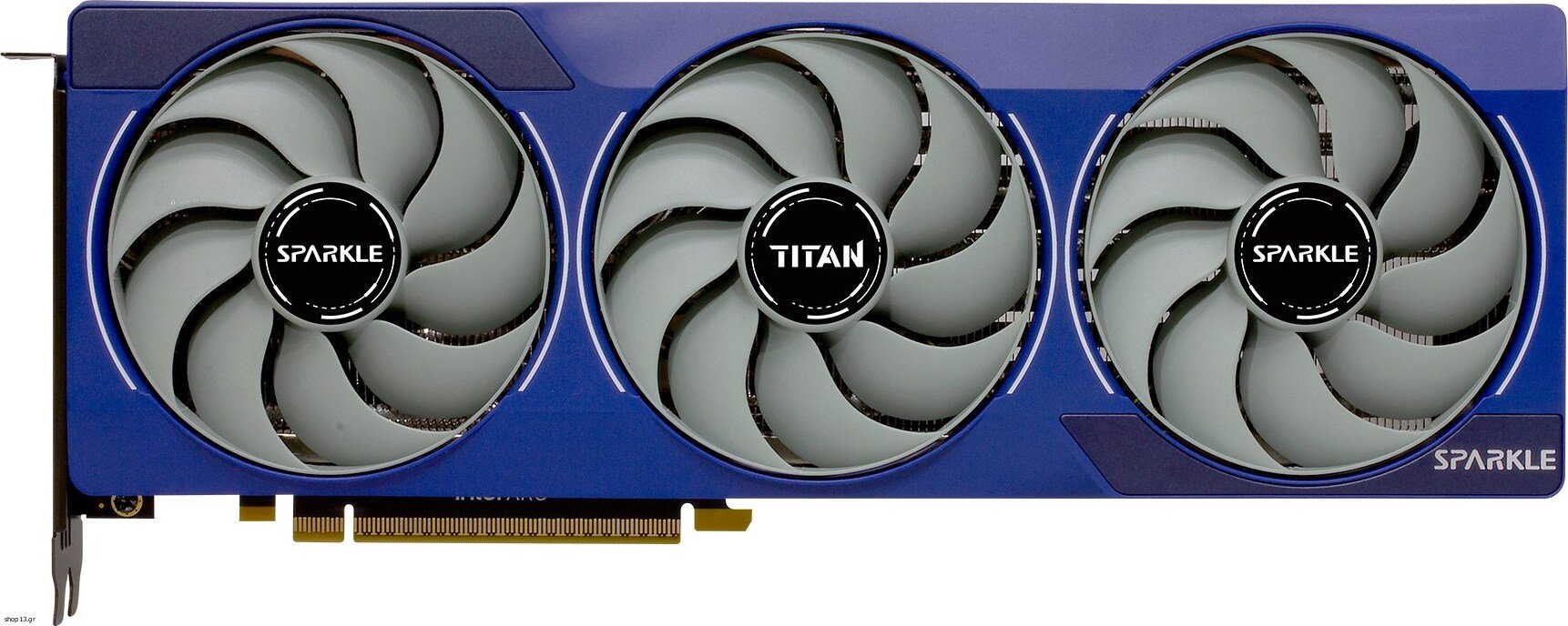

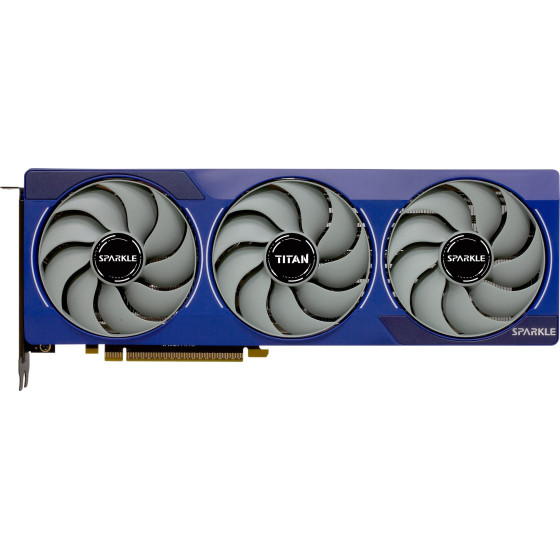

SPARKLE Intel Arc B580 Titan Oc 12 Gb Graphics Card - (SB580T-12GOC)

Processor
Parallel processing technology support: Not supported
Maximum resolution: 7680 x 4320 pixels
Graphics processor family: Intel
Processor frequency: 2740 MHz
Graphics processor: Arc B580
Maximum displays per videocard: 4
Ray accelerators: 20
CUDA: No

Memory
Discrete graphics card memory: 12 GB
Memory bus: 192 bit
Graphics card memory type: GDDR6
Memory bandwidth (max): 456 GB/s

Design
Cooling type: Active
Number of fans: 3 fan(s)
Product colour: Blue
Number of slots: 2.2

Power
Minimum system power supply: 600 W
Power consumption (typical): 200 W
Power supply location: Top
Supplementary power connectors: 1x 8-pin

Weight & dimensions
Height: 117 mm
Weight: 954 g
Length: 315 mm
Depth: 44 mm

System requirements
Windows operating systems supported: Windows 11, Windows 10
Minimum RAM: 8000 MB

Performance
Dual Link DVI: No
TV tuner integrated: No
OpenCL version: 3.0
OpenGL version: 4.6
DirectX version: 12 Ultimate
NPU performance up to: 233 TOPs
Intel(R) Xe Matrix Extensions (Intel(R) XMX) Engines: 160
Xe-cores: 20

Packaging data
Package type: Box

Ports & interfaces
DisplayPort version: 2.1
Interface type: PCI Express x8 4.0
HDMI version: 2.1
DisplayPorts quantity: 3
HDMI ports quantity: 1

Other features
HDMI: Yes


Warranty: warranty 36 months
