Technical details
Sustainability certificates: ENERGY STAR, ErP
Sustainability compliance: Yes
Design
Cooling type: Active
Product colour: White
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
On/off switch: Yes
Power
Max output current (+5Vsb): 3 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
AC input frequency: 50/60 Hz
Input current: 10 - 5 A
Total power: 750 W
Power protection features: Under voltage, Over current, Short circuit, Over voltage, Overheating, Over power
AC input voltage: 100 - 240 V
Combined power (-12V): 3.6 W
Combined power (+5V): 100 W
Combined power (+12V): 744 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Combined power (+3.3V): 100 W
Max output current (+12V): 62 A
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
Depth: 140 mm
Width: 150 mm
Height: 86 mm
Performance
Power supply unit (PSU) form factor: ATX
Purpose: PC
Bearing technology: FDB
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
ATX version: 3.1
Silent mode: Yes
Packaging content
Cable tie(s) included: Yes
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Compliance certificates: CB, EAC, cTUVus, RoHS, CE, BSMI, REACH, TUV mark, Federal Communications Commission (FCC), CCC
Ports & interfaces

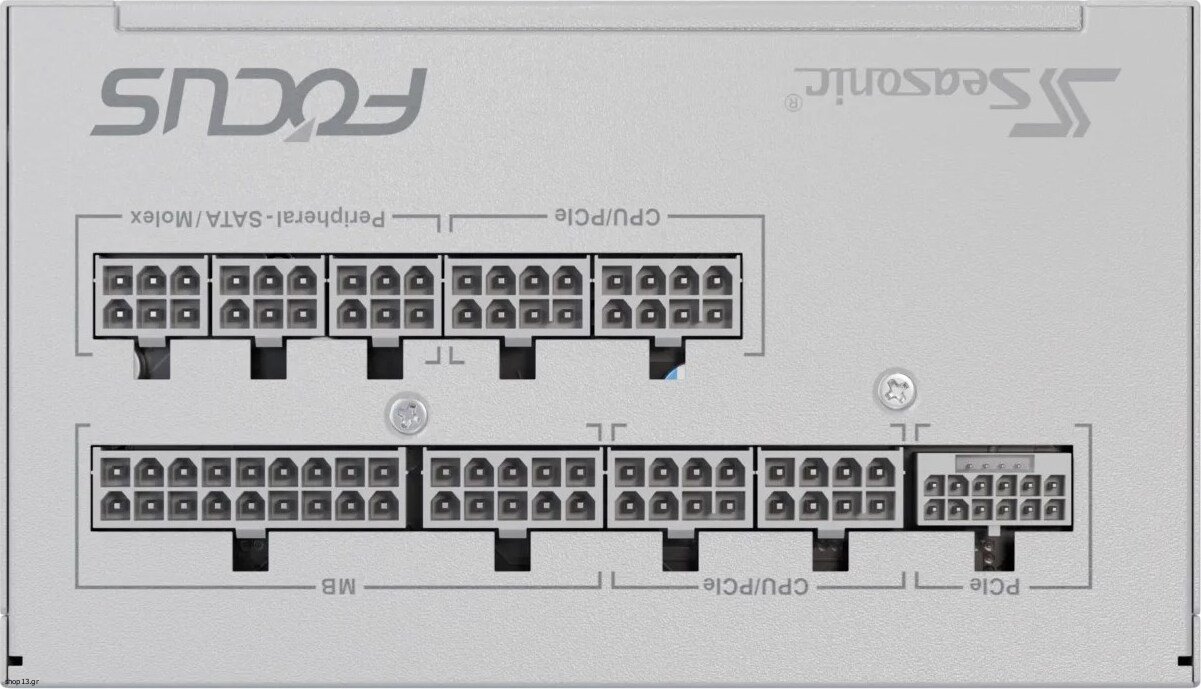

Motherboard power connector: 24-pin ATX
CPU power cable length: 70 cm
Peripheral (Molex) power cable length: 690 mm
SATA power cable length: 950 mm
PCI Express connector: Yes
PCI Express power cable length: 75 cm
CPU power connector (4+4 pin): Yes
PCI Express power connectors (12+4 pin) cable length: 700 mm
PCI Express power connectors (6+2 pin): 2
Cabling type: Fully-Modular
Motherboard power cable length: 61 cm
Warranty: warranty 24 months
