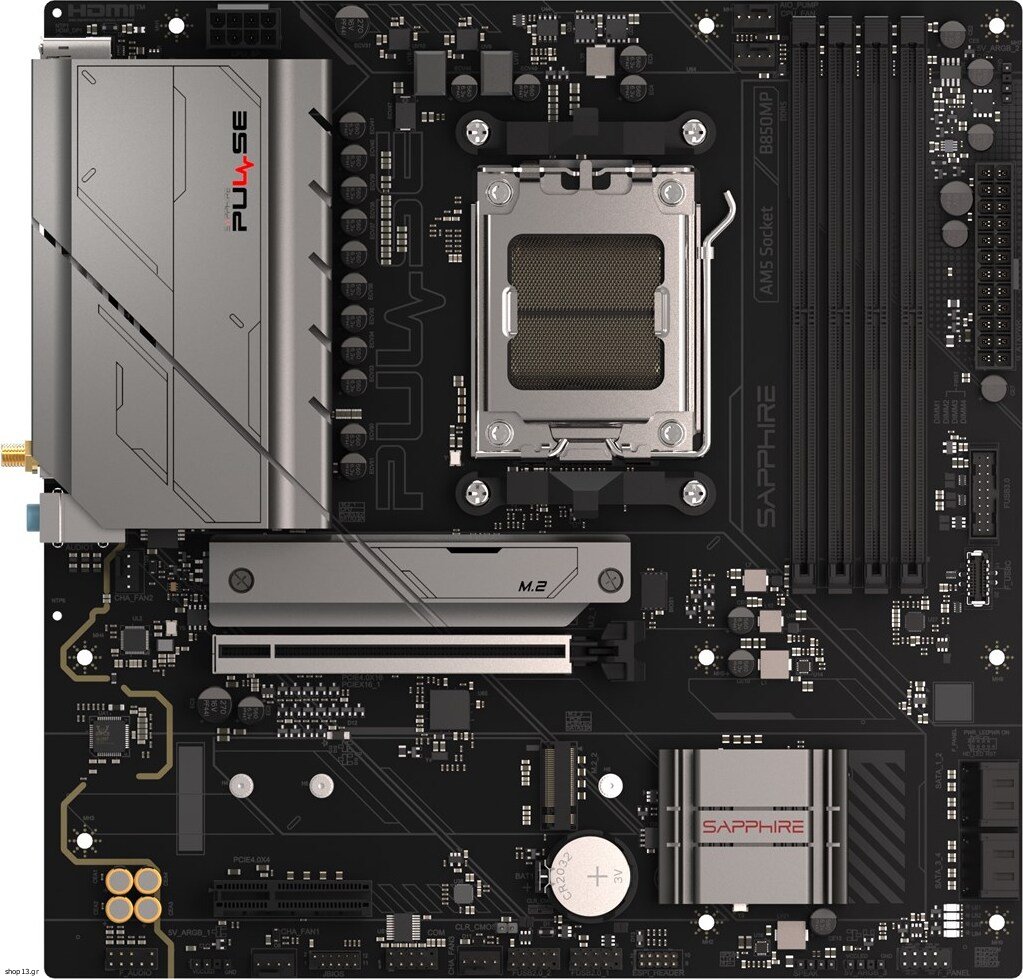

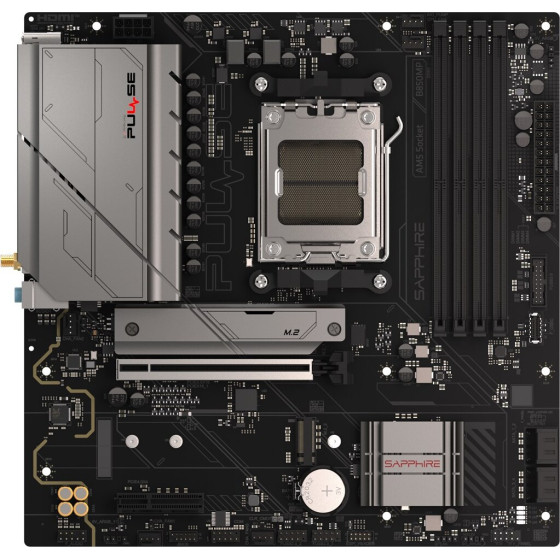

Sapphire Pulse B850M Wifi Amd B850 Socket AM5 Micro Atx - (52123-04-40G)
[Κωδικός : 775084]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Processor
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Graphics
Parallel processing technology support: Not supported
Features
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio chip: Realtek ALC897
Audio output channels: 5.1 channels
Product colour: Black
Motherboard form factor: micro ATX
Motherboard chipset: AMD B850
Memory
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Maximum internal memory: 192 GB
Memory channels: Dual-channel
Supported memory clock speed (max): 7600 MHz
Maximum internal memory per slot: 48 GB
Weight & dimensions
Depth: 235 mm
Width: 244 mm
Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), 802.11b
LAN controller: Dragon RTL8125BG
Ethernet LAN: Yes
Bluetooth version: 5.3
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Internal I/O
Front panel audio connector: Yes
USB 2.0 connectors: 2
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 3
Front panel connector: Yes
CPU fan connector: Yes
Serial port headers: 1
Number of CPU fan connectors: 1
Number of water pump connectors: 1
Number of RGB LED pin headers: 3
BIOS
Clear CMOS jumper: Yes
Storage controllers
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
Rear panel I/O ports
Microphone in: Yes
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Headphone outputs: 3
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-A
DisplayPorts quantity: 1
USB 2.0 ports quantity: 6
HDMI ports quantity: 1
WiFi-AP antenna jack: 2
Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
Warranty: warranty 36 months
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Graphics
Parallel processing technology support: Not supported
Features
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio chip: Realtek ALC897
Audio output channels: 5.1 channels
Product colour: Black
Motherboard form factor: micro ATX
Motherboard chipset: AMD B850
Memory
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Maximum internal memory: 192 GB
Memory channels: Dual-channel
Supported memory clock speed (max): 7600 MHz
Maximum internal memory per slot: 48 GB
Weight & dimensions
Depth: 235 mm
Width: 244 mm
Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), 802.11b
LAN controller: Dragon RTL8125BG
Ethernet LAN: Yes
Bluetooth version: 5.3
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Internal I/O
Front panel audio connector: Yes
USB 2.0 connectors: 2
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 3
Front panel connector: Yes
CPU fan connector: Yes
Serial port headers: 1
Number of CPU fan connectors: 1
Number of water pump connectors: 1
Number of RGB LED pin headers: 3
BIOS
Clear CMOS jumper: Yes
Storage controllers
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
Rear panel I/O ports
Microphone in: Yes
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Headphone outputs: 3
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-A
DisplayPorts quantity: 1
USB 2.0 ports quantity: 6
HDMI ports quantity: 1
WiFi-AP antenna jack: 2
Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
Warranty: warranty 36 months
Χαρακτηριστικά
Μοντέλο
Sapphire PULSE B850M WIFI AMD B850 Socket AM5 micro ATX - (52123-04-40G)
Δείτε περισσότερα
Σύνολο: 422.15€
