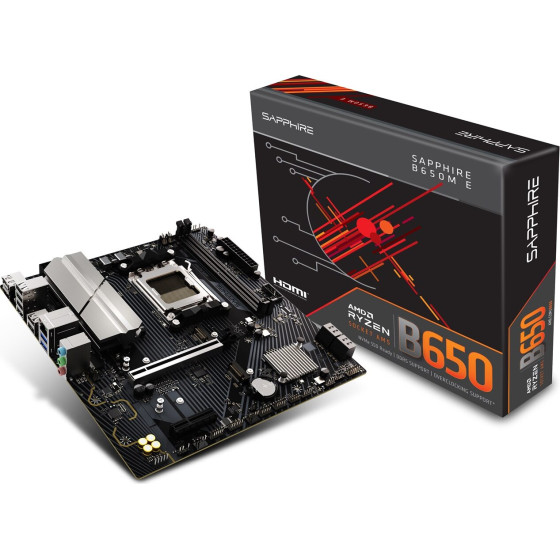

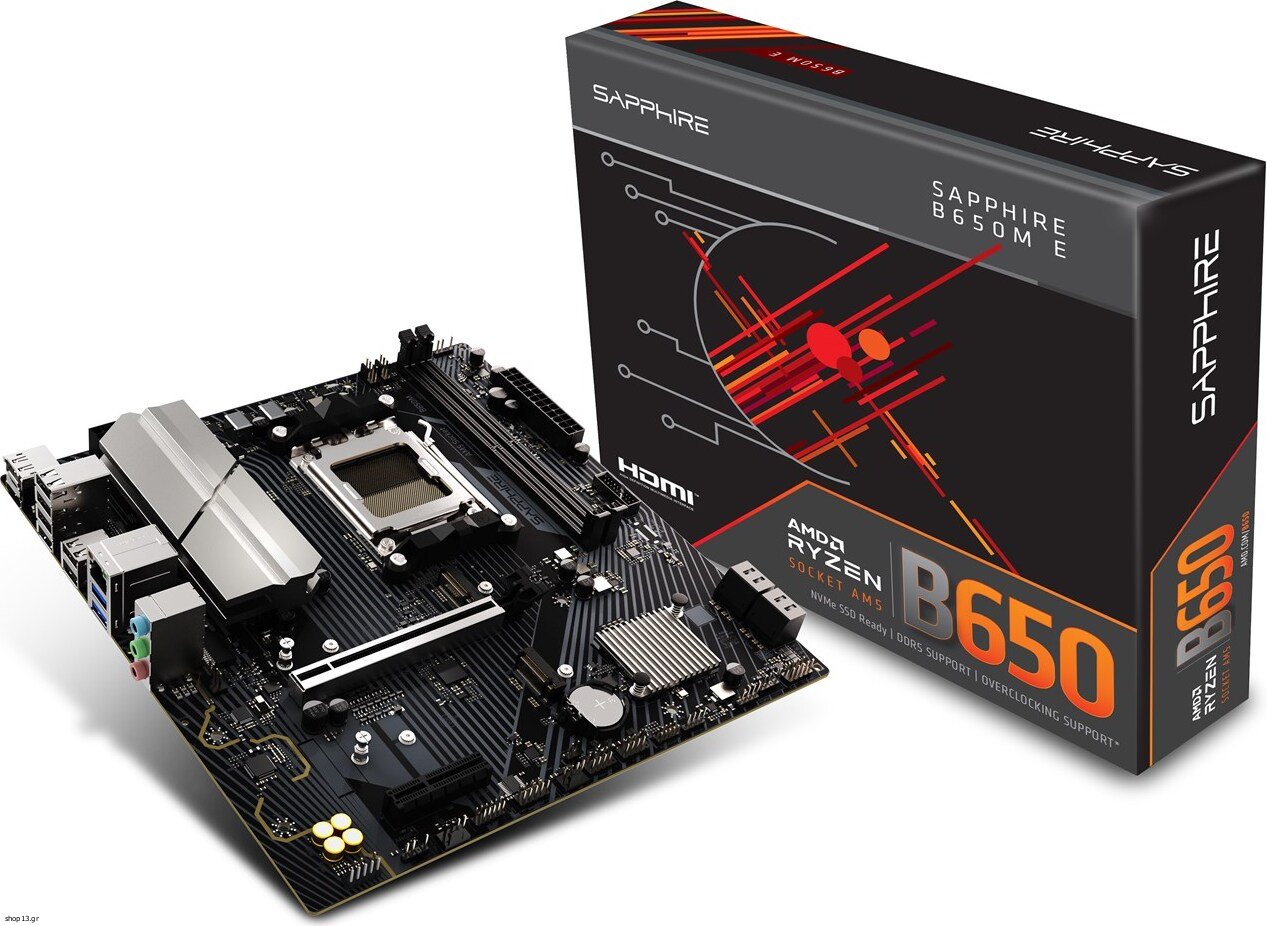

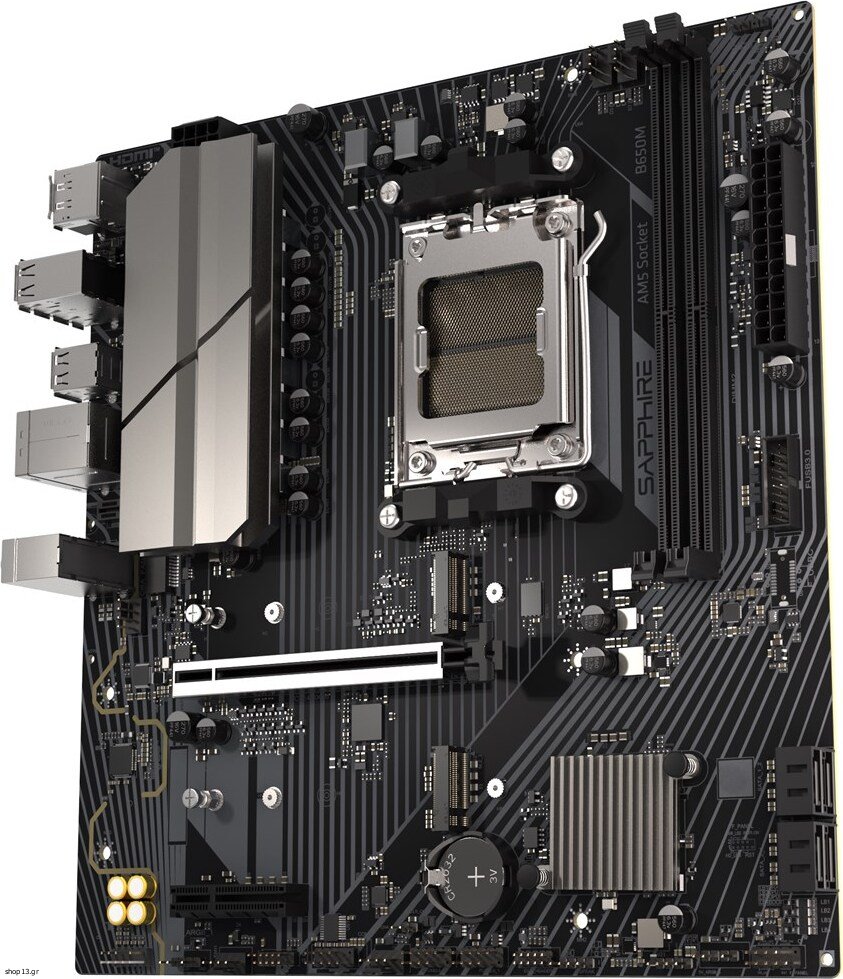

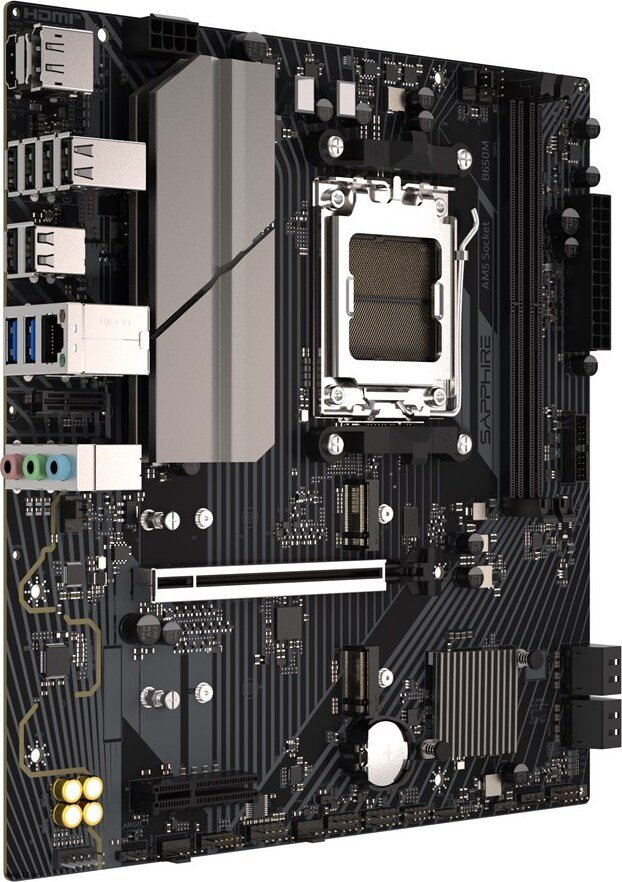

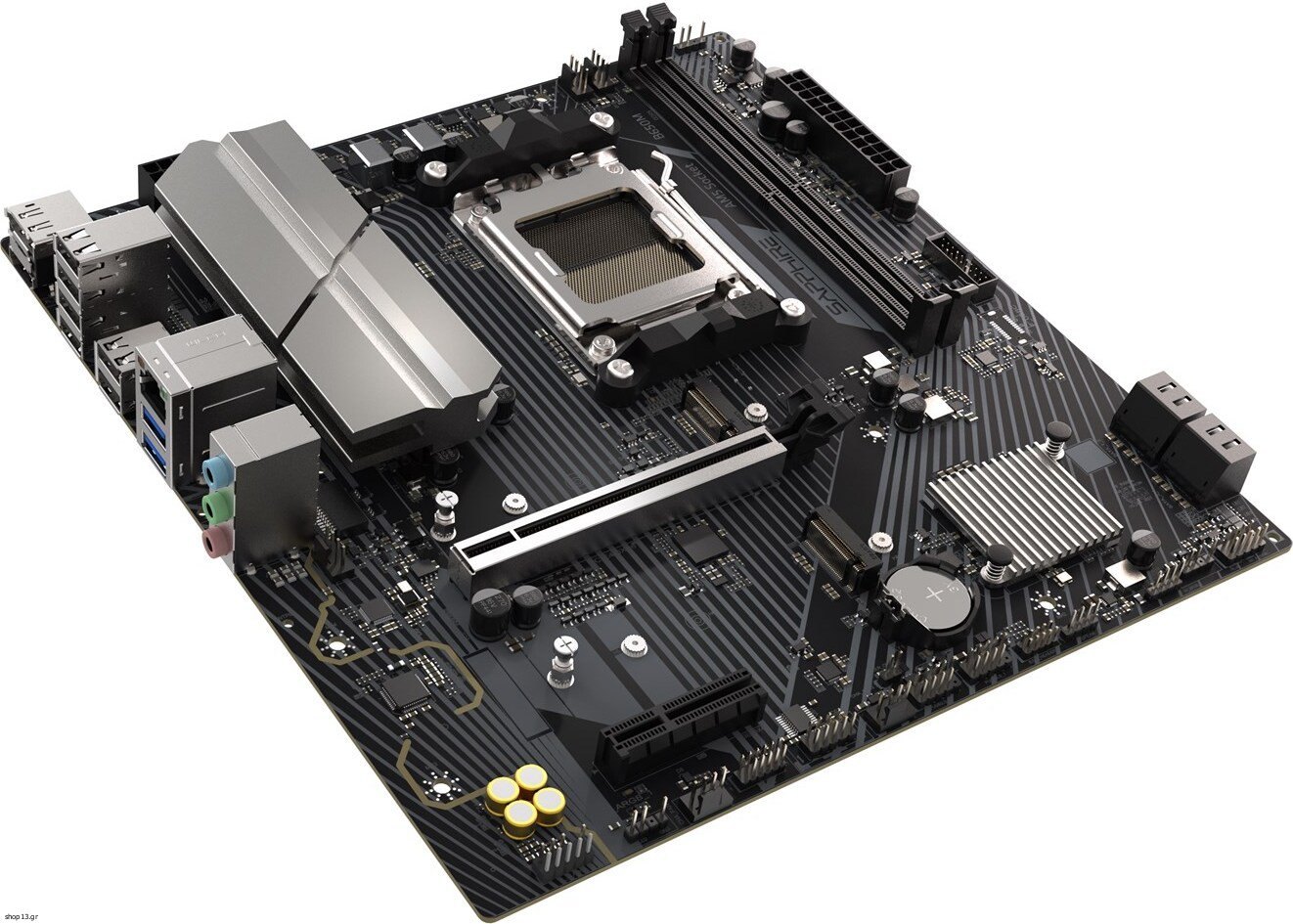

Sapphire B650M-E Motherboard - (52112-04-40G)

Processor
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Features
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Product colour: Black
Motherboard chipset: AMD B650
Audio chip: Realtek ALC897
Audio output channels: 5.1 channels

Memory
Maximum internal memory: 96 GB
Number of memory slots: 2
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM

Weight & dimensions
Depth: 235 mm
Width: 244 mm

Network
LAN controller: Realtek RTL8125-BG
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
USB 2.0 connectors: 2
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 6
USB connector type: USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Headphone outputs: 1
HDMI ports quantity: 1
Line-in: Yes
Microphone in: Yes

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0


Warranty: warranty 36 months
