Περιγραφή
Design
Form factor: Dome
Protection features: Weatherproof
Product colour: Black, White
Mounting type: Ceiling/wall
Power
Power source type: DC, PoE
DC output voltage: 12, 48
DC output current: 2 A
Power consumption (max): 12 W
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -10 - 55 °C
Management features
Reset button: Yes
Weight & dimensions
Height: 129 mm
Weight: 1.21 kg
Depth: 147 mm
Width: 228.2 mm
Network
Number of users: 20 user(s)
Networking standards: IEEE 802.1af
Bluetooth: No
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Ethernet LAN: Yes
Wi-Fi: No
User access level: Administrator, User
System requirements
Mobile operating systems supported: iOS, Android
Mac operating systems supported: Yes
Windows operating systems supported: Yes
Performance
Built-in light: Yes
Type: IP security camera
Connectivity technology: Wired
Luminous flux: 450 lm
Placement supported: Indoor & outdoor
Colour temperature: 6500 K
Day/night mode: Yes
Packaging data
Package width: 205 mm
Package weight: 1.76 kg
Package height: 190 mm
Package depth: 270 mm

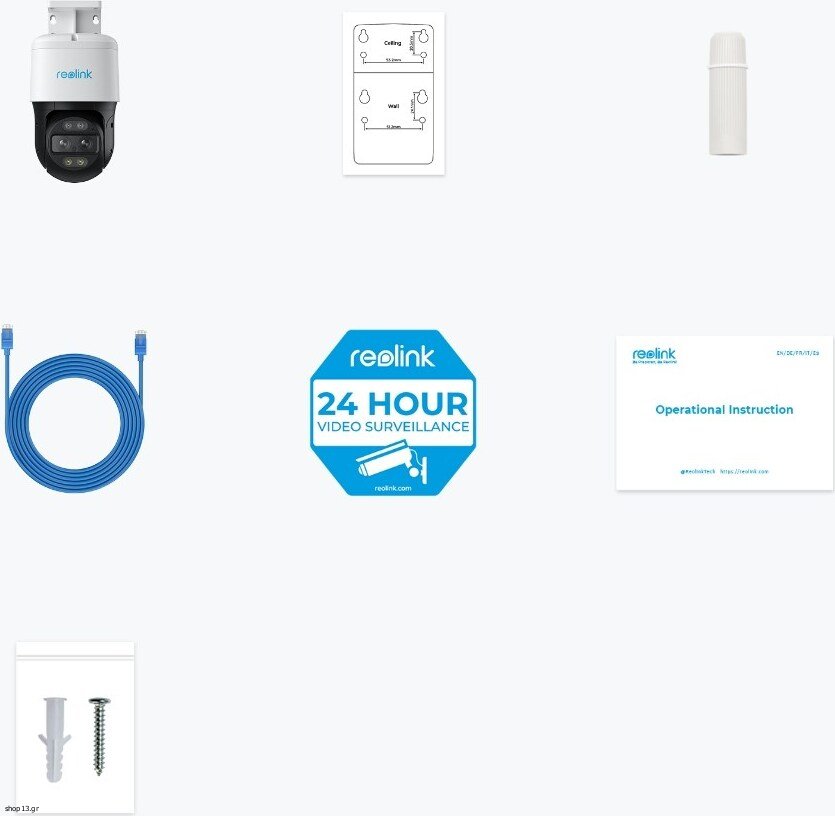

Packaging content
Mounting kit: Yes
Screws included: Yes
Cables included: LAN (RJ-45)
Number of cameras: 1
Audio
Audio system: 2-way
Built-in microphone: Yes
Built-in speaker(s): Yes
Storage
Built-in HDD: No
Maximum memory card size: 256 GB
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Camera tilt control: Yes
Tilt angle range: 0 - 90°
Tilt speed: 60 °/sec
Pan speed: 90 °/sec
Pan range: 0 - 355°
Camera pan control: Yes
Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")
Number of sensors: 2
Video
Video recording: Yes
Maximum resolution: 3840 x 2160 pixels
Supported graphics resolutions: 3840 x 2160
Total megapixels: 8 MP
Supported video modes: 2160p
Frame rate: 25 fps
Video compression formats: H.264, H.265
Night vision
Infra-red wavelength: 850 nm
Night vision: Yes
Night vision distance: 30 m
Number of illumination LEDs: 2
LED type: IR
Lens system
Maximum aperture number: 1.6
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Warranty: warranty 24 months
