Περιγραφή
Design
Product colour: Black
Form factor: Spherical
Mounting type: Ceiling
International Protection (IP) code: IP65
Power
DC output current: 1 A
Power consumption (max): 12 W
DC output voltage: 12
Power source type: DC
Security
Video motion detection: Yes
Security algorithms: WPA, WPA2
Human and vehicle targets classification: Yes
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -10 - 50 °C
Management features
Reset button: Yes
Weight & dimensions
Height: 120 mm
Diameter: 9 cm
Weight: 415 g
Network
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11b
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 20 user(s)
Live view: Yes
Bluetooth: No
Wi-Fi: Yes
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
User access level: Administrator, User
System requirements
Windows operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Mac operating systems supported: Yes
Performance
Connectivity technology: Wired & Wireless
Infrared (IR) cut-off filter: Yes
Type: IP security camera

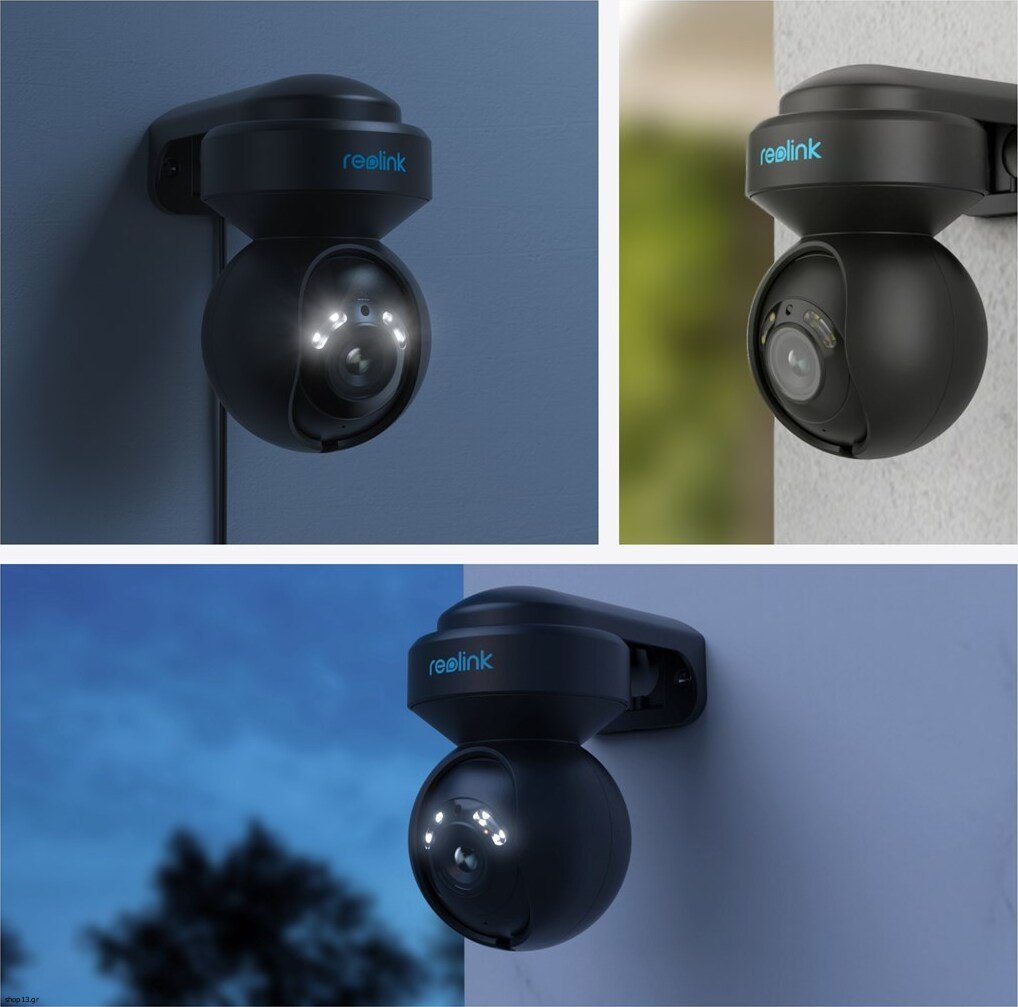

Placement supported: Indoor & outdoor
Virtual assistant: Google Assistant

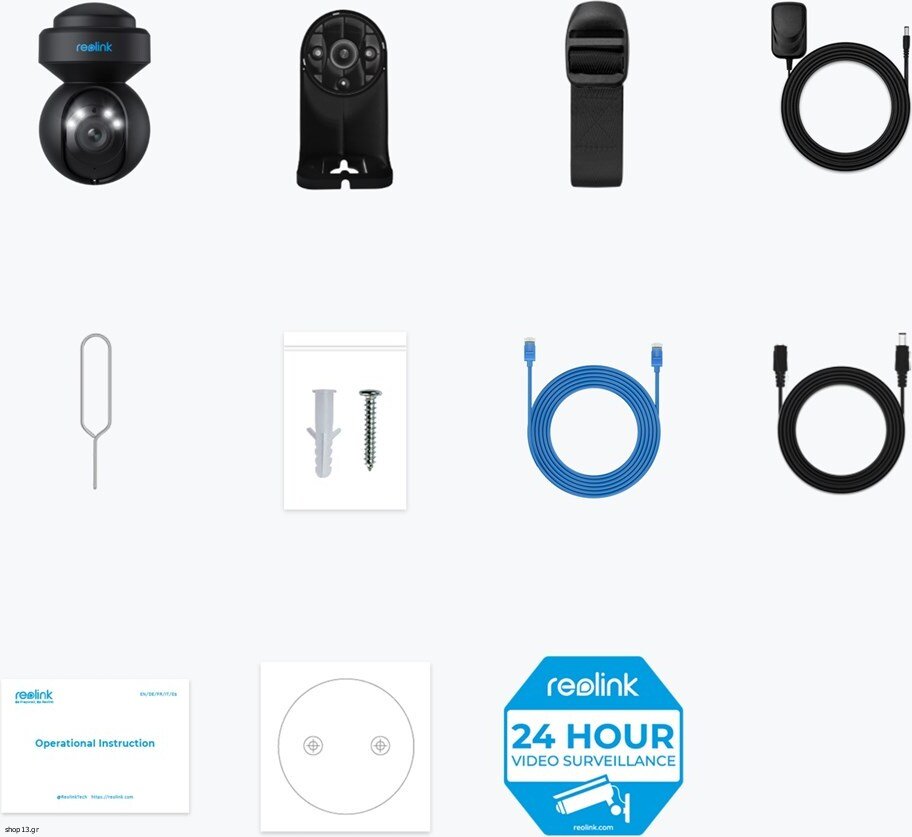

Packaging content
Manual: Yes
Number of cameras: 1
Mounting kit: Yes
Screws included: Yes
Audio
Built-in speaker(s): Yes
Built-in microphone: Yes
Audio system: 2-way
Storage
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
Ports & interfaces
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt angle range: 0 - 50°
Lens viewing angle, horizontal: 48 - 90°
Pan range: 0 - 355°
Lens viewing angle, vertical: 37 - 68°
Image sensor
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Video
Bit rate: 64 Kbps - 5120 Kbps
Video recording: Yes
Total megapixels: 5 MP
Video streaming: Yes
Video compression formats: H.264
Video formats supported: H.264
Frame rate: 20 fps
Supported graphics resolutions: 2560 x 1920
Maximum resolution: 2560 x 1920 pixels
Night vision
Number of illumination LEDs: 12
Night vision distance: 12 m
LED type: IR/White
Night vision: Yes
Infra-red wavelength: 850 nm
Lens system
Maximum aperture number: 1.6
Number of lenses: 1
Focal length range: 2.8 - 8 mm
Warranty: Manufacturer warranty 24 months
