Περιγραφή
Design
Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP67
Form factor: Dome
Power
Power consumption (max): 12 W
DC output voltage: 12, 48
DC output current: 1 A
Power source type: DC, PoE
Security
Video motion detection: Yes
Operational conditions
Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
Diameter: 13.3 cm
Weight: 751 g
Height: 98.3 mm
Network
Networking standards: IEEE 802.3af
Number of users: 20 user(s)
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
User access level: Administrator, User
Bluetooth: No
Wi-Fi: No
System requirements
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Windows operating systems supported: Yes
Performance
Type: IP security camera
Connectivity technology: Wired
Built-in light: Yes
Colour temperature: 6500 K
Infrared (IR) cut-off filter: Yes
Virtual assistant: Google Assistant
Placement supported: Indoor & outdoor

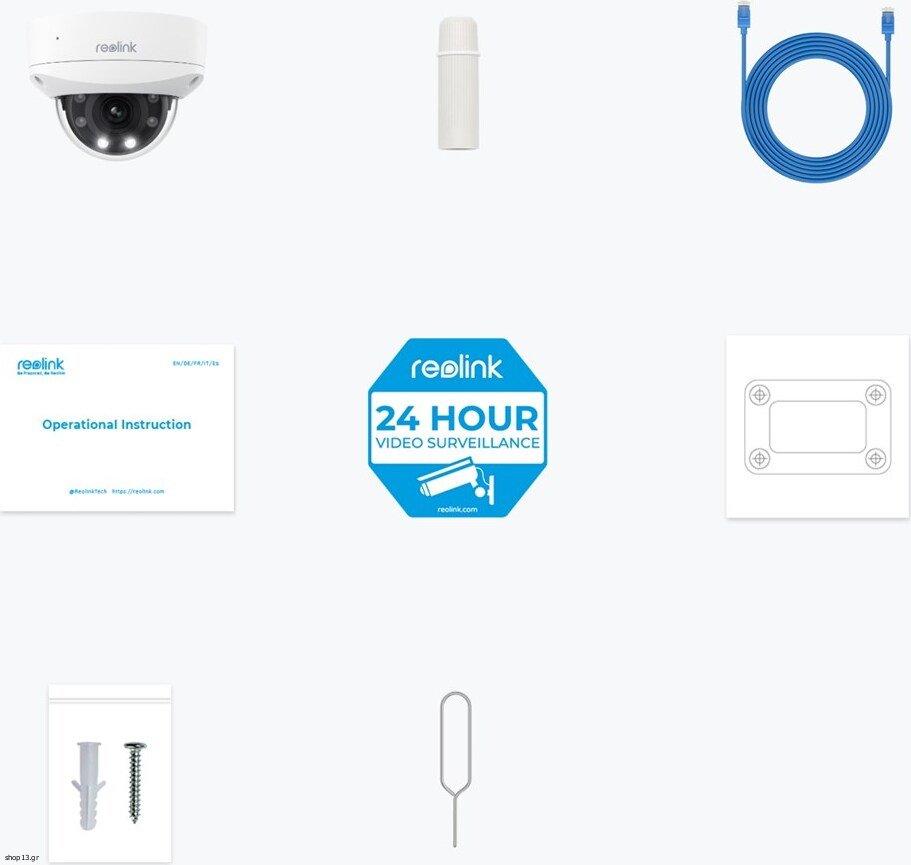

Packaging content
Number of cameras: 1
Mounting kit: Yes
Screws included: Yes
Audio
Built-in speaker(s): Yes
Built-in microphone: Yes
Audio system: 2-way
Storage
Maximum memory card size: 256 GB
Card reader integrated: Yes
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Lens viewing angle, diagonal: 39 - 123°
Lens viewing angle, horizontal: 31 - 100°
Lens viewing angle, vertical: 17 - 55°
Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Number of sensors: 1
Sensor type: CMOS
Video
Total megapixels: 8 MP
Supported video modes: 2160p
Frame rate: 25 fps
Maximum resolution: 3840 x 2160 pixels
Supported graphics resolutions: 3840 x 2160
Bit rate: 64 Kbps - 8192 Kbps
Video streaming: Yes
Video compression formats: H.265
Video formats supported: H.265
Video recording: Yes
Night vision
Number of illumination LEDs: 4
Night vision distance: 30 m
LED type: IR
Night vision: Yes
Infra-red wavelength: 850 nm
Lens system
Maximum aperture number: 1.6
Number of lenses: 1
Optical zoom: 5x
Zoom capability: Yes
Focal length range: 2.7 - 13.5 mm
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Warranty: warranty 24 months
