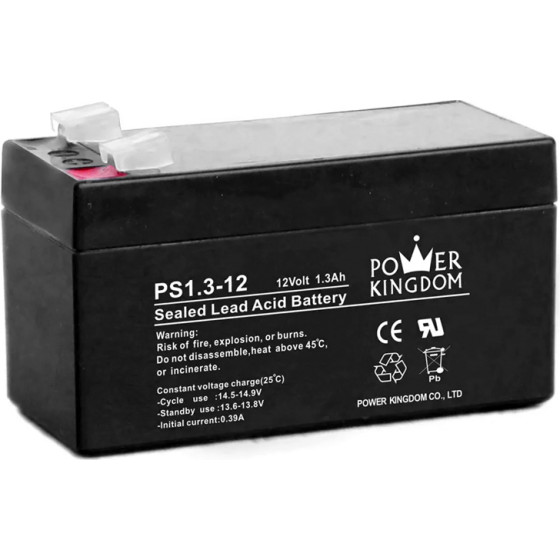

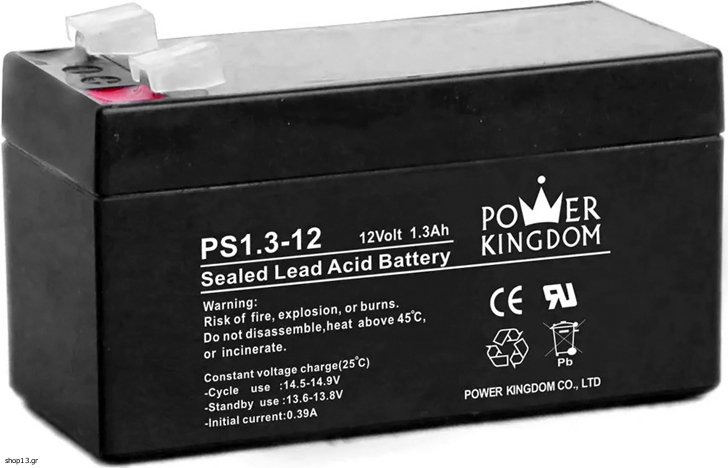

Power Kingdom μπαταρία μολύβδου 12VOlt 1.3Ah - (PS1.3-12)

POWER KINGDOM μπαταρία μολύβδου PS1.3-12, 12Volt 1.3Ah


Specifications


Nominal Voltage : 12V
Rated Capacity : 770F(250C) (20HR) : 1.3Ah


Dimensions (mm/inch) :
Length 97 (3.82)
Width 43 (1.69)
Height 52 (2.05)
Total Height 58 (2.28)


Approx. Weight (kg/Ibs) 0.6 (1.32)
Terminal T1-A


Characteristic


Capacity 770F(250C)
20HR (0.065A) : 1.30Ah
10HR (0.121A) : 1.21Ah
5HR (0.221A) : 1.10Ah
1HR (0.793A) : 0.79Ah
15 min rate (2.41A) : 0.60Ah


Internal Resistance
Full Charged Battery : 770F(250C)
Approx. : 85mΩ


Temperature
dependence of capacity : (20HR)
1040F(400C) : 102%
770F(250C) : 100%
320F(00C) : 85%
50F(-150C) : 65%


Self-Discharge : 680F(200C)
(Capacity after)
3 months : 90%
6 months : 80%
12 months : 60%


Max. Discharge Current, 77oF(250C) : 19A(5s)
Floating design life, 770F(250C) : 5 years


Constant Voltage
Charge,77oF : (250C)
Cycle : 14.5~14.9V(-24mV/0C) max. current: 0.39 A
Float : 13.6~13.8V(-18mV/0C)




Brand: POWER KINGDOM

Συσκευασία: Bulk
