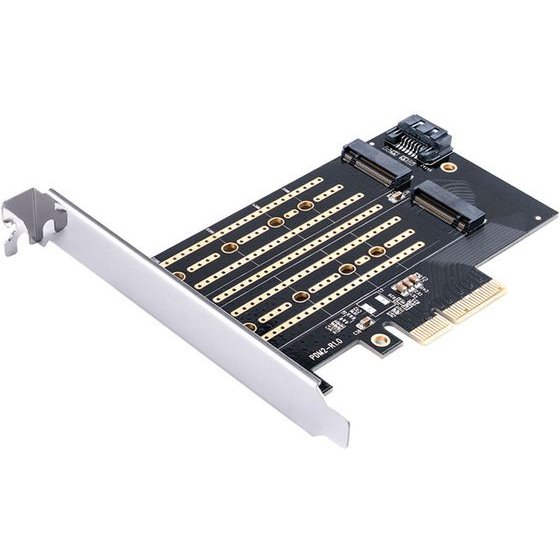

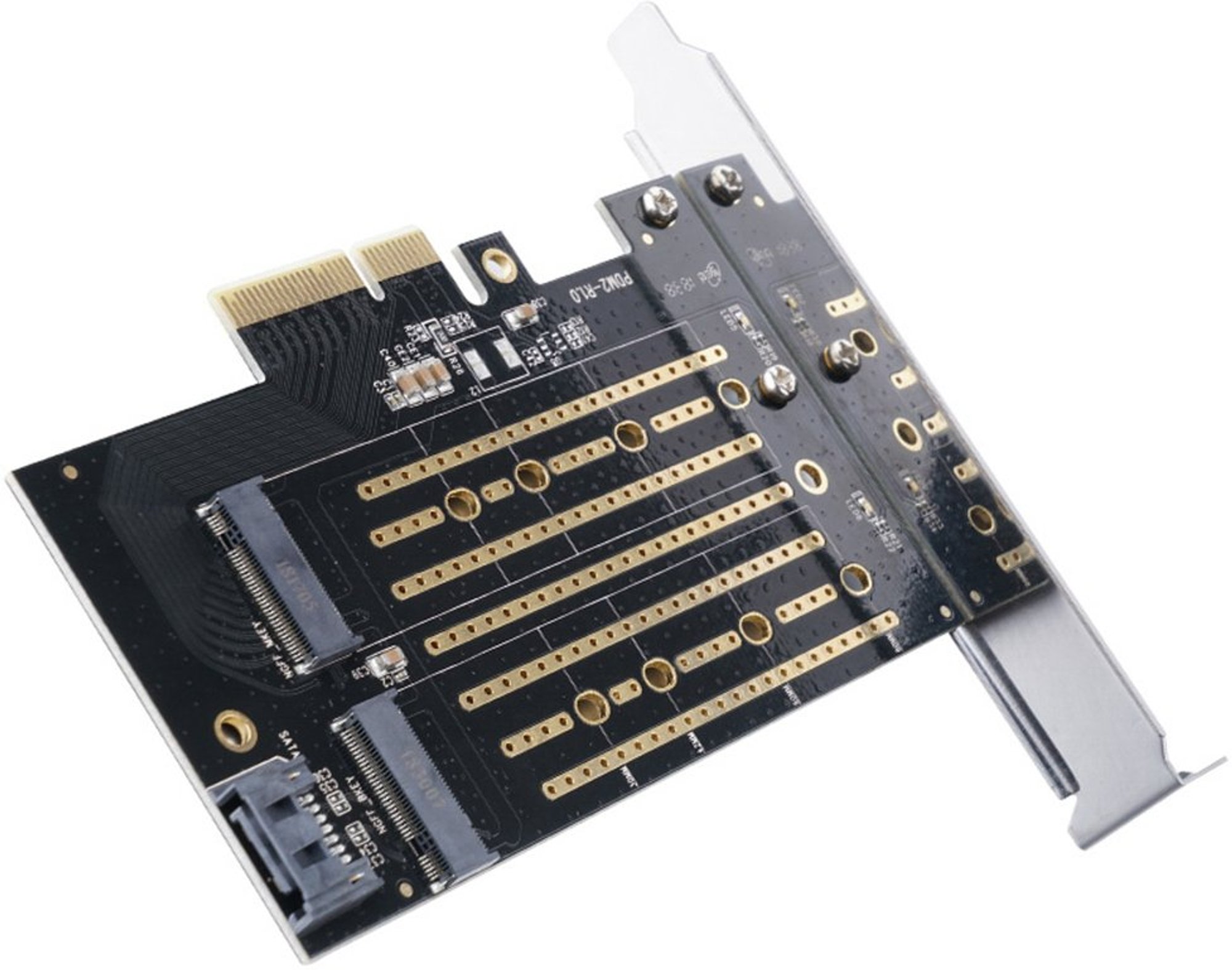

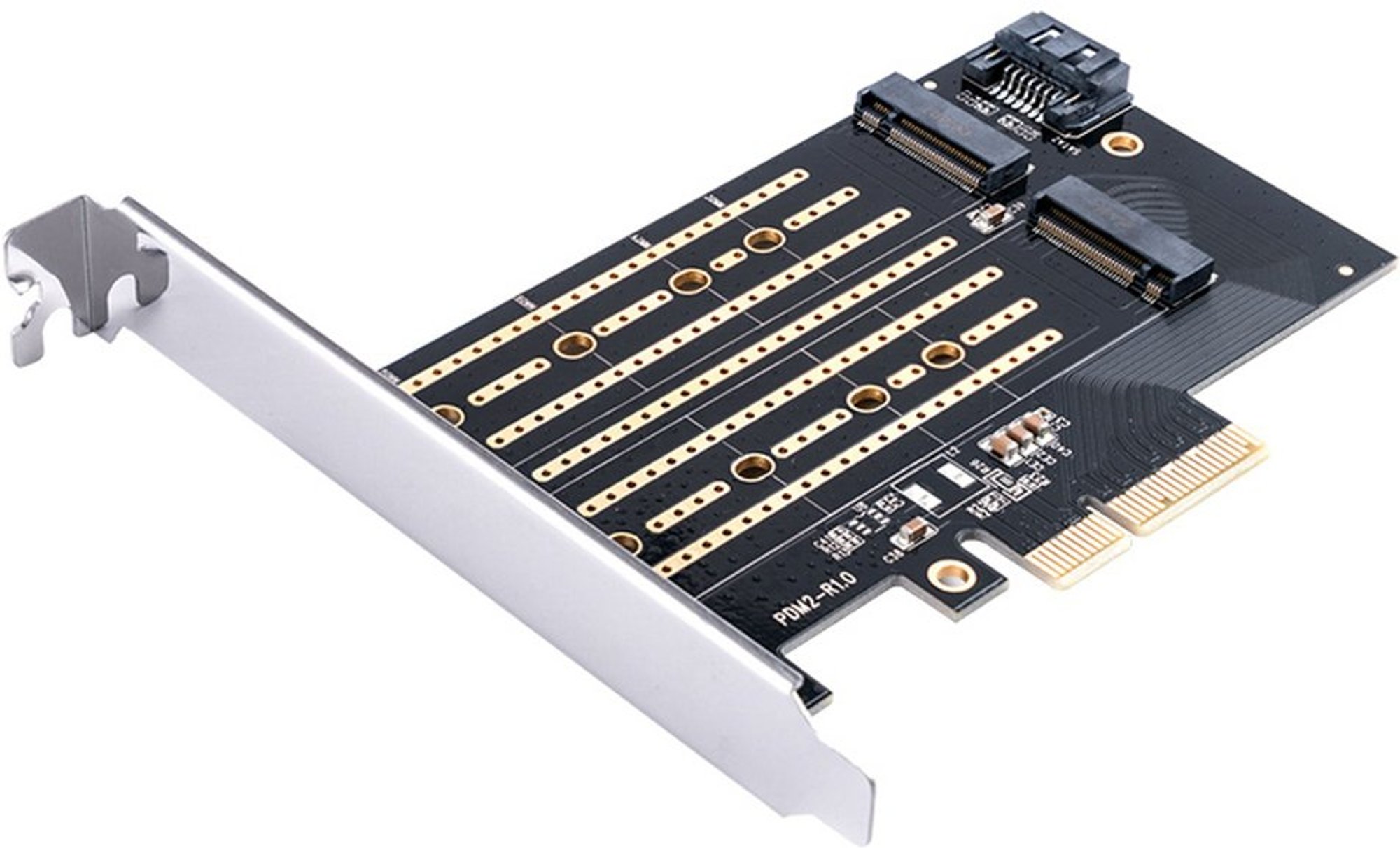

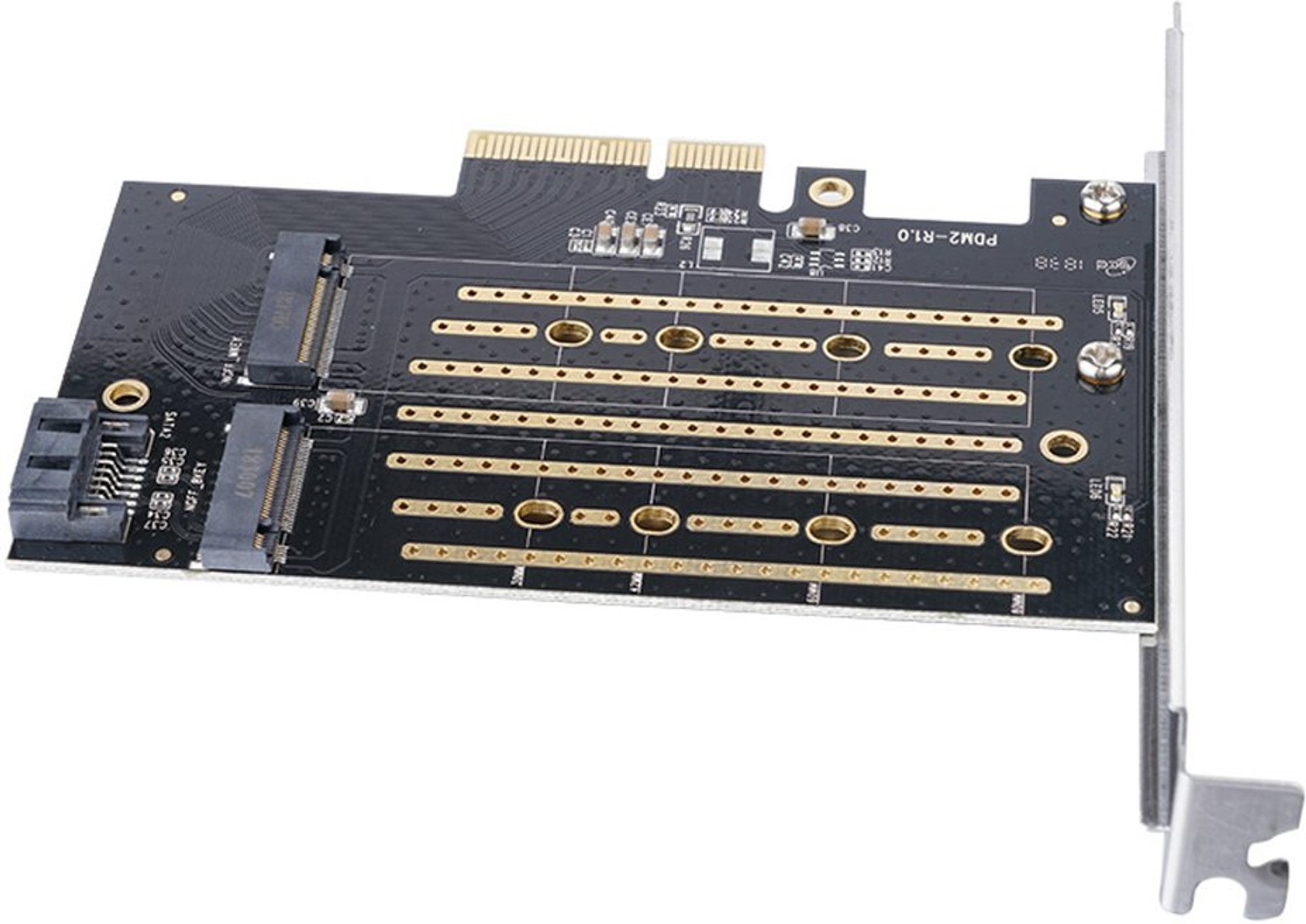

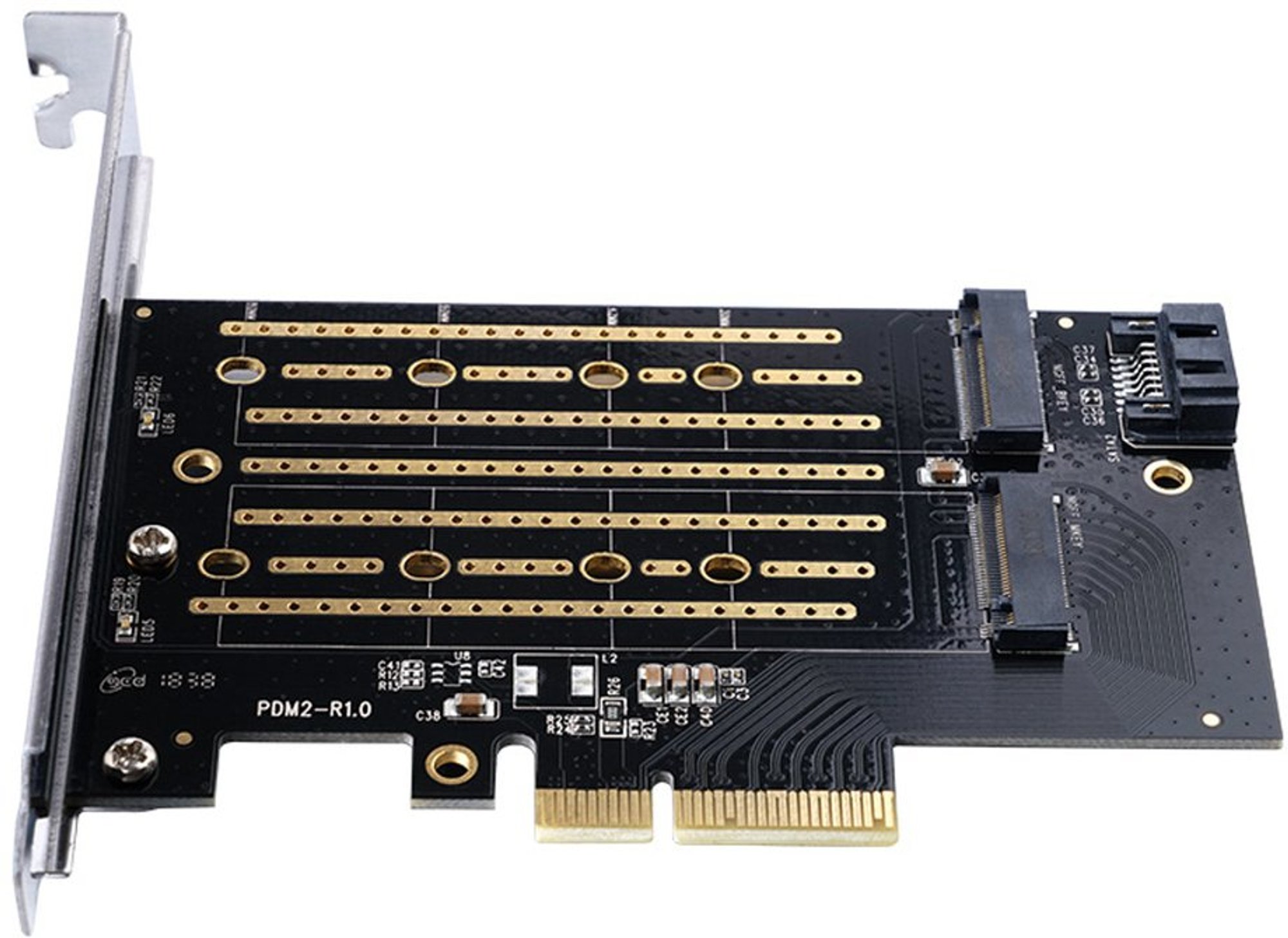

Orico PDM2 PCI-E 3.0 x4 Expansion Card for M.2 NVMe and SATA Drives - Black The Orico PDM2 lets you install two M.2 drives in your desktop computer and utilize a free PCI-E slot for storage expansion. The card supports both NVMe and SATA drives, providing great flexibility when upgrading your computer. The PCI-E 3.0 x4 interface enables theoretical throughput of up to 32 Gbps for NVMe drives, while compatibility with 2230, 2242, 2260, and 2280 formats makes it easy to adapt to a variety of storage devices. A carefully designed design with heat dissipation vents promotes stable operation even during heavy use. This is a practical solution for those looking to add additional high-speed storage to their computer.
~
Specification:
Manufacturer: Orico
Model: Orico PDM2
Input interface: PCI-E 3.0 Gen3 x4
Supported drives: M.2 NVMe and M.2 SATA
Key types: B-Key, M-Key, B+M Key
Supported SSD formats: 2230 / 2242 / 2260 / 2280
Transfer speed: up to 32 Gbps (NVMe), up to 6 Gbps (SATA)
Maximum capacity: Up to 2 TB per drive, up to 4 TB total
Compatibility: Windows, macOS, Linux
Mounting: screw mounting
Herring material: stainless steel
Color: black
~
The most important advantages of the Orico PDM2 card:
Dual M.2 drive support: Lets you expand your computer's storage.
NVMe and SATA Compatibility: Works with two popular SSD protocols.
Transfer rates up to 32 Gbps: allows you to utilize the potential of fast NVMe drives.
Multi-format support: Fits 2230, 2242, 2260 and 2280 media.
Cooling Support Design: Helps keep drives running stably.
~
Two M.2 slots for increased expandability The card features two independent M.2 connectors, allowing you to mount two SSDs in a single adapter. This solution is ideal for expanding your computer's memory with additional storage devices without having to replace existing drives.
NVMe and SATA protocol support for flexibility The Orico PDM2 works with both NVMe and SATA M.2 drives. Support for B-Key, M-Key, and B+M Key allows for a wide range of compatible drives and simplifies PC upgrades.
PCI-E 3.0 x4 bandwidth supports fast data transfer The PCI-E 3.0 Gen3 x4 interface provides theoretical bandwidth of up to 32 Gbps for NVMe drives and up to 6 Gbps for SATA drives. Thanks to its direct connection to the motherboard, the card lets you take advantage of the capabilities of modern SSDs.
Compatible with popular SSD sizes The adapter supports M.2 media in 2230, 2242, 2260, and 2280 formats. Multi-position mounting points allow for secure attachment of various drive lengths and easy configuration adjustment to suit your needs.
A design that supports stable disk operation The board is equipped with numerous copper heat-dissipating traces and a solid steel mounting bracket. This solution improves heat dissipation and supports reliable operation during everyday computer use.
