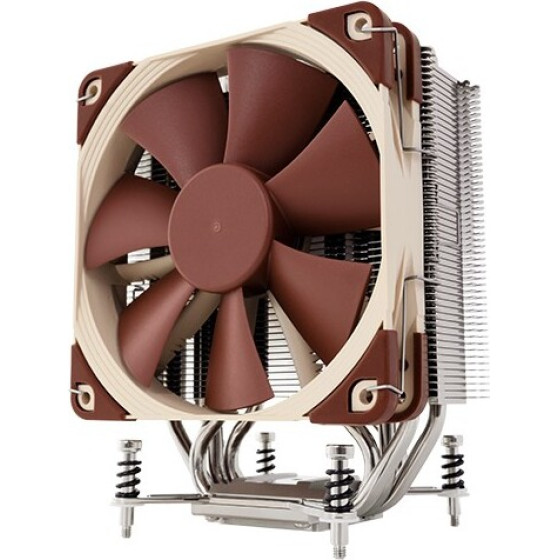

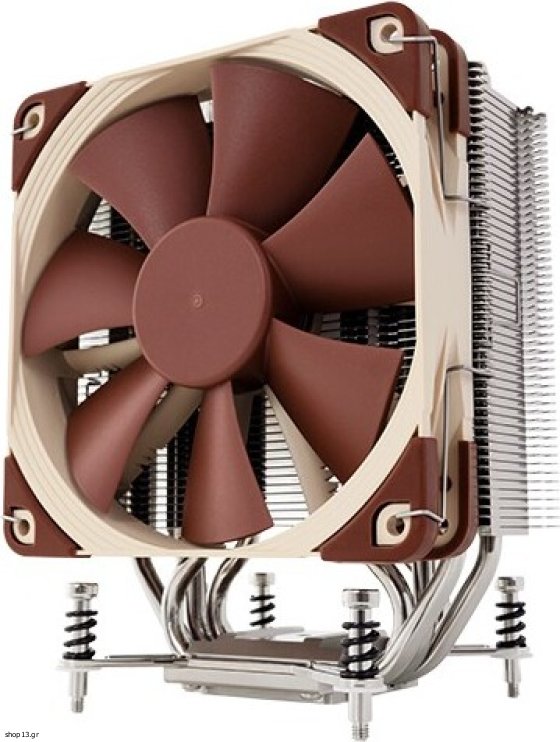

Noctua CPU Cooler NH-U12DX i4 - LGA2011(square/narrow)/LGA1356/LGA1366 - (NH-U12DX-i4)

Noctua'sDX line of coolers has become a default choice in high performance quiet cooling solutions for Intel Xeon CPUs. The latest i4 revision supports LGA2011 (both Square ILM and Narrow ILM), LGA1356 and LGA1366 based Xeon platforms and the 12cm model NH-U12DX i4 comes equipped with Noctua’s award-winning NF-F12Focused Flow(TM) fan with PWM for automatic speed control. Due to its slimdesign, the NH-U12DX i4 now provides easy access to the memory slots and better compatibility with tall modules. Fitted with the professionalSecuFirm2(TM) mounting system and bundled with Noctua's industrial-grade NT-H1thermal compound, the NH-U12DX i4 forms a complete premium quality package for quietly cooling Xeon based workstations and servers.



Award-winning NH-U12 series
TheNH-U12DX i4 is based on the latest version of Noctua’s award-winning NH-U12 coolers. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.



Easier access to RAM
Thanksto its slim design with only 45mm fin depth, the NH-U12DX i4 ensures easy access to the RAM slots. When installed parallel to the slots, it will not overhang the memory on LGA1356, LGA1366 and LGA2011 Square ILM even with two fans installed, thus providing full compatibility with tall RAM heatsinks.


NF-F12 120mm Focused Flow(TM) fan
Recommendedby more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua’s premium quality NF-F12 Focused Flow(TM) 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.


PWM support and Low-Noise Adaptor
TheNF-F12 120mm fan supplied with the NH-U12DX i4 supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.



Anti-vibration pads and fan-clips for second NF-F12 (optional)
Forusers who want to achieve even better performance by adding a second, optional NF-F12 fan to create a push/pull setup, the NH-U12DX i4 includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.



SecuFirm2(TM) mounting system
Noctua’sSecuFirm2(TM) mounting systems have become synonymous with quality, safetyand ease of use. Supporting Intel’s LGA2011 (both Square and Narrow ILM), LGA1356 and LGA1366 Xeon platforms, the SecuFirm2(TM) mounting included with the NH-U12DX i4 guarantees perfect contact pressure and maximum convenience on all sockets.


NT-H1 thermal compound
Havingreceived more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.


6 years warranty
Noctuaproducts are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-F12 features an MTBF rating of more than 150.000 hours and the entire NH-U12DX i4 package comes with a full 6 years manufacturer’s warranty.







Socket compatibility


Intel LGA2011-0 & LGA2011-3 (Square ILM & Narrow ILM), LGA1356, LGA1366 (wtih Xeon backplate)






Height (without fan)


158 mm






Width (without fan)


125 mm






Depth (without fan)


45 mm






Height (with fan)


158 mm






Width (with fan)


125 mm






Depth (with fan)


71 mm






Weight (without fan)


580 g






Weight (with fan)


755 g






Material


Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating






Fan compatibility


120x120x25






Scope of Delivery


NF-F12 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2(TM) Mounting Kit
Anti-vibration pads and fan-clips for second NF-F12







Warranty


6 Years








Fan specifications









Model


Noctua NF-F12 PWM






Bearing


SSO2






Max. Rotational Speed (+/- 10%)


1500 RPM






Max. Rotational Speed with L.N.A. (+/- 10%)


1200 RPM






Min. Rotational Speed (PWM, +/-20%)


300 RPM






Max. Airflow


93,4 m³/h






Max. Airflow with L.N.A.


74,3 m³/h






Max. Acoustical Noise


22,4 dB(A)






Max. Acoustical Noise with L.N.A.


18,6 dB(A)






Input Power


0,6 W






Voltage Range


12 V






MTBF


> 150.000 h
MANUFACTURER: Noctua
TYPE OF COOLING: Air
COMPATIBILITY - INTEL: LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1366, LGA 2011-0, LGA 2011-3, Server LGA 1356, Server LGA 2011 - Narrow ILM
COOLING CAPACITY: http://noctua.at/en/tdp-guide
FAN SIZE: 120 x 120 x 25 mm
BEARING TYPE: SSO2 Bearing
RPM: 300 RPM, 1500 RPM
CONNECTOR: 4 pin PWM
AIRFLOW: 54.97 CFM / 93.4 m3/h
NOISE LEVEL (MAX): 22.4 dBA
DIMENTIONS: D71 x W125 x H158mm
OTHERS: 5 nickel plating cooper heatpipes, Option for mounting a second fan, full cooper base
WEIGHT: 755 g
