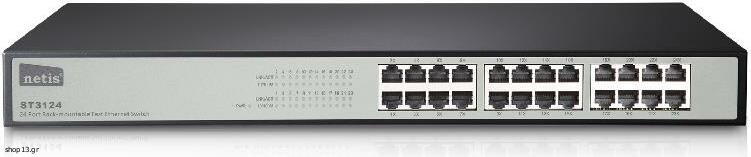

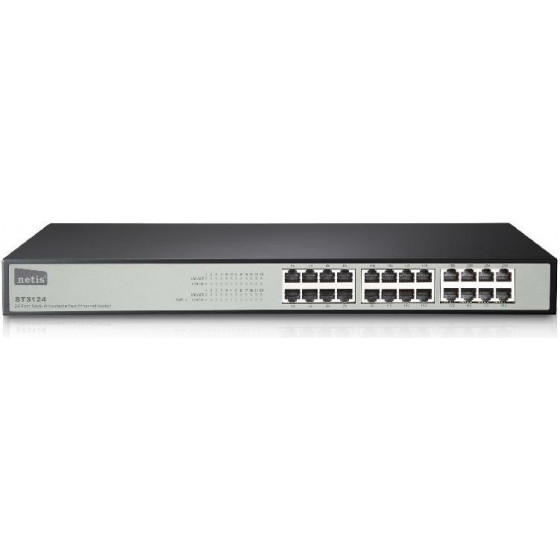

Netis Switch 24-Port 10/100MBps Rack Mount - (68-3124)

ST3124 (ST-3115)

What it does
The netis ST3124 Fast Ethernet Rackmount Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports .It is ideal for the small and medium office use. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports. The 24 Port Fast Ethernet Rackmount Switch provides you with high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer.

Hardware
Interface
24 * 10/100M RJ45 port, Auto-Negotiation, Auto MDI/MDIX
LED
PWR, 1-24 10/100M, 1-24 LINK/ACT
Power Supply
100-240 V AC/50-60Hz
Dimensions (L x W x H )
432 x 200 x 44 mm
Switching Features
Standard
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3x Flow Control, IEEE 802.3az
Access Method
CSMA/CD
Transmission Method
Store and Forward
Switch Architecture
Non-blocking
Data Transmission Rate
10/100Mbps(Half-duplex)
20/200Mbps(Full-duplex)
Switching Fabric Capacity
4.8Gbps
Built-in Buffer
2M bits
Jumbo Frame
2KB
MAC Address Table
8K
Others
Certification
FCC, CE, BSMI
Environment
Operating Temperature: 0?~40?
Storage Temperature: -20?~70?
Operating Humidity: 5%~90% non-condensing S
torage Humidity: 5%~90% non-condensing
Package
1 * ST3124
1 * Quick Installation Guide
2 * Brackets
1 * Power Cord
PORTS
24
ΤΑΧΥΤΗΤΑ
100Mbits
ΤΥΠΟΣ SWITCH
RACK MOUNT
