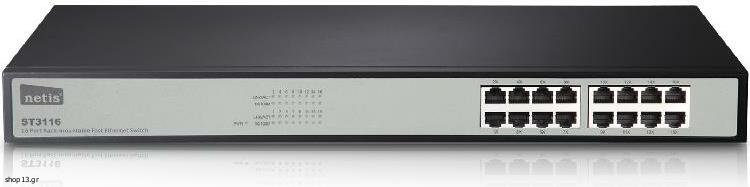

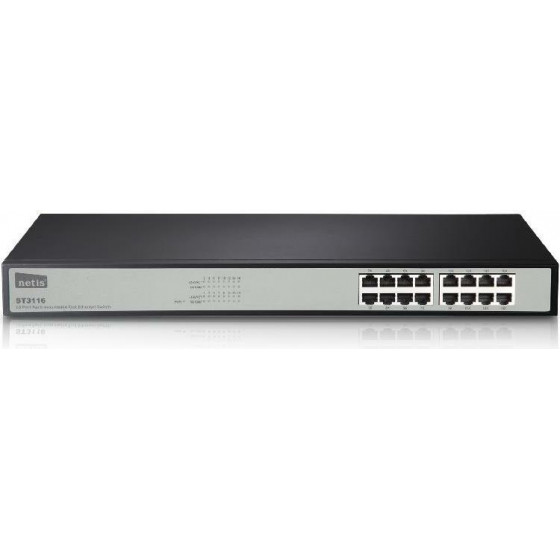

Netis Switch 16-Port 10/100MBps Rack Mount - (68-3116)

The netis ST3116 Fast Ethernet Rackmount Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports .It is ideal for the small and medium office use. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports. The 16 Port Fast Ethernet Rackmount Switch provides you with high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network.
Hardware
Interface
16 * 10/100M RJ45 port, Auto-Negotiation, Auto MDI/MDIX
LED
PWR, 1-16 10/100M, 1-16 LINK/ACT
Power Supply
100-240 V AC/50-60Hz
Dimensions (L x W x H )
432 x 200 x 44 mm
Switching Features
Standard
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3x Flow Control, IEEE 802.3az
Access Method
CSMA/CD
Transmission Method
Store and Forward
Switch Architecture
Non-blocking
Data Transmission Rate
10/100Mbps(Half-duplex)
20/200Mbps(Full-duplex)
Switching Fabric Capacity
3.2Gbps
Built-in Buffer
1.25M bits
Jumbo Frame
2KB
MAC Address Table
8K
Others
Certification
FCC, CE, BSMI
Environment
Operating Temperature: 0?~40?
Storage Temperature: -20?~70?
Operating Humidity: 5%~90% non-condensing S
torage Humidity: 5%~90% non-condensing
Package
1 * ST3116
1 * Quick Installation Guide
2 * Brackets
1 * Power Cord
PORTS
16
ΤΑΧΥΤΗΤΑ
100Mbits
ΤΥΠΟΣ SWITCH
RACK MOUNT
