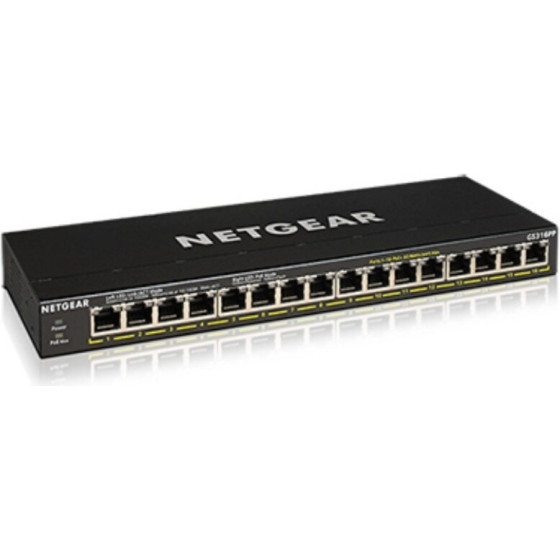

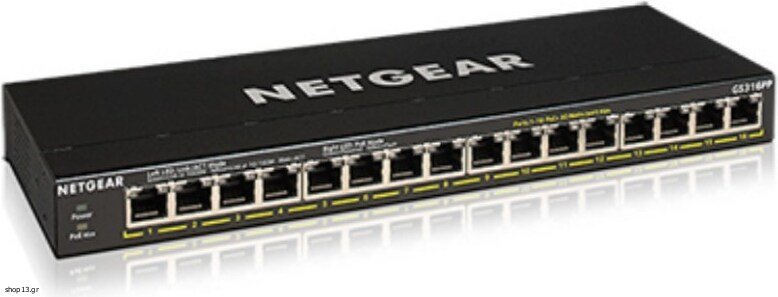

NETGEAR GS316PP Unmanaged Gigabit Ethernet (10/100/1000) Power Over Ethernet (PoE) Black - (GS316PP-100EUS)

Design
Product colour: Black
LED indicators: Activity, Power, Speed, Link, PoE
Housing material: Metal
Wall mountable: Yes
Rack mounting: No

Power
Power consumption (max): 195.9 W
Input current: 3.7 A
DC input voltage: 54 V

Security
Queue scheduling algorithms: Weighted Round Robin (WRR)

Operational conditions
Storage temperature (T-T): -20 - 70 °C
Operating altitude: 0 - 3000 m
Operating relative humidity (H-H): 0 - 90%
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 669.9 BTU/h

Management features
Quality of Service (QoS) support: Yes
Switch type: Unmanaged

Weight & dimensions
Weight: 880 g
Width: 286 mm
Depth: 102 mm
Height: 27 mm

Network
Flow control support: Yes
10G support: No
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3i
Auto-negotiation: Yes
Full duplex: Yes
Auto MDI/MDI-X: Yes
Auto-sensing: Yes

Performance
Mean time between failures (MTBF): 2362192 h

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 16
Power connector: DC-in jack

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 4000 entries
Switching capacity: 32 Gbit/s
Latency (1 Gbps): 3.7 μs
Jumbo frames support: Yes
Packet forwarding rate (1 Gbps): 1448000 pps
Jumbo frames: 9216
Packet buffer memory: 1 MB

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 183 W
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W


Warranty: Manufacturer warranty 36 months
