Περιγραφή
Design
Product colour: Black
LED indicators: Link, Power, Activity
Rack mounting: No
Housing material: Metal
Wall mountable: Yes
Power
Power consumption (max): 2.15 W
Operational conditions
Operating relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 7.35 BTU/h
Storage temperature (T-T): -20 - 70 °C
Management features
Quality of Service (QoS) support: Yes
Switch layer: L2
Switch type: Unmanaged
Weight & dimensions
Depth: 94 mm
Weight: 250 g
Width: 101 mm
Height: 29 mm
Network
Networking standards: IEEE 802.3az, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T, 100BASE-TX
Auto-sensing: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes
10G support: No
Cable length detection: Yes
Performance
Mean time between failures (MTBF): 3831422 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5

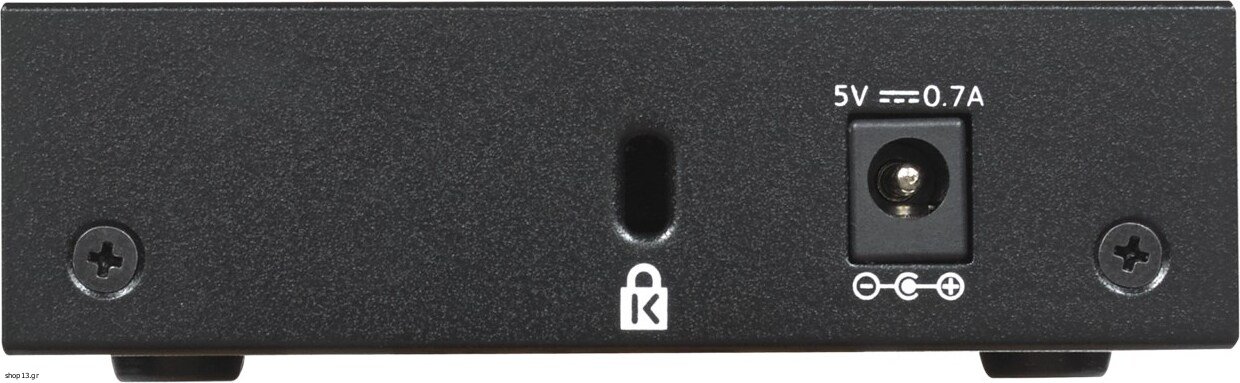

Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
Logistics data
Harmonized System (HS) code: 85176990
Data transmission
Jumbo frames: 9216
Forwarding rate: 1.448 Mpps
Jumbo frames support: Yes
MAC address table: 2000 entries
Packet buffer memory: 128 MB
Latency (1 Gbps): 2.6 μs
Switching capacity: 10 Gbit/s
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Warranty: Manufacturer warranty 36 months
