Περιγραφή
Design
LED indicators: Power, PoE, Activity, Link, Speed, LAN
Product colour: Grey
Rack mounting: No
Power
AC input frequency: 50 - 60 Hz
DC input voltage: 54 V
Input current: 1.25 A
Power consumption (max): 15.1 W
AC input voltage: 100 - 240 V
Power supply included: Yes
Security
Access Control List (ACL) IPv6 entries: 100
MAC address filtering: Yes
Security algorithms: 802.1x RADIUS
DHCP features: DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating altitude: 0 - 3000 m
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -20 - 70 °C
Non-operating altitude: 0 - 3000 m
Heat dissipation: 237.38 BTU/h
Operating relative humidity (H-H): 0 - 95%
Management features
Switch layer: L2/L3/L4
Web-based management: Yes
Quality of Service (QoS) support: Yes
ARP inspection: Yes
Switch type: Managed
Weight & dimensions
Weight: 610 g
Depth: 101 mm
Height: 27 mm
Width: 236 mm
Network
Networking standards: IEEE 802.3x, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3af, IEEE 802.3z, IEEE 802.3u
Link aggregation: Yes
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T, 100BASE-TX
Flow control support: Yes
Spanning tree protocol: Yes
Rate limiting: Yes
Port mirroring: Yes
Number of VLANs: 64
Full duplex: Yes
Broadcast storm control: Yes
MAC address auto-learning supported: Yes
Performance
Mean time between failures (MTBF): 1200041 h
Internal memory: 128 MB
Memory type: RAM
Flash memory: 32 MB
Processor frequency: 500 MHz
Packaging data

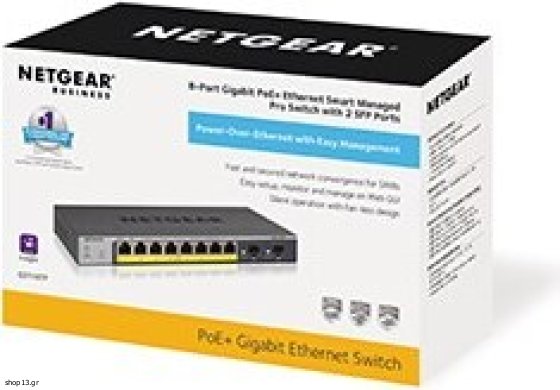

Package type: Box
Package depth: 267 mm
Package height: 86 mm
Package width: 161 mm
Manual: Yes
Package weight: 1.49 kg
Protocols
Switching protocols: SNMP
Management protocols: SNMP
Data link protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Supported network protocols: HTTP, HTTPS
Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 8
Logistics data
Products per master (outer) case: 6 pc(s)
Master (outer) case height: 309 mm
Master (outer) case gross weight: 9.73 kg
Harmonized System (HS) code: 85176990
Master (outer) case length: 350 mm
Master (outer) case width: 274 mm
Data transmission
MAC address table: 8000 entries
Store-and-forward: Yes
Switching capacity: 20 Gbit/s
Jumbo frames support: Yes
Packet buffer memory: 0.5 MB
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 69.5 W
Power over Ethernet (PoE) power per port: 55 W
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE): Yes
Multicast features
Multicast support: Yes
Number of multicast groups filtered: 256
IPv4 multicast entries: 32
Warranty: Lifetime warranty
