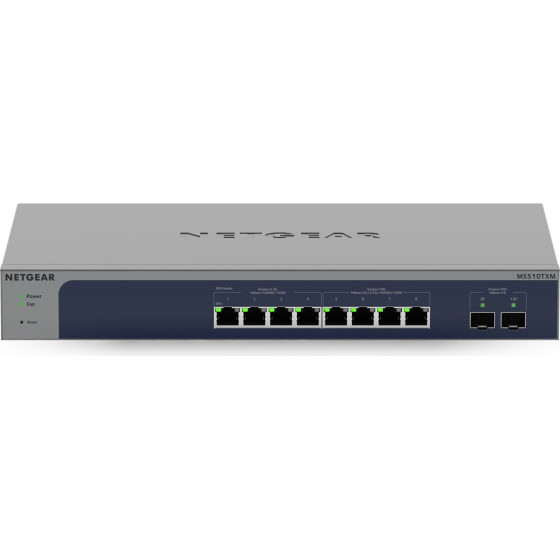

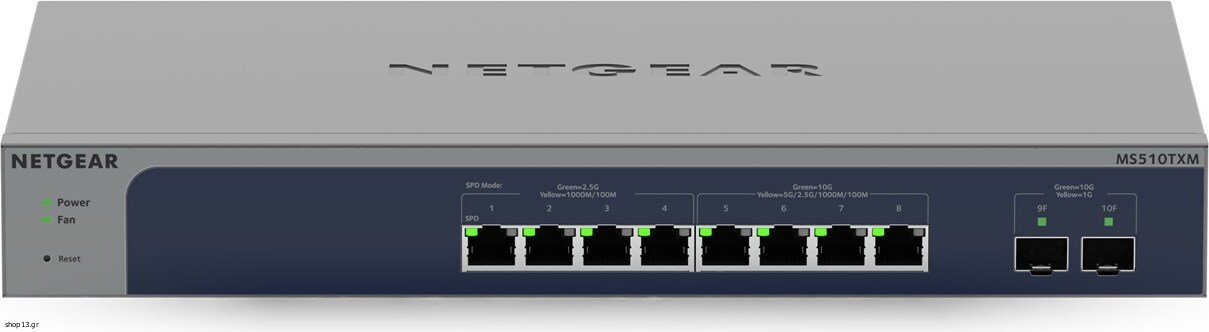

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch With 2 SFP+ Ports (MS510TXM) - (MS510TXM-100EUS)

Design
LED indicators: Speed, Fan fail, Power, Link, Activity
Number of fans: 2 fan(s)
Product colour: Grey
Rack mounting: Yes

Power
Power consumption (max): 47 W
Power source: AC
Power supply included: Yes

Security
Password protection: Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
Queue scheduling algorithms: WRR+SP
DHCP features: DHCPv6 snooping

Operational conditions
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -20 - 70 °C
Operating temperature (T-T): 0 - 50 °C
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 160.458 BTU/h
Non-operating altitude: 0 - 3000 m

Management features
Quality of Service (QoS) support: Yes
Switch layer: L2+
Web-based management: Yes
System event log: Yes
Cloud-managed: Yes
Switch type: Managed

Weight & dimensions
Weight: 2.08 kg
Depth: 206 mm
Width: 330 mm
Height: 43 mm

Network
Networking standards: IEEE 802.3az, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.1x, IEEE 802.1ab, IEEE 802.1p
Number of VLANs: 256
Port mirroring: Yes
10G support: Yes
Broadcast storm control: Yes
VLAN support: Yes

Performance
Noise level: 25 dB
Built-in processor: Yes
Processor frequency: 1000 MHz
Firmware upgradeable: Yes
Mean time between failures (MTBF): 1059519 h
Internal memory: 256 MB
Flash memory: 64 MB

Packaging data
Rack rails: Yes
Cables included: AC
User guide: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 8

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Jumbo frames support: Yes
Switching capacity: 140 Gbit/s
Jumbo frames: 10000
Number of queues: 8
Packet buffer memory: 2 MB
MAC address table: 32000 entries

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
Number of multicast groups filtered: 256


Warranty: Lifetime warranty
