Περιγραφή
Οθόνη ενδείξεων για σειρά DR.
Ενδείξεις τάσης, ρεύματος, κιλοβατωρών.
Εύκολη ρύθμιση.
Σύνδεση μέσω RS485.

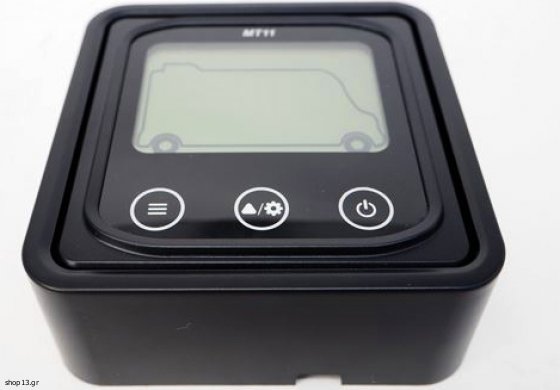

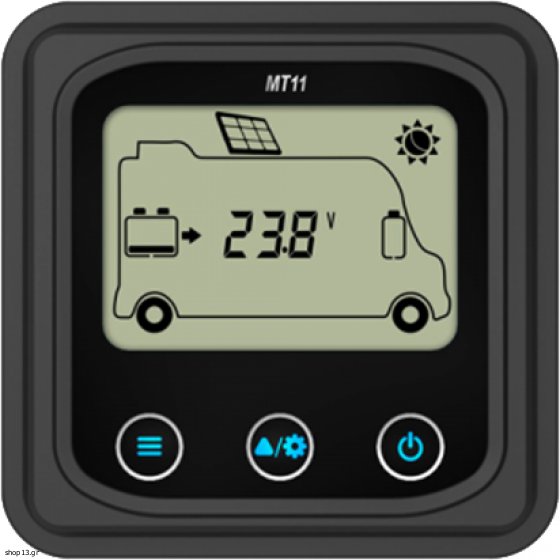

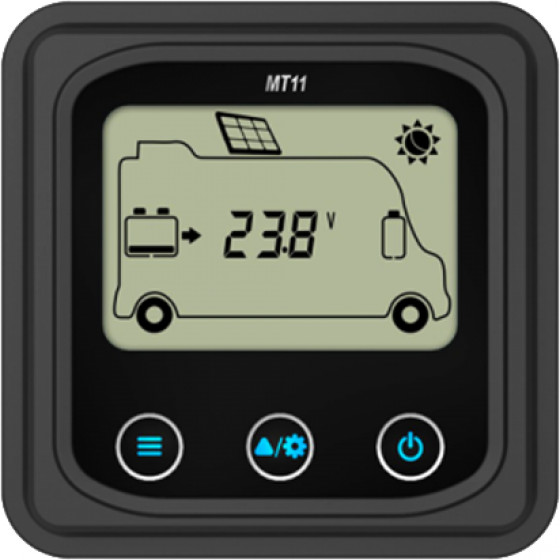

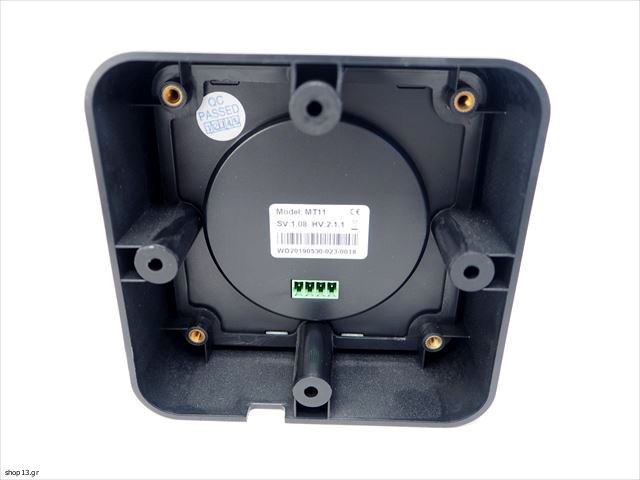

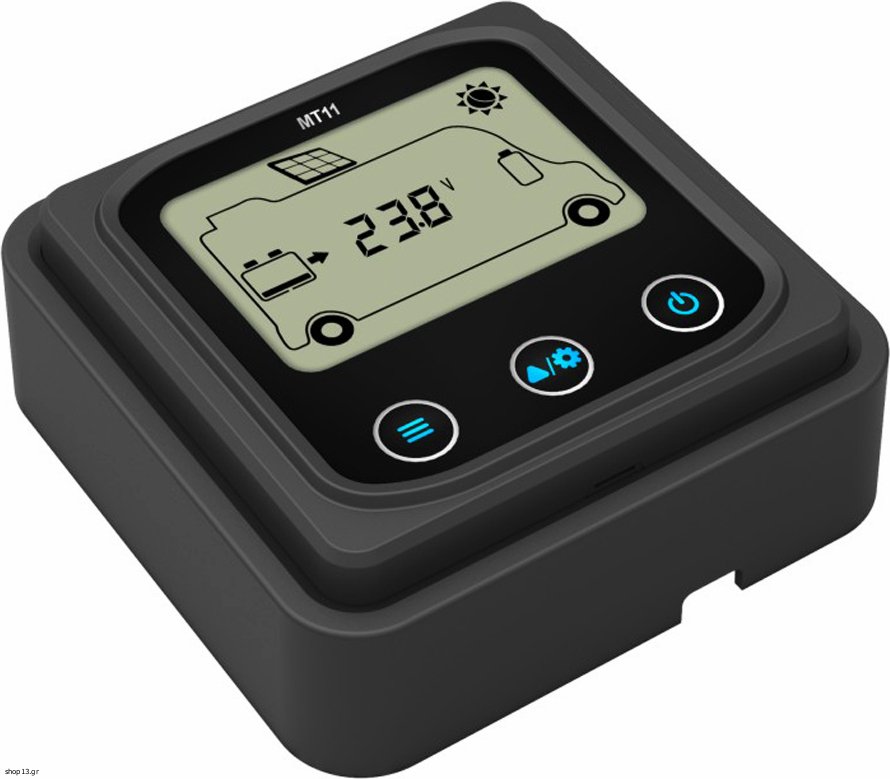

The MT series remote meter is an accessory which is compatible with the DuoRacer series controller. It can monitor the running data and working status of the controller via the remote meter. The remote meter can browse the controller’s parameters, set the battery typeand temperature unit, and clean the generated energy.It is suitable for RV, Camper, Boat, and so on. Features: 1,Automatically identify and display the type,model and relevant parameter data of controllers. 2,Real-time display the operational data and working status of the connected devices indigital,graphics and textual forms by a large-screen multifunction LCD. 3,Three touch buttons are easy and quick to operate. 4,No need for external power supply. Charge controller supply the power for MT11. 5, It can browse the controller’s parameters, set the battery typeand temperature unit, and clean the generated energy. 6,Real-time display of failure information of the connected devices. 7, Longer communication distance based on RS485. Technical Specifications: Model MT11 Apply to model DRN series Self-consumption(Power on) 13mA/5Vdc Self-consumption(Power off) 4mA Communication way RS485 Communication port 3.81-4P RS485 cable CC-RS485-RS485-3.81-4P-150(1.5m) CC-RS485-RS485-3.81-4P-500(5m) CC-RS485-RS485-3.81-4P-1000(10m) Environment temperature -20°C~+70°C Storage temperature range -20°C~+70°C Enclosure IP20 Dimension 98.4x98.4mm Base cover dimension 114x114mm Weight 0.11kg
