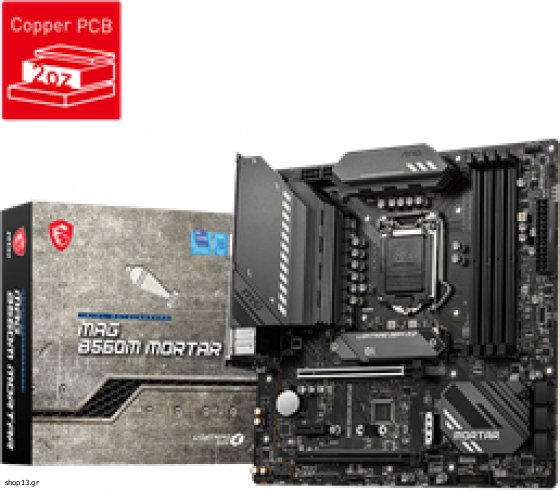

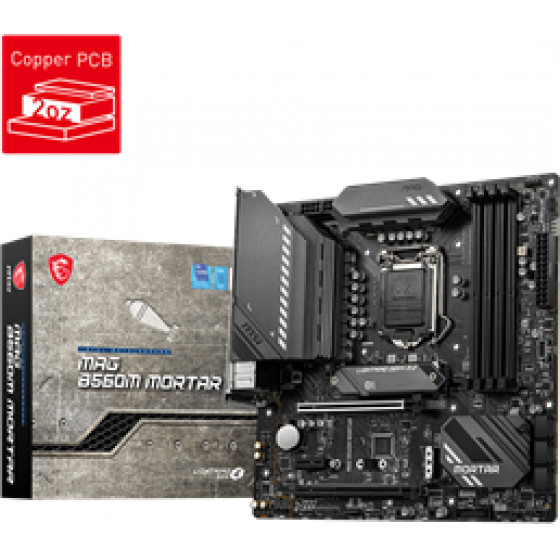

MSI Socket INTEL LGA1200 11th/10th GEN, CS INTEL B560, 4 DIMM SOCKETS DDR4, HDMI/DP, LAN 2.5G, MICRO-ATX, 3YW. - (B560M MORTAR)

CPU Support: Socket Intel LGA1200 for 11th/10th Generation Intel CPU Core and Intel Pentium Gold/Celeron
Chipset: Intel B560
MB Size: microATX
Memory Support: 4 DIMM DDR4 Sockets for non-ECC un-buffered DDR4 RAM 2933MHz (for 10th Gen CPU) and 3200MHz (for 11th Gen CPU), up to 5066MHz (OC).Max 128GB. Dual Channel architecture. Support Intel XMP
VGA: Intel UHD Graphics, only with Intel CPU that incorporate Intel UHD Graphics GPU
VGA Out: 1x HDMI v2.0bport (supports a maximum resolution of4K @60Hz)1x Display Port v1.4 (supports a maximum resolution of 4K @60Hz), )
Slots: 2x PCI-E (x16) v3.0/v4.0, 1x PCI-E (x1) v3.0
Storage: 6x SATA3 6Gbps ports, 2x M.2 slots (M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices, M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices). Supports Intel Smart Response Technology for Intel Core™ processors. Intel Optane Memory Ready
NIC: 1x Realtek RTL8125B 2.5Gbps LAN controller
Audio: 7.1 Channel HD Audio. Supports S/PDIF output
I/O: 1x HDMI, 1x Display Port, 4(+4int) USB2.0, 3(+2int)x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2x2 Type-C,1x RJ45 (LAN),5 Audio jacks, 1x front panel audio connector
Special: Extended Heatsink Design, M.2 SHIELD FROZR, Core Boost, DDR4 Boost, Audio Boost, Lightning Gen4 Solution, LightningUSB 20G,Frozr AI Cooling
Εγγύηση: 3 χρόνια
