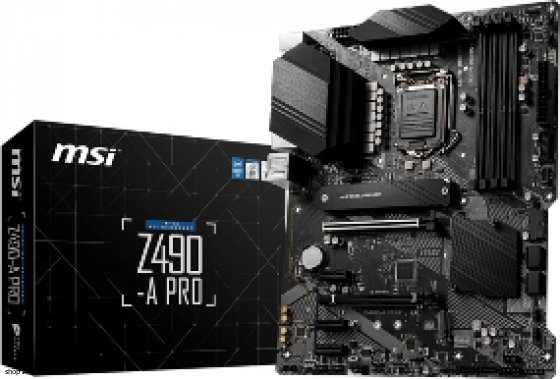

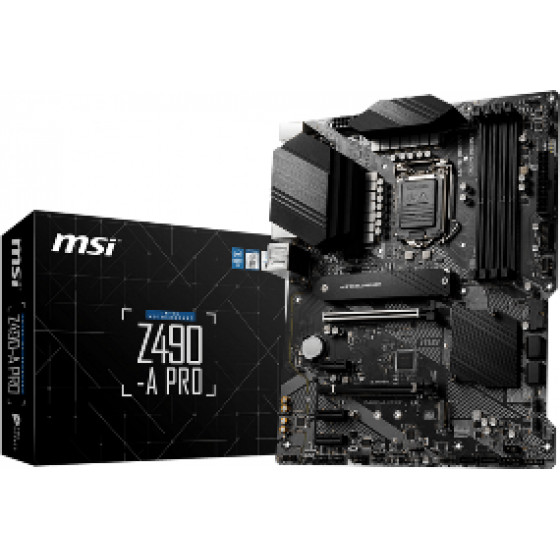

MSI Socket INTEL LGA1200 10th GEN, CS INTEL Z490, 4 DIMM SOCKETS DDR4, DP/HDMI, LAN REALTEK 2.5G, ATX, 3YW. - (Z490-A PRO)

CPU Support: Supports 10th Gen Intel Core™, 11th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1200 socket

Chipset: Intel Z490

MB Size: ATX

Memory Support: 4 DIMM DDR4 Sockets for non-ECC un-buffered DDR4 RAM up to 5000+MHz. Max 128GB. Supports Dual Channel Architecture, supports Intel Extreme Memory Profile (XMP)

VGA: Intel UHD Graphics, only with Intel CPU that incorporate Intel UHD Graphics GPU

VGA Out: 1x HDMI port (supports a maximum resolution of 4096x2160 @30Hz), 1x DisplayPort (supports a maximum resolution of 4096x2304 @60H). Supports 2-Way AMD CrossFire™ Technology

Slots: 1x PCI-E (x16) v3.0 (from CPU), 1x PCI-E (x16) v3.0 (from chipset, supports x4 mode), 3x PCI-E x1 (from chipset)

Storage: 6x SATA3 6Gbps ports supports RAID 0/1/5/10. 2x M.2 slots supports raid 0/1 (M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices, M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices). Supports Intel Smart Response Technology for Intel Core™ processors. Intel Optane Memory Ready

NIC: 1x Realtek RTL8125B-CG 2.5G LAN Controller

Audio: 7.1 Channel HD Audio. Supports S/PDIF output

I/O: 1x PS/2 Keyboard/mouse combo port, 1x HDMI, 1x DisplayPort, 2(+4int)x USB2.0, 2(+4int)x USB 3.2 Gen1 Type-A, 1x USB3.2 Gen2 Type-A,1x USB3.2 Gen2 Type-C+A, 1x RJ45 (LAN), 5 Audio jacks, 1x front panel audio connector

Special: 2.5G Network Solution, Extended Heatsink Design, M.2 Shield Frozr, 8+4 Pin Power Supply, PCI-E Steel Armor, Core Boost, Audio Boost, DDR4 Boost, EZ Debug LED

Εγγύηση: 3 χρόνια
