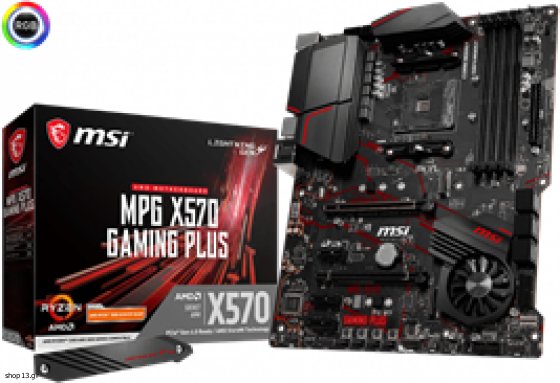

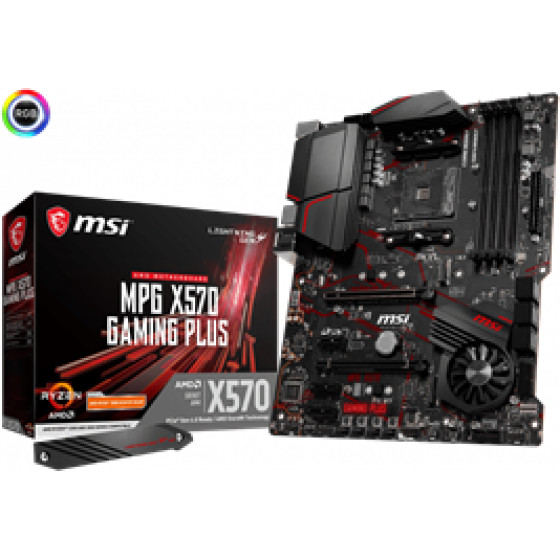

MSI Socket AMD AM4, CS AMD X570, 4 DIMM SOCKETS DDR4, HDMI, LAN GIGABIT, ATX, 3YW. - (X570 GAMING PLUS)

CPU Support: Socket AMD AM4, Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
Chipset: AMD X570 Chipset
MB Size: ATX
Memory: 4 DIMM DDR4 Sockets for ECC & non-ECC un-buffered DDR4 RAM up to 3200MHz Mhz by JEDEC or up to 4400MHz by A-XMP OC MODE(for 3rd Gen RYZEN CPUs) or up to 3200MHz by JEDEC or up to 3466MHz by A-XMP OC MODE (for other amd cpu). Max 128GB. Dual Channel architecture
VGA: Supported only with CPUs with integrated AMD Radeon Vega Series Graphics (Ryzen 3 2200G, Ryzen 5 2400G,...)
VGA Out: 1x HDMI v1.4. Support DirectX 12. Supports 2-Way AMD CrossFire™ Technology
Slots: For AMD Ryzen series CPUs supports 1x PCIe (x16) v3.0/v4.0, 1xPCIe (x16) v3.0/v4.0, 3xPCIe (x1) v3.0
Storage: 4x SATA3 6Gbps ports support RAID 0, RAID 1 and RAID 10, 2x M.2 slots: M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™), supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics), supports 2242/ 2260/ 2280/ 22110 storage devices, M2_2 slot (from AMD X570 Chipset) supports PCIe 3.0 x4 and SATA 6Gb/s, supports 2242/ 2260/ 2280 storage devices
NIC: Gigabit Ethernet LAN 10/100/1000 Mbps
Audio: 7.1 Channel HD Audio. Supports S/PDIF output
I/O: 1x PS/2 Keyb/Mouse combo port, 1x HDMI, 2(+4int)x USB 2.0, 4(+4int) USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-A + C, 2x USB 3.2 Gen2 Type-A, 1x RJ45 (LAN), 5 Audio jacks, 1x int Serial Port, 1x Front panel audio connector, 1x Clear CMOS jumper
Special: Frozr Heatsink Design, Core Boost, Extended Heatsink Design, Lightning Gen4 Solution, M.2 Shield FROZR, Audio Boost 4, DDR4 Boost, Flash BIOS Button
Εγγύηση: 3 χρόνια
