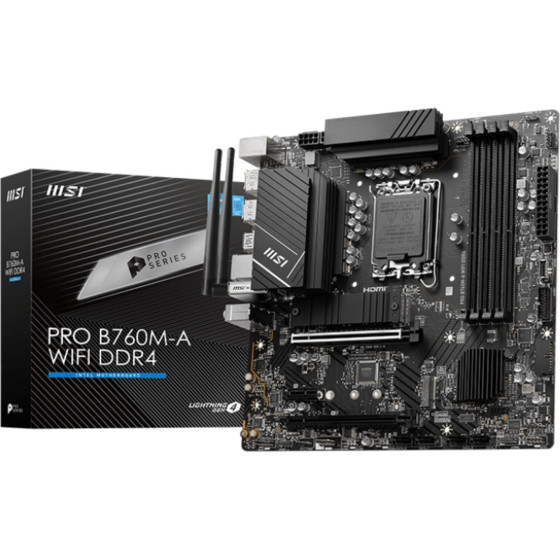

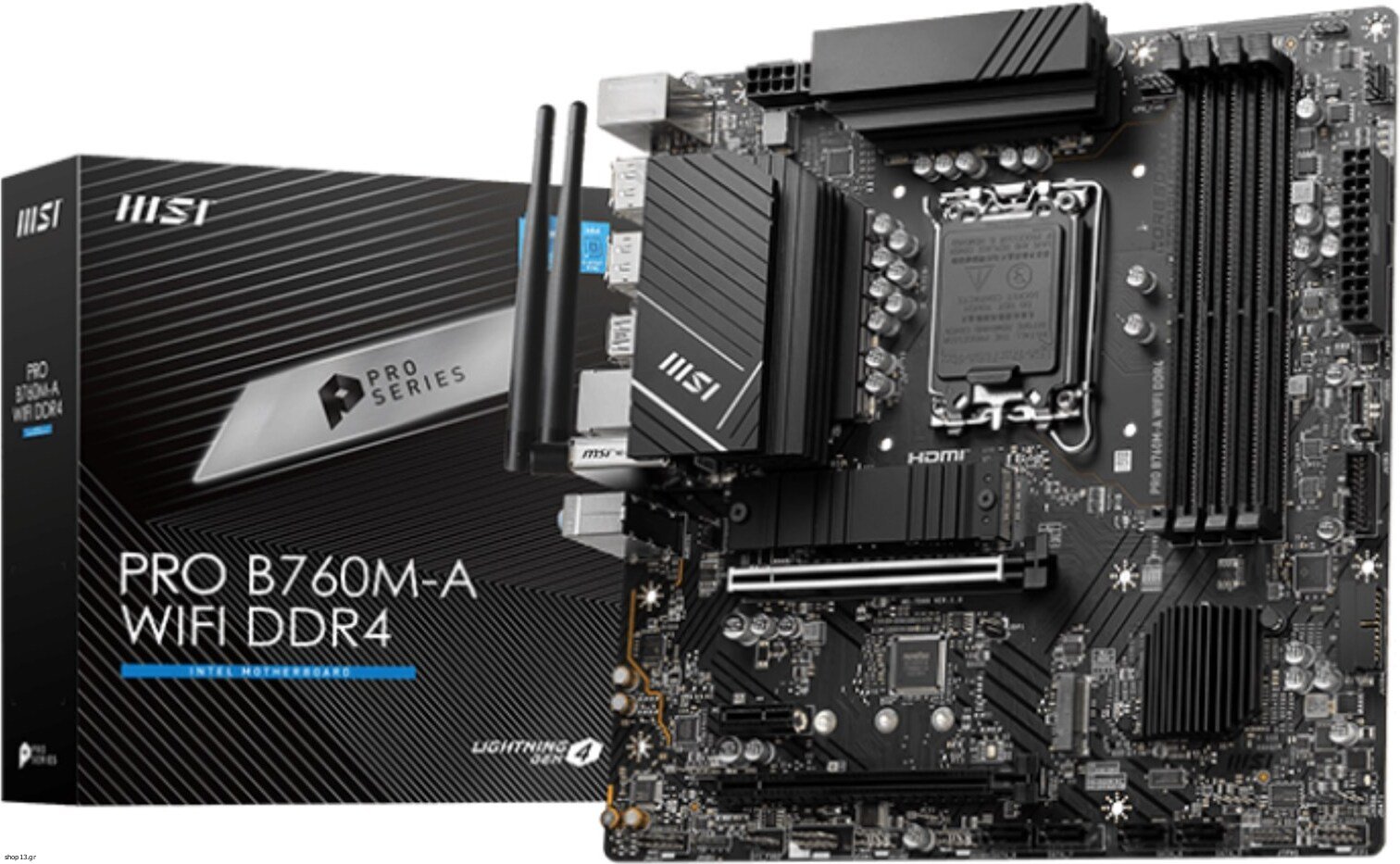

MSI Pro B760M-A Wifi DDR4 Motherboard Intel B760 Lga 1700 Micro Atx - (7D99-001R)

Processor
Maximum number of SMP processors: 1
Processor manufacturer: Intel
Compatible processor series: Intel(R) Pentium(R) Gold, Intel(R) Celeron(R)
Supported processor sockets: LGA 1700
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Motherboard form factor: micro ATX
Power source type: ATX
Motherboard chipset: Intel B760
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Black
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10, Windows 11

Memory
ECC ?ompatibility: Non-ECC
Supported memory clock speeds: 4600, 2133, 4200, 3800, 3333, 5200, 3733, 4400 MHz, 5000, 4000, 4800, 5333 MHz, 3200 MHz, 2666, 4266, 3400, 3466, 2400, 5066, 2933, 3600 MHz
Maximum internal memory: 128 GB
Memory slots type: DIMM
Supported memory clock speed (max): 5333 MHz
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Number of memory slots: 4

Weight & dimensions
Width: 243.8 mm
Depth: 243.8 mm

Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11ad, 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Ethernet LAN: Yes

Internal I/O
Number of SATA III connectors: 4
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 2.0 connectors: 4
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
TPM connector: Yes
Front panel connector: Yes

BIOS
BIOS type: UEFI AMI

Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 0, 10, 1, 5

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 2
USB 2.0 ports quantity: 2
HDMI ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2

Safety warning
Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply.


Warranty: warranty 36 months
