Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen
Processor socket: Socket AM4
Supported processor sockets: AM4
Graphics
On-board graphics card: No
Features
Audio output channels: 7.1 channels
Product colour: Black
Audio chip: Realtek ALC897
Motherboard chipset family: AMD
Motherboard chipset: AMD B550
Windows operating systems supported: Windows 11 x64, Windows 10
Motherboard form factor: micro ATX
Memory
Supported memory clock speeds: 2933, 3600, 4133, 4000, 3866, 2667, 3733, 4400 MHz, 3066, 2800, 4266, 4600
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Number of memory slots: 2
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
ECC ?ompatibility: Non-ECC
Supported memory clock speed (max): 4533 MHz
Weight & dimensions
Depth: 220 mm
Width: 243.8 mm
Network
Top Wi-Fi standard: Not available
Bluetooth: No
Ethernet LAN: Yes
Wi-Fi: No
Bluetooth version: Not applicable
Ethernet interface type: Gigabit Ethernet
Internal I/O
Front panel connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Total number of SATA connectors: 4
Front panel audio connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
Number of CPU fan connectors: 1
BIOS
BIOS type: UEFI AMI
Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 1, 5, 0, 10
Number of storage drives supported: 4
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID support: Yes
Number of HDDs supported: 4

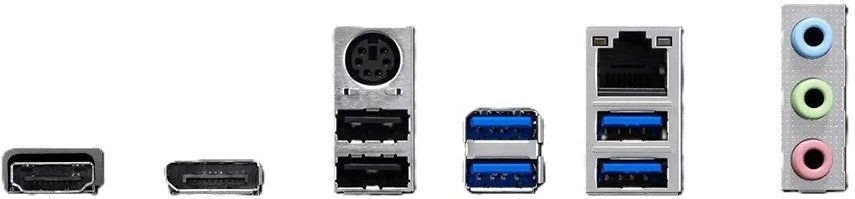

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
Expansion slots
PCI Express x16 slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 3.0
Warranty: warranty 36 months
