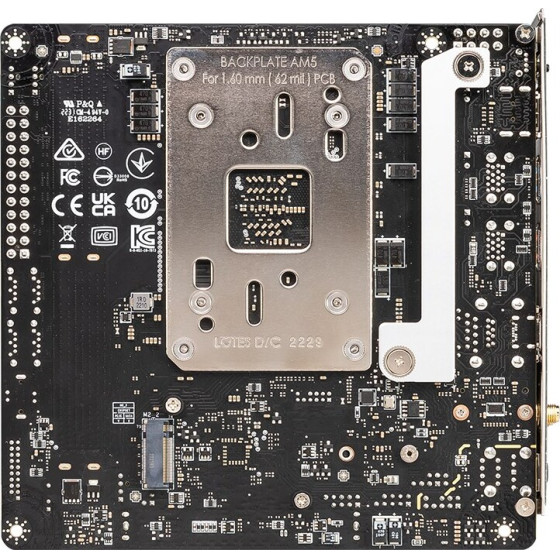

MSI Mpg B650I Edge Wifi Motherboard Amd B650 Socket AM5 Mini Atx - (7D73-001R)

Processor
Compatible processor series: AMD Ryzen 7000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
On-board graphics card: No

Features
PC health monitoring: Fan
Audio output channels: 7.1 channels
Audio chip: Realtek ALC4080
Product colour: Aluminium, Black
Motherboard chipset: AMD B650
Motherboard chipset family: AMD
Motherboard form factor: mini ATX
Windows operating systems supported: Windows 10 x64

Memory
ECC ?ompatibility: Non-ECC
Supported memory clock speeds: 5800, 5400, 5000, 5200, 6000, 6200, 6400, 5600, 4800
Maximum internal memory: 64 GB
Number of memory slots: 2
Supported memory types: DDR5-SDRAM

Weight & dimensions
Width: 170 mm
Depth: 170 mm

Network
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Bluetooth: Yes
LAN controller: Realtek RTL8125B

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Front panel audio connector: Yes
Chassis intrusion connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes

Storage controllers
RAID levels: 0, 10, 1
Supported storage drive interfaces: M.2, SATA
RAID support: Yes

Rear panel I/O ports
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.


Warranty: warranty 36 months
