Περιγραφή
Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series
Processor socket: Socket AM4
Graphics
Maximum resolution: 3840 x 2160 pixels
Features
Motherboard form factor: micro ATX
Power source type: ATX
Motherboard chipset: AMD A520
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Audio chip: Realtek ALC897
Memory
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory clock speeds: 1866, 3866, 3200 MHz, 4266, 2133, 4600, 3466, 2667, 3733, 4400 MHz, 3066, 2933, 3600, 4133, 4000, 2400, 2800, 3000
Maximum internal memory: 64 GB
ECC ?ompatibility: Non-ECC
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Weight & dimensions
Depth: 200 mm
Width: 236 mm
Network
LAN controller: Realtek 8111H
Top Wi-Fi standard: Not available
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 4
CPU fan connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 1
Front panel audio connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
Total number of SATA connectors: 4
Chassis intrusion connector: Yes
Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 0, 10, 1
Supported storage drive interfaces: PCI Express 3.0, SATA
Number of storage drives supported: 2

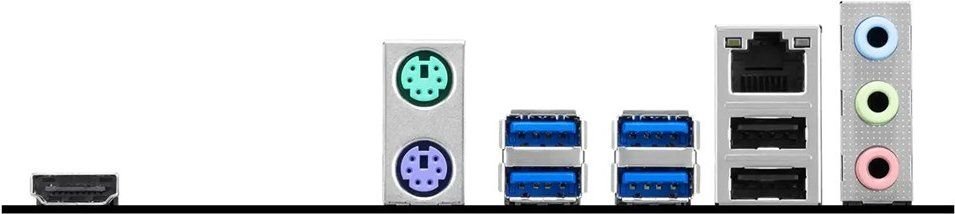

Rear panel I/O ports
USB 2.0 ports quantity: 2
PS/2 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Microphone in: Yes
Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Warranty: warranty 36 months
