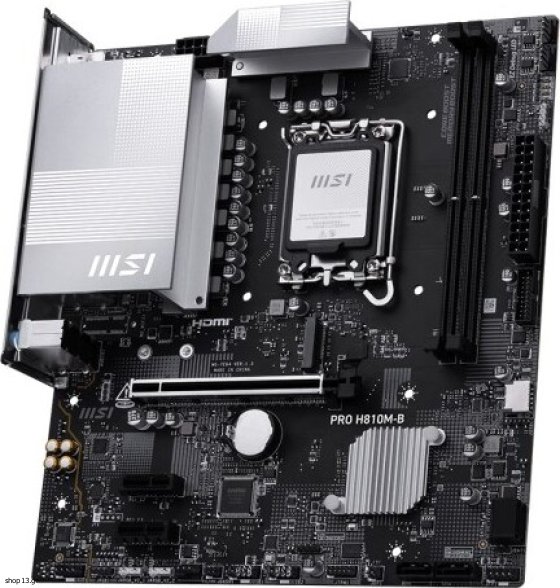

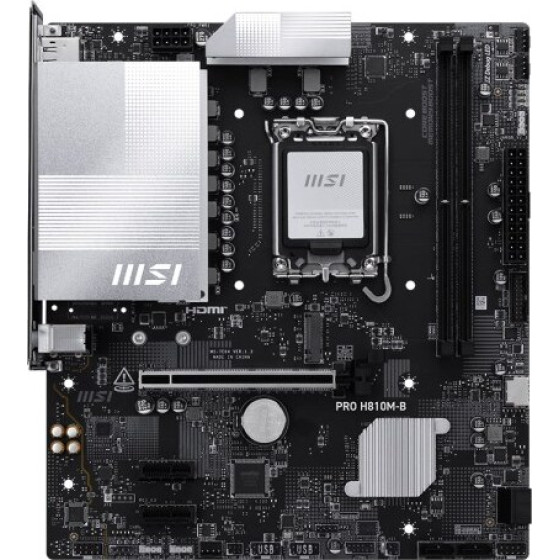

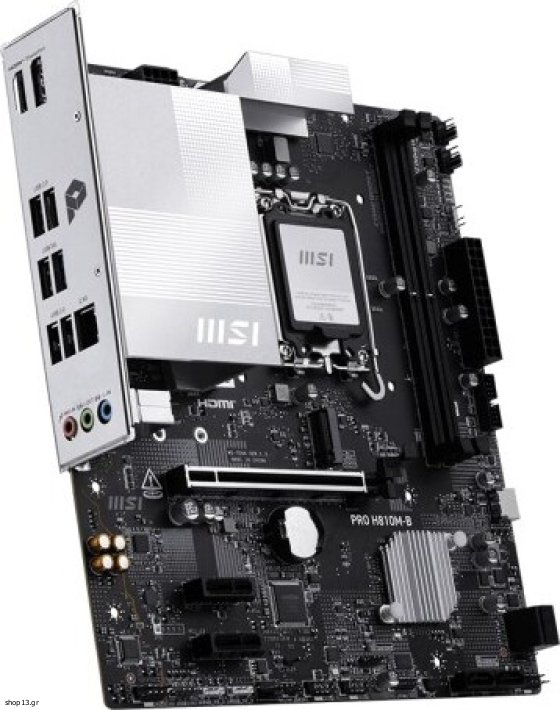

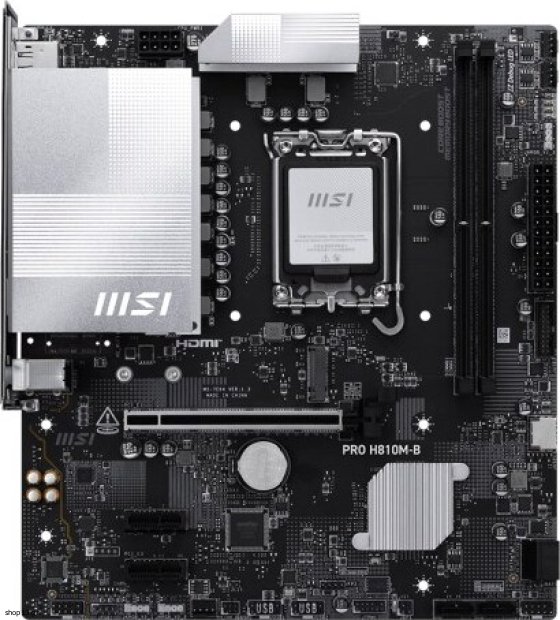

MSI motherboard Intel H810 LGA 1851 (Socket V1) micro ATX - (PRO H810M-B)

Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)

Features
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 11
Motherboard chipset: Intel H810
Motherboard chipset family: Intel
Motherboard form factor: micro ATX

Memory
Number of memory slots: 2
Supported memory clock speeds: 4800, 6400
Supported memory types: DDR5 UDIMM
Maximum internal memory: 128 GB
ECC ?ompatibility: Non-ECC

Weight & dimensions
Depth: 243.8 mm
Width: 220 mm

Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
TPM connector: Yes
USB 2.0 connectors: 4
Number of SATA III connectors: 4
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
Power fan connector: Yes
12V power connector: Yes
Front panel audio connector: Yes
USB 3.2 (Gen 2) Type-C ports quantity: 1
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 2
Number of chassis fan connectors: 2
Audio connector: Yes
Number of RGB LED pin headers: 1

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III

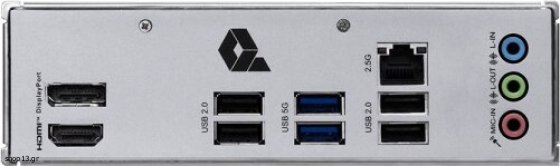

Rear panel I/O ports
DisplayPort version: 1.4
HDMI version: 2.1
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
Audio connector: Yes

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 slots: 2
Number of M.2 (M) slots: 1


Warranty: warranty 36 months
