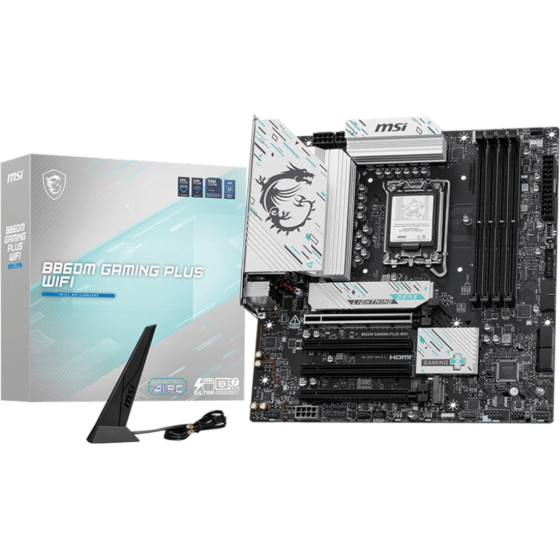

MSI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX - (B860M GAMING PLUS WIFI)

Processor
Processor manufacturer: Intel
Maximum internal memory supported by processor: 256 GB
Supported processor sockets: LGA 1851
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)

Features
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Motherboard chipset: Intel B860
Audio chip: Realtek ALC897
Product colour: Black

Memory
Memory channels: Dual-channel
Memory slots type: DIMM
ECC ?ompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Supported memory clock speed (max): 8800 MHz
Supported memory clock speeds: 8800, 6400, 4800
Maximum internal memory: 256 GB

Weight & dimensions
Width: 243.8 mm
Depth: 243.8 mm

Network
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b
Bluetooth version: 5.4
Wi-Fi: Yes
WLAN controller model: Killer Wi-Fi 7 1750x
Ethernet LAN: Yes
Ethernet interface type: 5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth: Yes

Internal I/O
Number of CPU fan connectors: 1
RGB LED pin header: Yes
Number of SATA III connectors: 4
Total number of SATA connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of RGB LED pin headers: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 2.0 connectors: 4
CPU fan connector: Yes
Number of water pump connectors: 1

BIOS
BIOS type: UEFI AMI

Storage controllers
RAID levels: 1, 10, 0, 5
Number of storage drives supported: 7
Supported storage drive interfaces: M.2, Micro SATA III
RAID support: Yes
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD

Rear panel I/O ports
HDMI version: 2.1
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 3
3rd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
3rd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280

Safety warning
Warnings: Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics.


Warranty: warranty 36 months
