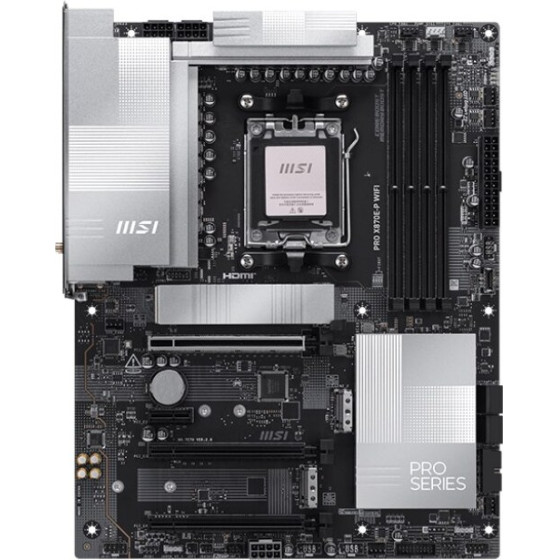

MSI motherboard AMD X870E Socket AM5 ATX - (PRO X870E-P WIFI)

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Processor socket: Socket AM5

Features
Windows operating systems supported: Windows 11 x64
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Motherboard chipset: AMD X870E
Product colour: Black
Motherboard chipset family: AMD

Memory
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Number of memory slots: 4
Supported memory clock speed (max): 8200 MHz
Supported memory clock speeds: 8200, 5600, 4800
ECC ?ompatibility: Non-ECC

Weight & dimensions
Width: 243.8 mm
Depth: 304.8 mm

Network
Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Bluetooth version: 5.4
Ethernet LAN: Yes
Bluetooth: Yes

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Total number of SATA connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
TPM connector: Yes
USB 2.0 connectors: 6

Storage controllers
RAID levels: 1, 10, 0, 5
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 3.2 Gen 2x2 Type-C ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB4 Gen 3x2 ports quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 4

Expansion slots
PCI Express x1 slots: 1
Number of M.2 (M) slots: 3
PCI Express x16 slots: 3
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
3rd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0


Warranty: warranty 36 months
