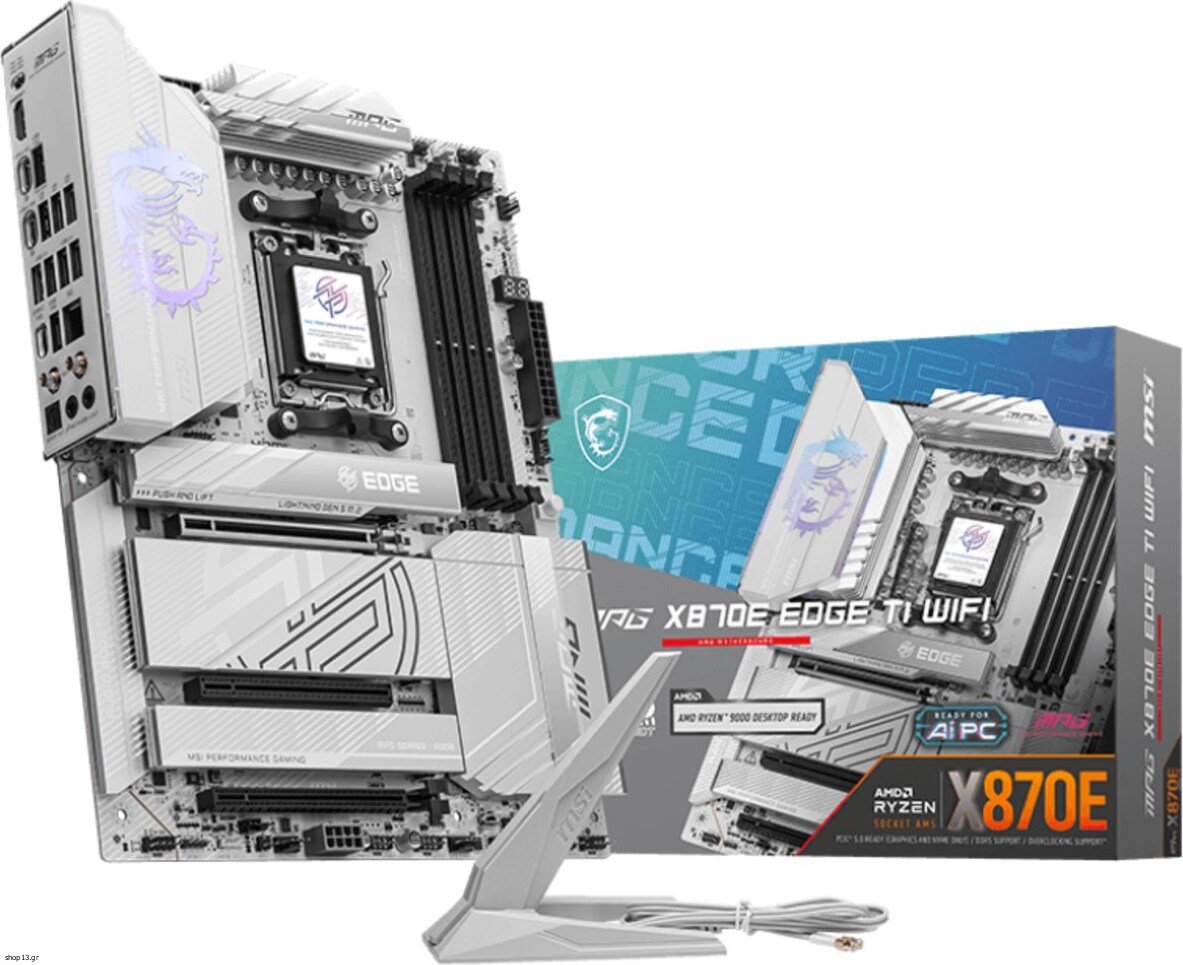

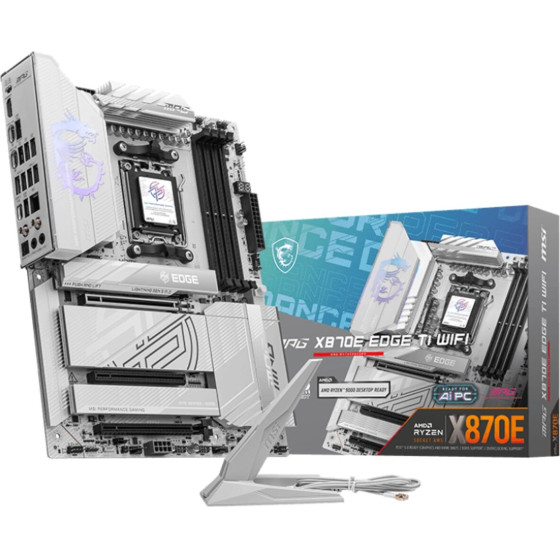

MSI Motherboard Amd X870E Socket AM5 Atx - (Mpg X870E Edge Ti WIFI)

Processor
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor socket: Socket AM5
Processor manufacturer: AMD
Maximum internal memory supported by processor: 256 GB
Supported processor sockets: Socket AM5

Graphics
On-board graphics card: No

Features
Audio output channels: 7.1 channels
Product colour: White
PC health monitoring: Voltage, CPU, Temperature, Fan
Motherboard chipset family: AMD
Motherboard chipset: AMD X870E
Motherboard form factor: ATX

Memory
Memory slots type: DIMM
Supported memory clock speeds: 4800, 5600, 8400
Maximum internal memory: 256 GB
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 8400 MHz
ECC ?ompatibility: Non-ECC

Weight & dimensions
Depth: 304.8 mm
Width: 243.8 mm

Network
LAN controller: Realtek RTL8126
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Bluetooth version: 5.4
Ethernet LAN: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet

Internal I/O
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
Total number of SATA connectors: 4
Number of SATA III connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes
EPS power connector (8-pin): Yes

Storage controllers
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 10, 5, 1
Number of HDDs supported: 4
Number of storage drives supported: 8
Supported storage drive types: HDD & SSD

Rear panel I/O ports
DisplayPort version: 1.4
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Microphone in: Yes
S/PDIF out port: Yes
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 2
USB4 Gen 2x2 ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 2280
2nd M.2 largest key size: 2280
3rd M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0

Safety warning
Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.


Warranty: warranty 36 months
