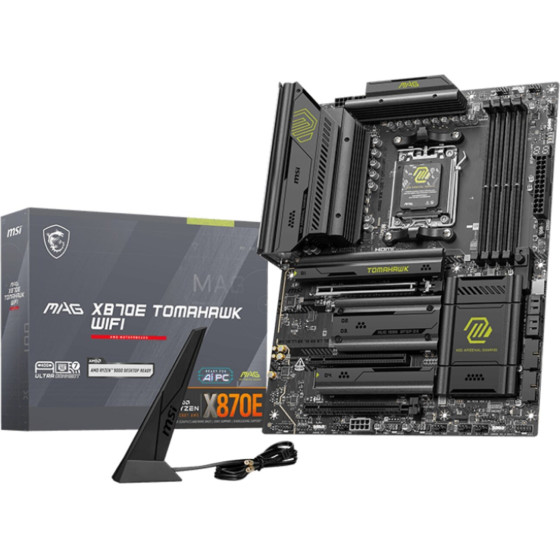

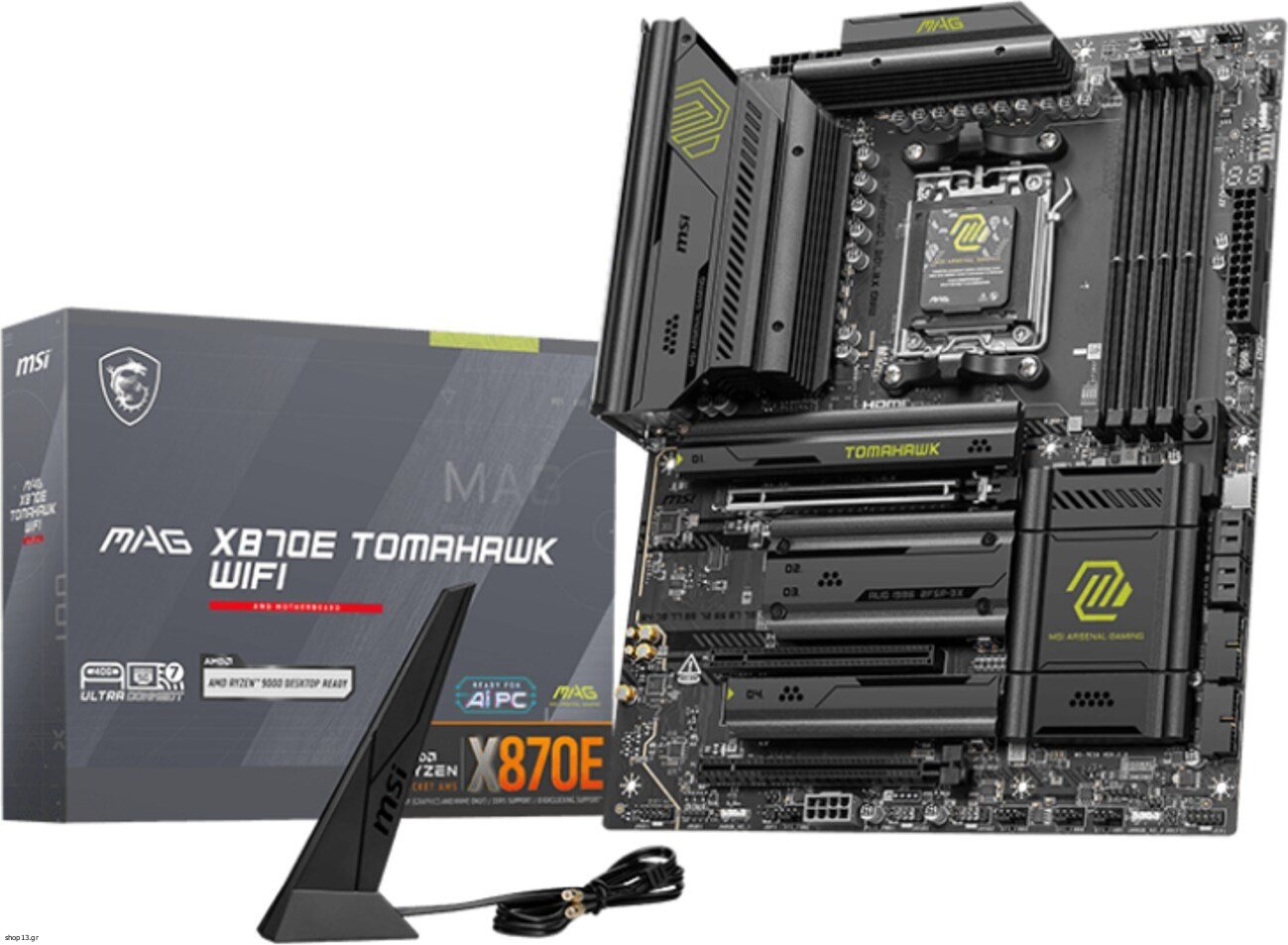

MSI Motherboard Amd X870E Socket AM5 Atx - (Mag X870E Tomahawk WIFI)

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 256 GB
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
On-board graphics card: No

Features
Audio output channels: 7.1 channels
Motherboard form factor: ATX
PC health monitoring: Voltage, Fan, Temperature, CPU
Motherboard chipset family: AMD
Motherboard chipset: AMD X870E
Product colour: Black

Memory
Supported memory clock speeds: 4800, 8400, 5600 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory clock speed (max): 8400 MHz
ECC ?ompatibility: Non-ECC

Weight & dimensions
Depth: 304.8 mm
Width: 243.8 mm

Network
Wi-Fi standards: 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11b
LAN controller: Realtek RTL8126
Bluetooth: Yes
Ethernet interface type: 5 Gigabit Ethernet
Wi-Fi: Yes
Ethernet LAN: Yes
Bluetooth version: 5.4
Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 2.0 connectors: 4
Total number of SATA connectors: 4
EPS power connector (8-pin): Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 8
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 2
HDMI version: 2.1
S/PDIF out port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB4 Gen 2x2 ports quantity: 1
Microphone in: Yes
DisplayPort version: 1.4

Expansion slots
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
3rd M.2 largest key size: 2280
4th M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 5.0
1st M.2 highest PCI Express generation: 5.0

Safety warning
Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.


Warranty: warranty 36 months
