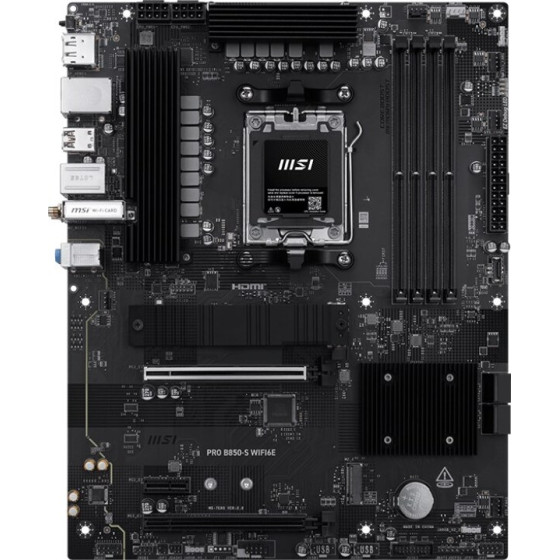

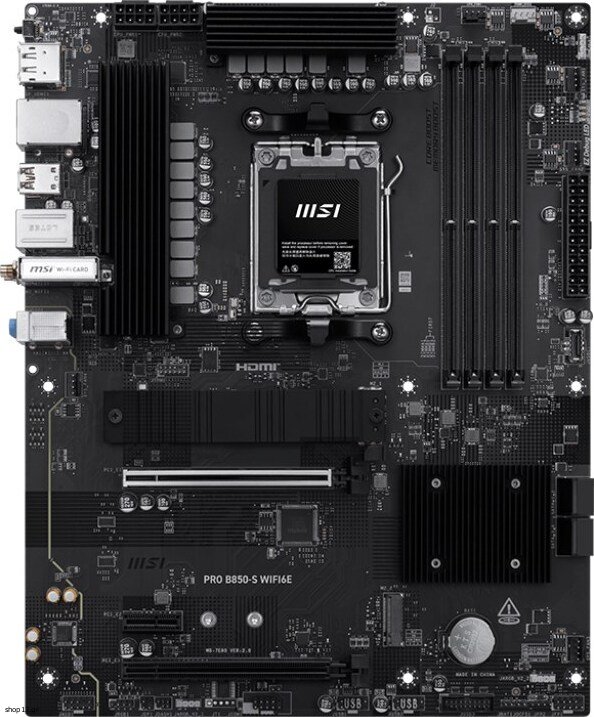

MSI motherboard AMD B850 Socket AM5 ATX - (PRO B850-S WIFI6E)

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5

Features
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset: AMD B850
Product colour: Black
Audio chip: Realtek ALC897
Motherboard chipset family: AMD
Power source type: ATX

Memory
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: Non-ECC
Memory slots type: DIMM
Number of memory slots: 4
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Memory channels: Dual-channel

Weight & dimensions
Depth: 304.8 mm
Width: 243.8 mm

Network
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11a, 802.11b, Wi-Fi 6E (802.11ax)
LAN controller: Realtek RTL8125
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Ethernet LAN: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth: Yes

Internal I/O
Power fan connector: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Chassis intrusion connector: Yes
Front panel audio connector: Yes
RGB LED pin header: Yes
USB 2.0 connectors: 4
Number of COM connectors: 1
CPU fan connector: Yes
Front panel connector: Yes
TPM connector: Yes
Audio connector: Yes
Number of CPU fan connectors: 1

BIOS
Clear CMOS button: Yes

Packaging content
Cables included: SATA
Screws included: Yes
Antenna included: Yes

Storage controllers
RAID levels: 10, 0, 1
Supported storage drive interfaces: M.2, SATA
Supported storage drive types: HDD & SSD
RAID support: Yes

Rear panel I/O ports
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI version: 2.1
HDMI ports quantity: 1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0


Warranty: warranty 36 months
