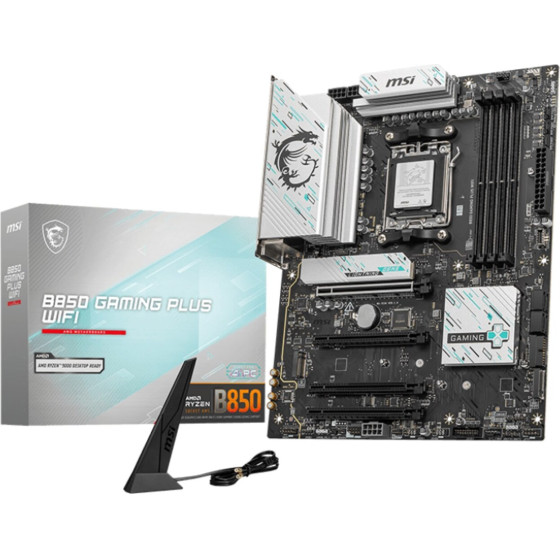

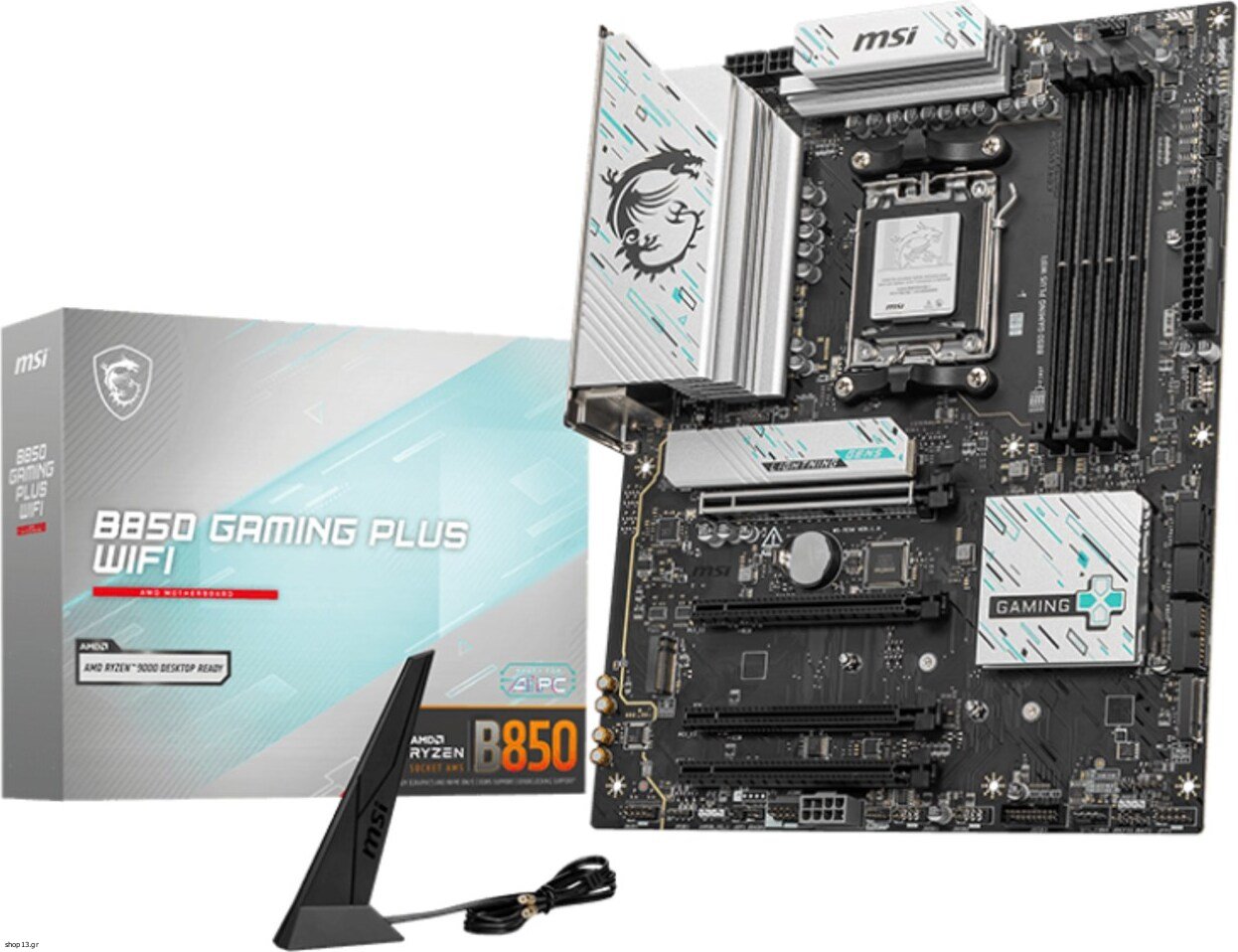

MSI motherboard AMD B850 Socket AM5 ATX - (B850 GAMING PLUS WIFI)

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Maximum internal memory supported by processor: 256 GB

Graphics
On-board graphics card: No

Features
Product colour: Black
Audio output channels: 7.1 channels
Motherboard chipset: AMD B850
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 11 x64
Motherboard form factor: ATX
Motherboard chipset family: AMD

Memory
Maximum internal memory: 256 GB
Supported memory clock speeds: 8200, 4800, 5600 MHz
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8200 MHz
ECC ?ompatibility: Non-ECC

Weight & dimensions
Depth: 304.8 mm
Width: 243.8 mm

Network
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b
Ethernet interface type: 5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4

Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
Total number of SATA connectors: 4
CPU fan connector: Yes
USB 2.0 connectors: 4
RGB LED pin header: Yes
Number of RGB LED pin headers: 3
Number of water pump connectors: 1
Number of CPU fan connectors: 4

BIOS
BIOS type: UEFI AMI

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, Micro SATA III
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 1, 0
Number of storage drives supported: 7

Rear panel I/O ports
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB 2.0 ports quantity: 4

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0

Safety warning
Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.


Warranty: warranty 36 months
