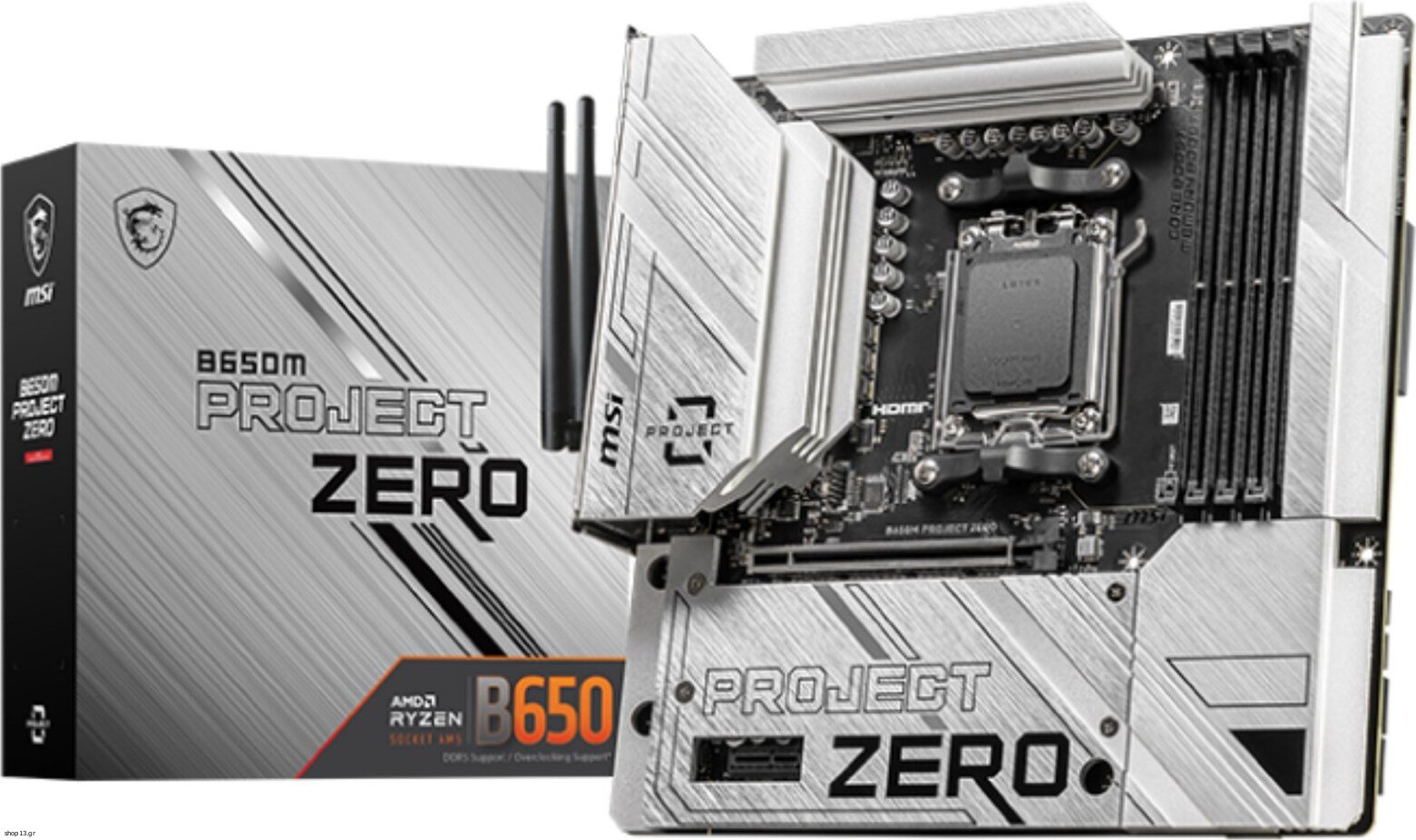

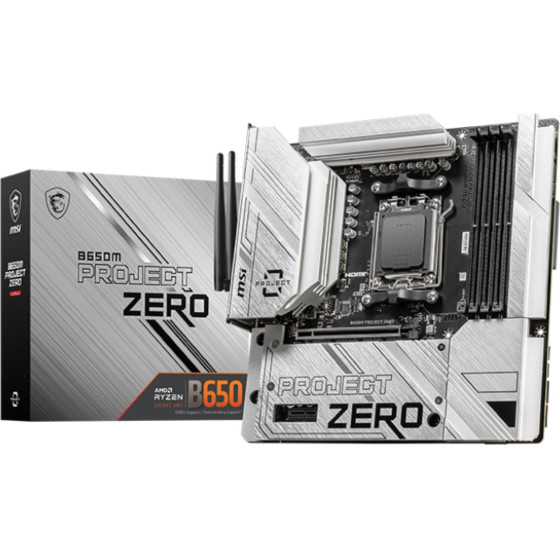

MSI motherboard AMD B650 Socket AM5 micro ATX - (B650M PROJECT ZERO)

Processor
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Processor manufacturer: AMD
Maximum internal memory supported by processor: 128 GB

Graphics
Parallel processing technology support: Not supported
On-board graphics card: No

Features
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Audio chip: Realtek ALC897
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: AMD B650
Product colour: White

Memory
Supported memory clock speeds: 4800, 7600 MHz, 7400, 6000, 5200, 7000, 5000, 6200, 6400, 6600, 6800, 5600, 5800, 5400
Memory channels: Dual-channel
Unbuffered memory: Yes
Maximum internal memory: 128 GB
ECC ?ompatibility: Non-ECC
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 7600 MHz

Weight & dimensions
Depth: 243.8 mm
Width: 243.8 mm

Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes

Internal I/O
Chassis intrusion connector: Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
Front panel audio connector: Yes
TPM connector: Yes
Front panel connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 4
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA

Storage controllers
RAID levels: 5, 10, 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express
RAID support: Yes

Rear panel I/O ports
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 slots: 1
PCI Express x1 slots: 1

Safety warning
Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.


Warranty: warranty 36 months
