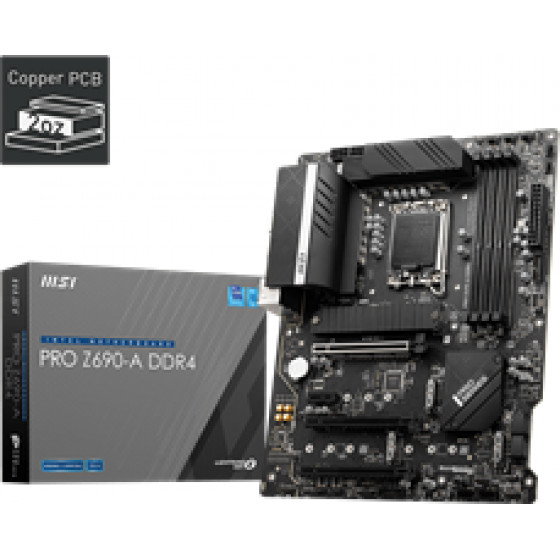

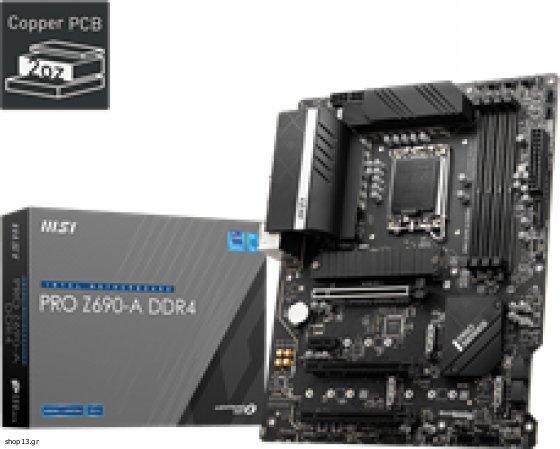

MSI MB SOCKET INTEL LGA1700 12th GEN, CS INTEL Z690, 4 DIMM SOCKETS DDR4, DP/HDMI, LAN INTEL 2.5G, ATX, 3YW. - (PRO Z690-A DDR4)

CPU Support: Socket Intel LGA1700 for 12th Gen Intel Core™ Processors, Pentium/Gold/Celeron Processors

Chipset: Intel Z690

MB Size: ATX

Memory Support: 4 DIMM DDR4 Sockets for non-ECC un-buffered DDR4 RAM up to 5200+MHz (OC). Max 128GB. Supports Dual Channel Architecture, supports Intel Extreme Memory Profile (XMP)

VGA: Intel UHD Graphics, only with Intel CPU that incorporate Intel UHD Graphics GPU

VGA Out: 1x HDMI v2.1 with HDR port (supports a maximum resolution of4K @60Hz), 1x DisplayPort v1.4(supports a maximum resolution of4K @60H). Supports AMD CrossFire™ Technology

Slots: 3x PCI-E (x16) (supports up to PCIe 5.0 x16, supports up to PCIe 3.0 x4 & 3.0 x1), 1x PCI-E (x1) v3.0

Storage: 6x SATA3 6Gbps ports supports RAID 0/1/5/10. 4x M.2 slots supports raid 0/1/5. M2_1 slot supports PCIe 4.0 x4 and 2242/ 2260/ 2280/ 22110 storage devices, M2_2 slot supports PCIe 4.0 x4 and 2242/ 2260/ 2280 storage devices, M2_3 slot supports PCIe 3.0 x4, SATA 6Gb/s and 2242/ 2260/ 2280 storage devices, M2_4 slot supports PCIe 4.0 x4, SATA 6Gb/s and 2242/ 2260/ 2280 storage devices.Supports Intel Smart Response Technology for Intel Core™ processors. Intel Optane Memory Ready

NIC: 1x Intel I225-V 2.5Gbps LAN

Audio: 7.1 Channel HD Audio

I/O: 1x PS/2 Keyboard/mouse combo port, 1x HDMI, 1x DisplayPort, 4(+4int)x USB2.0, 2(+4int)x USB 3.2 Gen1 type A, 1x USB3.2 Gen2 10Gbpstype A,1x USB3.2 Gen2x2 Type-C, 1x RJ45 (LAN), 6 Audio jacks, 1x front panel audio connector, 1x Flash BIOS Button

Special: Extended Heatsink Design, M.2 Shield Frozr, 2.5G Network Solution, Core boost,MemoryBoost, EZ Debug LED, Frozr AI Cooling, Lightning Gen5, Lightning USB 20G

Εγγύηση: 3 χρόνια
