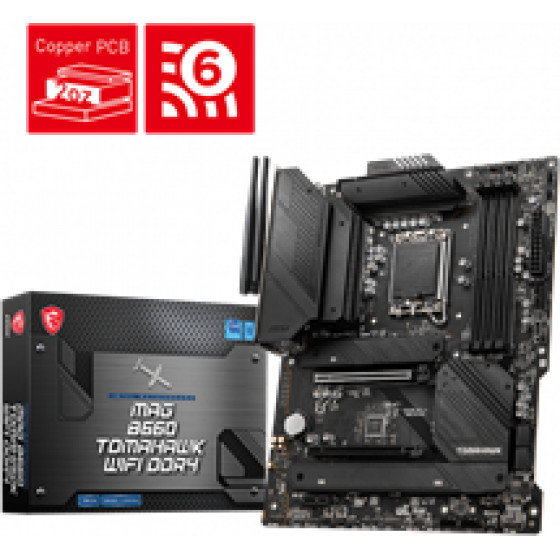

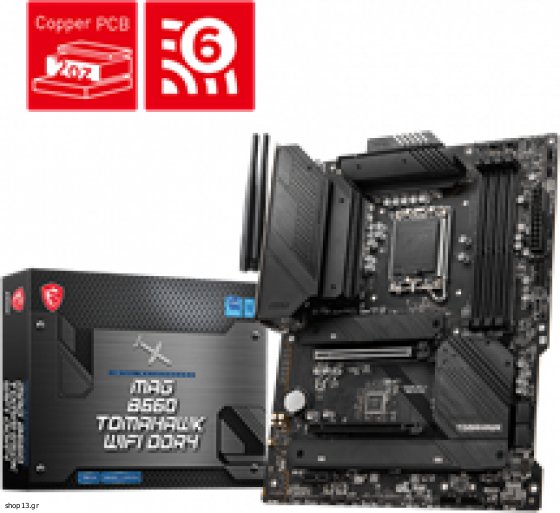

MSI MB SOCKET INTEL LGA1700 12th GEN, CS INTEL B660, 4 DIMM SOCKETS DDR4, HDMI/DP, LAN 2.5G, WIFI 6, ATX, 3YW. - (MAG B660 TOMAHAWK WIFI DDR4)

CPU Support: Socket Intel LGA1700 for 12th Generation Intel CPU Core and Intel Pentium Gold/Celeron
Chipset: Intel B660
MB Size: ATX
Memory Support: 4 DIMM DDR4 Sockets for non-ECC un-buffered DDR4 RAM up to 4800+MHz (OC).Max 128GB. Dual Channel architecture. Support Intel XMP
VGA: Intel UHD Graphics, only with Intel CPU that incorporate Intel UHD Graphics GPU
VGA Out: 1x HDMI v2.1port (supports a maximum resolution of4K @60Hz)1x Display Port v1.4 (supports a maximum resolution of 4K @60Hz), )
Slots: 2x PCI-E (x16) v3.0/v4.0, 1x PCI-E (x1) v3.0
Storage: 6x SATA 6Gb/s ports support RAID 0/1/5/10,3x M.2 slots (Key M), M2_1 slot Supports PCIe 4.0 x4, Supports 2242/ 2260/ 2280 storage devices. M2_2 slot Supports PCIe 4.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices.M2.3 Supports PCIe 4.0 x2, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices.Intel Optane™ Memory. (SATA A & B do not support raid)
NIC: 1x Realtek RTL8125B 2.5Gbps LAN controller

WiFi & Bluetooth: Intel Wi-Fi 6E (the Wireless module is pre-installed in the M.2 (Key-E) slot), supports Bluetooth 5.2
Audio: 7.1 Channel HD Audio. Supports S/PDIF output
I/O: 1x HDMI, 1x Display Port, 4(+4int) USB2.0, 4x USB 3.2 Gen2 10GbpsType-A, 1x USB 3.2 Gen2x2 Type-C,1x RJ45 (LAN),5 Audio jacks, 1x front panel audio connector, 1x Optical S/PDIF OUT, 2x Antenna
Special: Extended Heatsink Design, M.2 SHIELD FROZR, Core Boost,Memory Boost, Lightning Gen4 Solution, LightningUSB 20G,Frozr AI Cooling, WiFi 6
Εγγύηση: 3 χρόνια
