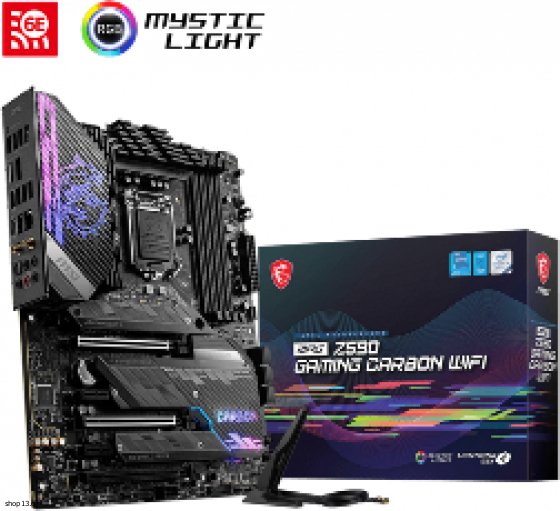

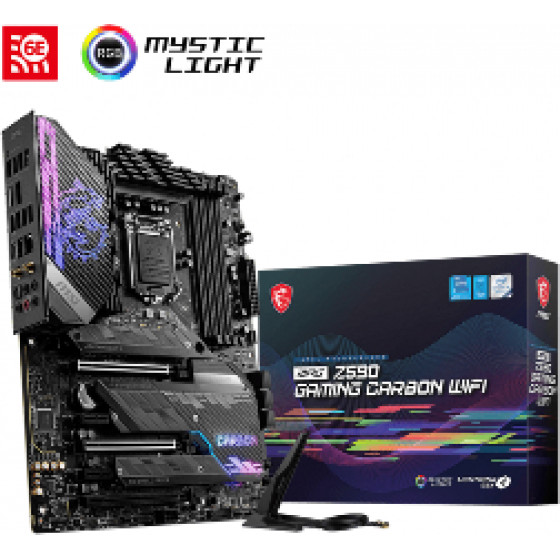

MSI Mb Socket Intel LGA1200 11th/10th GEN, Cs Intel Z590, 4 Dimm Sockets DDR4, DP/HDMI, Lan Intel 2.5G, ATX, 3YW. - (Mpg Z590 Gaming Carbon WIFI)

CPU Support: Socket Intel LGA1200 for 10th/11th Gen Intel Core™ Processors, Pentium/Gold/Celeron Processors

Chipset: Intel Z590

MB Size: ATX

Memory Support: 4 DIMM DDR4 Sockets for non-ECC un-buffered DDR4 RAM up to 5333MHz (OC). Max 128GB. Supports Dual Channel Architecture, supports Intel Extreme Memory Profile (XMP)

VGA: Intel UHD Graphics, only with Intel CPU that incorporate Intel UHD Graphics GPU

VGA Out: 1x HDMI v2.0bwith HDR port(supports a maximum resolution of4K @60Hz), 1x DisplayPort v1.4(supports a maximum resolution of4K @60H). Supports 3-Way AMD CrossFire™ Technology

Slots: 3x PCI-E (x16) (supports up to PCIe 4.0 for 11th Gen Intel CPU), 2x PCI-E (x1) v3.0

Storage: 6x SATA3 6Gbps ports supports RAID 0/1/10. 3x M.2 slots supports raid 0/1 (M2_1 available only on 11th Gen Intel CPU, supports up to PCIe 4.0x4, 2242/ 2260/ 2280/ 22110 storage devices, M2_2 & M2_3supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices). Supports Intel Smart Response Technology for Intel Core™ processors. Intel Optane Memory Ready

NIC: 1x Intel I225-V 2.5Gbps LAN controller

WiFi 6: Intel Wi-Fi 6E AX210. The Wireless module is pre-installed in the M.2 (Key-E) slot

Audio: 7.1 Channel HD Audio

I/O: 1x HDMI, 1x DisplayPort, 4(+4int)x USB2.0, 2(+2int)x USB 3.2 Gen1 Type-A, 3x USB 3.2 Gen2 Type-A,1x USB3.2 Gen2x2 Type-C, 1x RJ45 (LAN), 2x Antenna ports,5 Audio jacks, 1x front panel audio connector, 1x Optical S/PDIF Out

Special: Premium Thermal Design, Lightning Gen4 Solution, 10 Layer PCB with 2oz Thickened Copper, Lightning USB 20G, 2.5G Network Solution, Core boost, DDR4 Boost, Audio Boost 5, 2oz Thickened Copper PCBMystic Light RGB LED

Εγγύηση: 3 χρόνια
