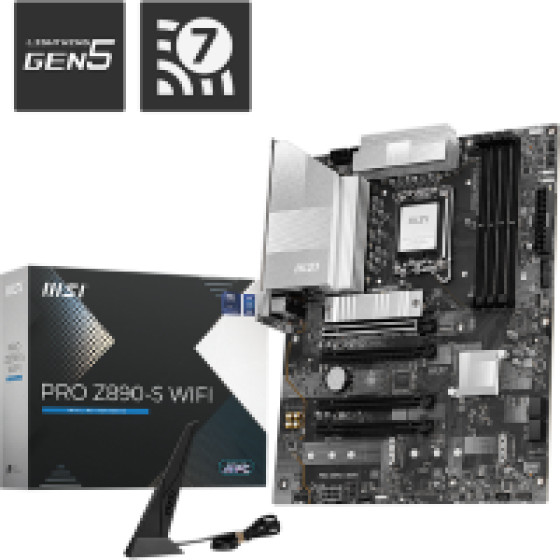

MSI Mb Pro Z890-S WIFI, Socket Intel LGA1851, Cs Intel Z890, 4 Dimm Sockets DDR5, DP/HDMI, Lan 2,5G, Wi-Fi, ATX, 3YW - (911-7E54-001)
[Κωδικός : 507104]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
CPU Support: Intel Socket LGA 1851, supports Intel Core™ Ultra Processors (Series 2).
Chipset: Intel Z890.
MB Size: ATX.
Memory Support: 4 DIMM DDR5 Sockets for non-ECC un-buffered DDR5 RAM up to 8600+ MT/s Overclocking or up to 6400 MT/s JEDEC. Max 256GB. Support Dual Controller Dual Channel mode. Supports Intel XMP 3.0.
VGA Out (Available only on processors featuring integrated GPU):
1x HDMI v2.1, maximum resolution of 4K 60Hz.
1x DisplayPort v1.4, maximum resolution of 4K 60Hz.
1x Type-C Thunderbolt v4 port, supporting DisplayPort v1.4 USB Type-C, with a maximum resolution of 4K 120Hz/8K 60Hz.
Slots: 3x PCI-E (x16) slots, 1x PCI-E x1 slot:
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU).
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset).
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset).
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU).
Storage:
3x M.2:
M.2_1 Source (From CPU) supports up to PCle 5.0 x4, supports 2280/2260/2242 devices.
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices.
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4/ SATA mode, supports 2280/2260/2242 devices.
4x SATA 6G
RAID:
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices.
Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices.
Lan: Realtek 8125D 2.5Gbps LAN.
Wireless: Intel Wi-Fi 7. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be. Supports Bluetooth 5.4, MLO, 4KQAM.
Audio: Realtek ALC897 Codec. 7.1-Channel High Definition Audio.
I/O:
4x USB 2.0(Front).
6x USB 5Gbps Type A (Rear).
2x USB 5Gbps Type A (Front).
1x USB 20Gbps Type C (Rear).
1x USB 20Gbps Type C (Front).
DisplayPort (Rear).
2.5G LAN (Rear).
Wi-Fi / Bluetooth Antenna (Rear).
Audio Connectors (Rear).
HDMI™ (Rear).
Thunderbolt™ 4 40Gbps Type-C (Rear).
Special Features: Wi-Fi 7, Thunderbolt port, Lightning USB 20G, Latest DDR5 Memory, Lightning Gen 5,2.5G Network Solution, Extended Heatsink Design, M.2 Shield FROZR, Pre-installedI/O Shielding, Frozr AI Cooling.
Εγγύηση: 3 έτη.
Χαρακτηριστικά
Μοντέλο
MSI MB PRO Z890-S WIFI, SOCKET INTEL LGA1851, CS INTEL Z890, 4 DIMM SOCKETS DDR5, DP/HDMI, LAN 2,5G, Wi-Fi, ATX, 3YW - (911-7E54-001)
