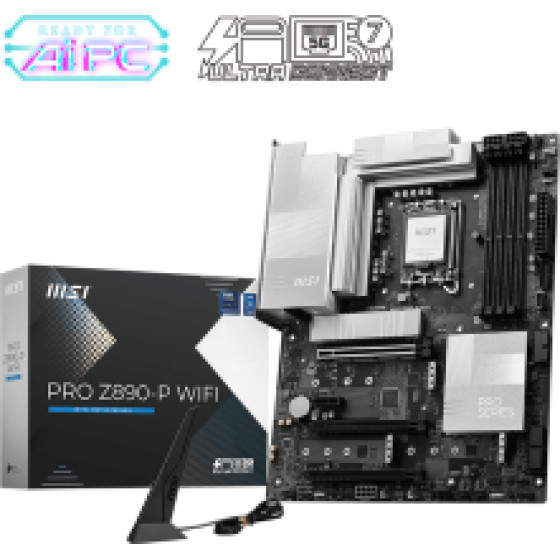

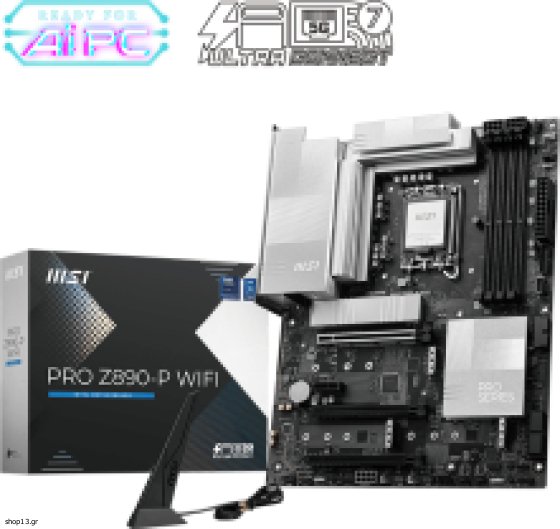

MSI Mb Pro Z890-P WIFI, Socket Intel LGA1851, Cs Intel Z890, 4 Dimm Sockets DDR5, DP/HDMI, Lan 2,5G, Wi-Fi, ATX, 3YW - (911-7E34-001)

CPU Support: Intel Socket LGA 1851, supports Intel Core™ Ultra Processors (Series 2).
Chipset: Intel Z890.
MB Size: ATX.
Memory Support: 4 DIMM DDR5 Sockets for non-ECC un-buffered DDR5 RAM up to 9200+ MT/s Overclocking or up to 6400 MT/s JEDEC. Max 256GB. Support Dual Controller Dual Channel mode. Supports Intel XMP 3.0.
VGA Out (Available only on processors featuring integrated GPU):

1x HDMI v2.1, maximum resolution of 4K 60Hz.
1x DisplayPort v1.4, maximum resolution of 4K 60Hz.
1x Type-C Thunderbolt v4 port, supporting DisplayPort v1.4 USB Type-C, with a maximum resolution of 4K 120Hz/ 8K 60Hz.
Slots: 3x PCI-E (x16) slots, 1x PCI-E x1 slot:

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU).
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset).
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset).
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset).
Storage:

4x M.2:

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices.
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices.
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices.
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4/ SATA mode, supports 2280/2260/2242 devices.
4x SATA 6G.
RAID:

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices.
Lan: Realtek 8126 5Gbps LAN.
Wireless: Intel Wi-Fi 7. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be. Supports Bluetooth 5.4, MLO, 4KQAM.
Audio: Realtek ALC897 Codec. 7.1-Channel High Definition Audio.
I/O:

4x USB 2.0 (Rear).
4x USB 2.0 (Front).
2x USB 5Gbps Type A (Rear).
4x USB 5Gbps Type A (Front).
1x USB 10Gbps Type A (Rear).
1x USB 10Gbps Type C (Rear).
1x USB 20Gbps Type C (Front).
DisplayPort (Rear).
5G LAN (Rear).
Wi-Fi / Bluetooth (Rear).
Audio Connectors (Rear).
Flash BIOS Button (Rear).
Thunderbolt™ 4 40Gbps Type-C (Rear).
HDMI™ (Rear).
Special Features: Wi-Fi 7, Thunderbolt port, 5G Network Solution, EZ M.2 Shield Frozr 2, EZ PCIe Clip 2, Latest DDR5 Memory, Lightning Gen 5, Extended Heatsink Design, Pre-installed I/O Shielding, Frozr AI Cooling.
Εγγύηση: 3 έτη.
