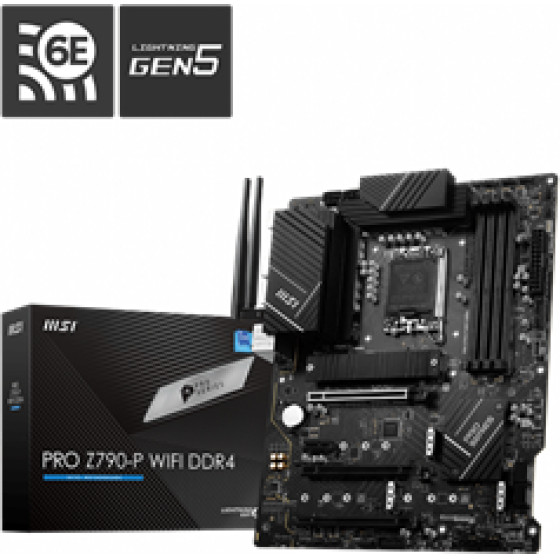

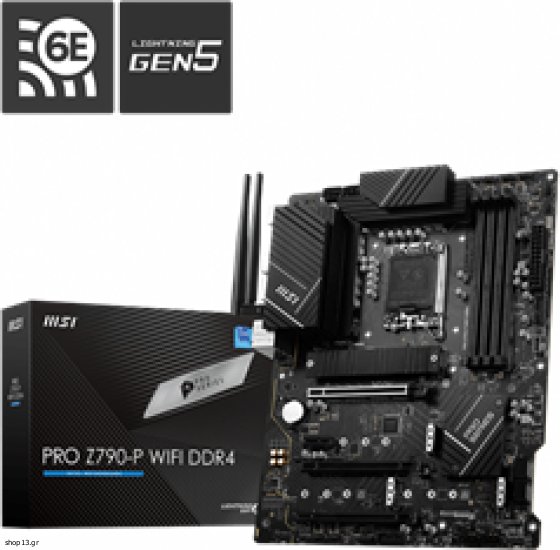

MSI Mb Pro Z790-P Wifi DDR4, Socket Intel LGA1700 13th/12th GEN, Cs Intel Z790, 4 Dimm Sockets DDR4, DP/HDMI, Lan Intel 2.5G, WIFI, ATX, 3YW. - (911-7E06-003)

CPU Support: Socket Intel LGA1700 for 13th/12th Gen Intel Core™ Processors, Pentium/Gold/Celeron Processors

Chipset: Intel Z790

MB Size: ATX

Memory Support: 4 DIMM DDR4 Sockets for non-ECC un-buffered up to3200MHz orup to 5333+MHz (OC). Max 128GB. Supports Dual Channel Architecture, supports Intel Extreme Memory Profile (XMP)

VGA: Intel UHD Graphics, only with Intel CPU that incorporate Intel UHD Graphics GPU

VGA Out: 1x HDMI v2.1 with HDR port (supports a maximum resolution of4K @60Hz), 1x DisplayPort v1.4(supports a maximum resolution of4K @60H)

Slots: 3x PCI-E (x16) (supports up to PCIe 5.0 x16, supports up to PCIe 3.0 x1, PCIe 4.0 x4& 3.0 x1), 1x PCI-E x1

Storage: 6x SATA3 6Gbps ports supports RAID 0/1/5/10. 4x M.2 slots supports raid 0/1/5/10. M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices, M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices.Supports Intel Smart Response Technology for Intel Core™ processors

NIC: Intel 2.5Gbps LAN


WiFi & Bluetooth: Intel Wi-Fi 6E (the Wireless module is pre-installed in the M.2 (Key-E) slot), supports Bluetooth 5.3

Audio: 7.1 Channel HD Audio

I/O: 1x HDMI, 1x DisplayPort, 4(+4int)x USB2.0, 2(+4int)x USB 3.2 Gen1 Type-A, 1x USB3.2 Gen2 10GbpsType-A,1(+1int)x USB3.2 Gen2x2 Type-C, 1x RJ45 (LAN),6 Audio jacks, 2x Antenna, 1x S/PDIF-OUT

Special: Extended Heatsink Design, M.2 Shield Frozr, 2.5G Network Solution, Lightning USB 20G, WiFi 6E, Core boost,MemoryBoost, Frozr AI Cooling, Lightning Gen5, EZ Debug LED

Εγγύηση: 3 χρόνια
