MSI Mb Pro X870E-S Evo WIFI, Socket Amd AM5, Cs Amd X870E, 4 Dimm Sockets DDR5, DP/ HDMI, PCI-E Gen 5.0, 5G LAN, WIFI7, ATX, 3YW. - (911-7E86-003)

CPU Support: Socket AMD AM5. Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors.
Chipset: AMD X870E.
MB Size: ATX.
Memory Support: 4 DIMM DDR5 Sockets for non-ECC un-buffered DDR5 RAM up to 8200+ MT/s (OC) or up to 5600 MT/s (JEDEC). Max 256GB. Support Dual Channel mode. Support AMD EXPO.
VGA Out: (Availiable only on processors featuring integrated GPU.)

1x HDMI 2.1 with TMDS port, maximum resolution of 4K 60Hz.
1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C maximum resolution of 4K 120Hz.
Slots: 2x PCI-E (x16) slots, 1x PCI-E x1 slot:

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage: 3x M.2 Slots:

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID:

Supports RAID 0 , RAID 1, RAID 5, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
LAN: Realtek 8126VB 5G LAN
Wireless:

Wi-Fi 7.The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM.
Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio.

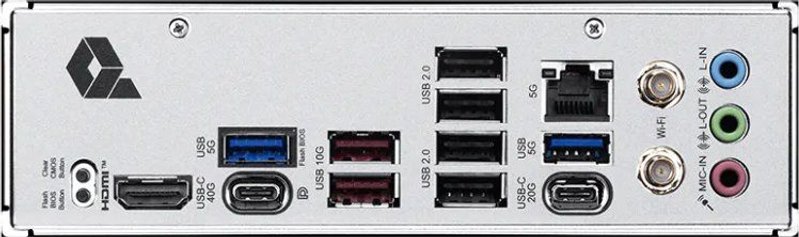

I/O:

4x USB 2.0 (Rear).
6x USB 2.0 (Front).
2x USB 5Gbps Type A (Rear).
4x USB 5Gbps Type A (Front).
2x USB 10Gbps Type A (Rear).
1x USB 10Gbps Type C (Front).
1x USB 20Gbps Type C (Rear).
1x USB 40Gbps Type C (Rear).
1x LAN 5Gb/s (Rear).
1x HDMI (Rear).
Wi-Fi/ Bluetooth Antenna (Rear).
Clear CMOS Button (Rear).
Flash BIOS Button (Rear).
Audio Connectors (Rear).
Special Features: 64MB BIOS, Wi-Fi 7, Lighting USB 40G, Latest DDR5 Memory, Lightning Gen 5, EZ Antenna, Extended Heatsink Design, EZ M.2 Shield Frozr II, EZ PCIe Clip II, Pre-installed I/O Shielding, 5G Network Solution.
Εγγύηση: 3 έτη.
