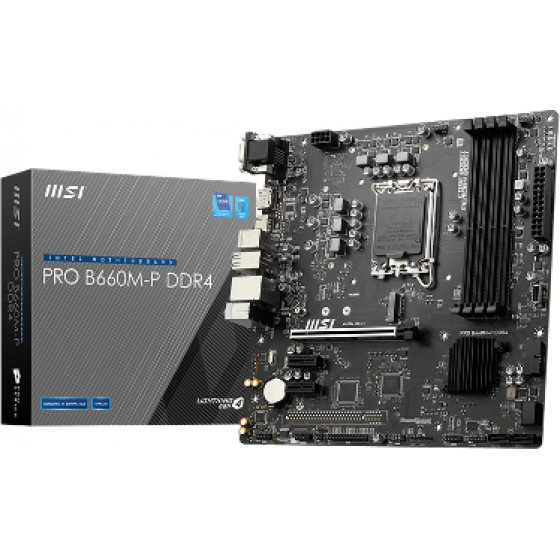

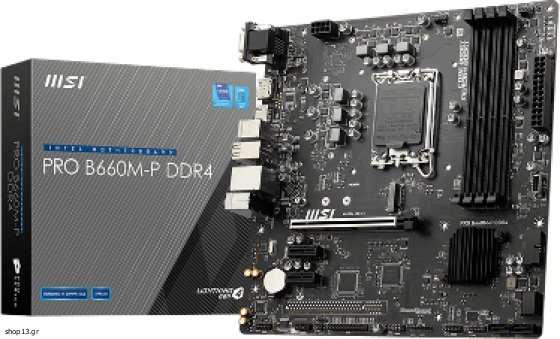

MSI Mb Pro Socket Intel LGA1700 12th GEN, Cs Intel B660, 4 Dimm Sockets DDR4, HDMI/DP/D-SUB, Lan GIGABIT, MICRO-ATX, 3YW. - (B660M-P DDR4)

CPU Support: Socket Intel LGA1700 for 12th Generation Intel CPU Core and Intel Pentium Gold/Celeron
Chipset: Intel B660
MB Size: microATX
Memory Support: 4 DIMM DDR4 Sockets for non-ECC un-buffered DDR4 RAM up to 4600+MHz (OC).Max 128GB. Dual Channel architecture. Support Intel XMP
VGA: Intel UHD Graphics, only with Intel CPU that incorporate Intel UHD Graphics GPU
VGA Out: 1xHDMI v2.1port (supports a maximum resolution of4K @30Hz), 1x Display Port v1.4 (supports a maximum resolution of 4K @60Hz), 1xD-Sub (supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz)
Slots: 1x PCI-E (x16) v4.0, 2x PCI-E (x1) v3.0
Storage: 4x SATA 6Gb/s ports support RAID 0/1/5/10. 1x M.2 slot (Key M), supports PCIe 4.0 x4, Supports 2242/ 2260/ 2280 storage devices
NIC: 1x Realtek RTL8111H 1Gbps LAN controller
Audio: 7.1 Channel HD Audio
I/O: 1xMouse port, 1x Keyboard port, 1x HDMI, 1x Display Port, 1x D-Sub,4x (+2int) USB2.0, 1x (+2int) USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 10GbpsType-C,1x RJ45 (LAN),3 Audio jacks, 1x front panel audio connector, 1x serial port
Special: Front Type-C USB 3.2 Gen 1 5Gbps,Core Boost,Memory Boost, Audio Boost,Lightning Gen4 Solution, Frozr AI Cooling, EZ Debug LED
Εγγύηση: 3 χρόνια
