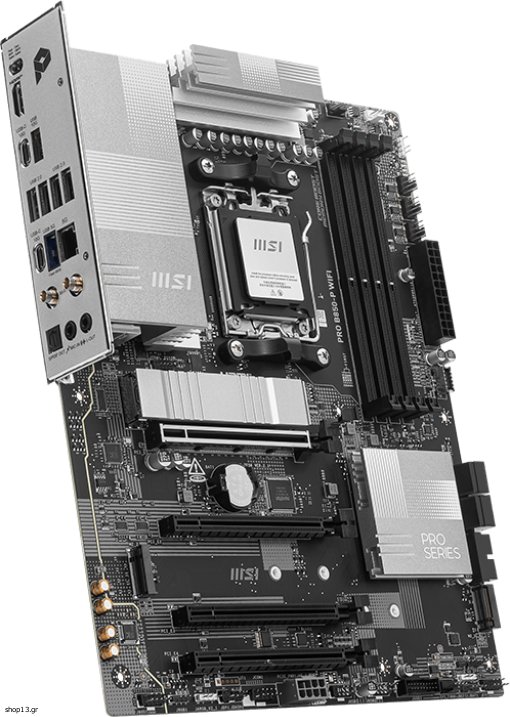

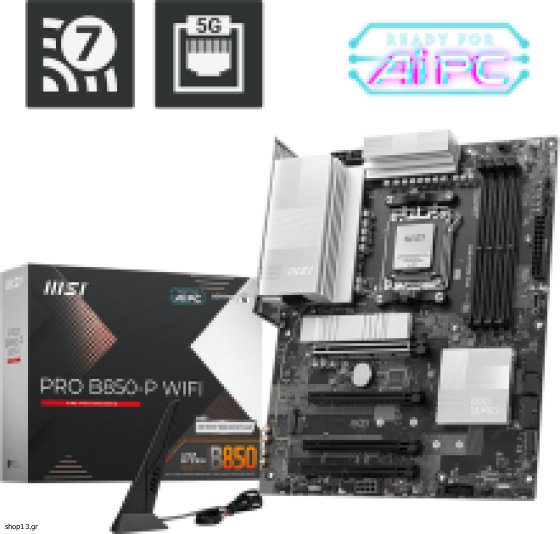

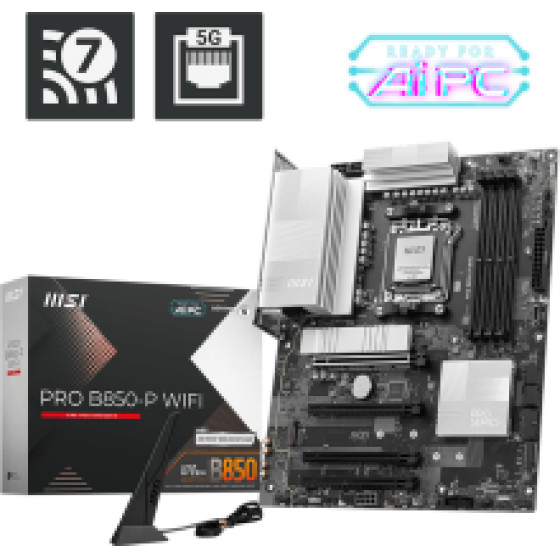

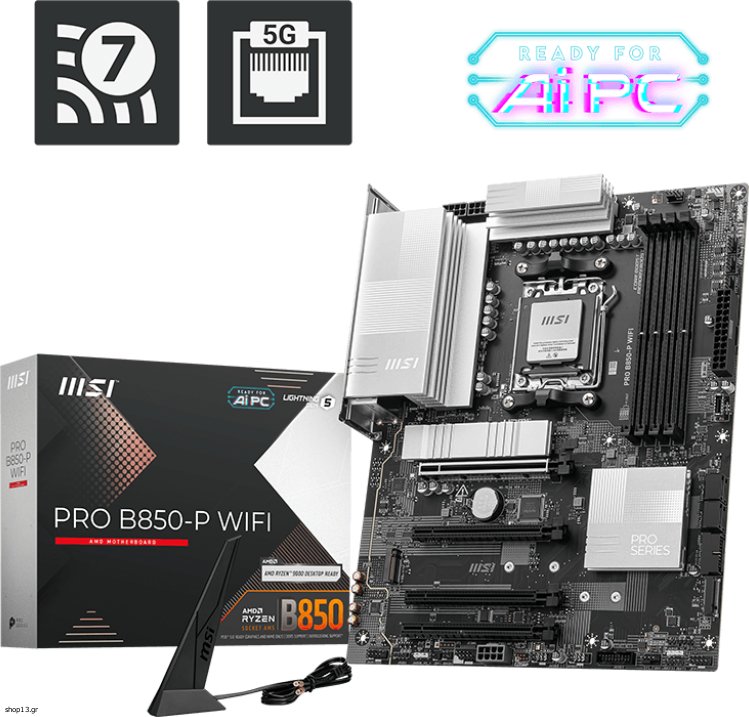

MSI Mb Pro B850-P WIFI, Socket Amd AM5, Cs Amd B850, 4 Dimm Sockets DDR5, HDMI, PCI-E Gen 5.0, Lan 5G, ATX, 3YW. - (911-7E56-002)

CPU Support: Socket AM5, supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors.
Chipset: AMD B850.
MB Size: ATX.
Memory Support: 4 DIMM DDR5 Sockets for non-ECC un-buffered DDR5 RAM up to 8200+ MT/s Overclocking or up to 5600 MT/s JEDEC. Max 256GB. Support Dual Channel mode. Supports AMD EXPO.
VGA Out:(Availiable only on processors featuring integrated GPU):

1x HDMI 2.1, maximum resolution of 4K 60Hz.
Slots: 4x PCI-E (x16) slots:

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU).

Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset).
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset).
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset).
Storage: 3x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices.

Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors).
Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors).
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices.

Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors).
Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors).
Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors).
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices.
4x SATA 6G.
RAID: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices.
LAN: Realtek 8126VB 5G LAN.
Wireless: Wi-Fi 7. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be. Supports Bluetooth 5.4, MLO, 4KQAM).
Audio: Realtek ALC897. 7.1-Channel High Definition Audio.
I/O:

4x USB 2.0 (Rear).
4x USB 2.0 (Front).
1x USB 5Gbps Type A (Rear).
4x USB 5Gbps Type A (Front).
1x USB 5Gbps Type C (Front).
1x USB 10Gbps Type A (Rear).
2x USB 10Gbps Type C (Rear).
5G LAN (Rear).
Wi-Fi / Bluetooth Antenna (Rear).
Audio Connectors (Rear).
HDMI™ (Rear).
S/PDIF-OUT (Rear).
Special Features: Latest DDR5 Memory, Lightning Gen5, Extended Heatsink Design, EZ PCI-E Clip 2, EZ M.2 Shield FROZR 2, Frozr AI Cooling, 5G Network Solution, Wi-Fi 7, Pre-installed I/O Shielding.
Εγγύηση: 3 έτη.
