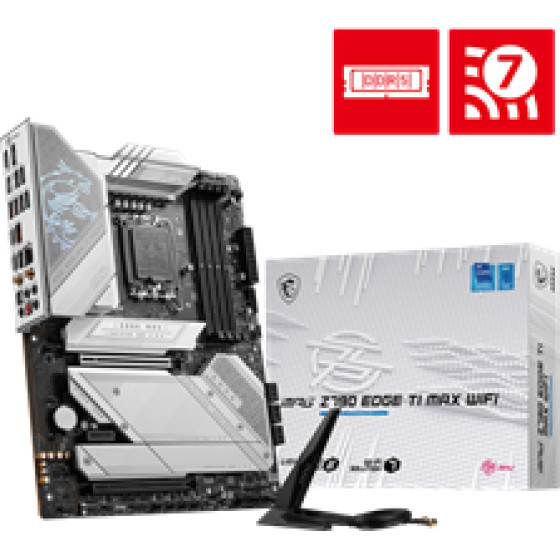

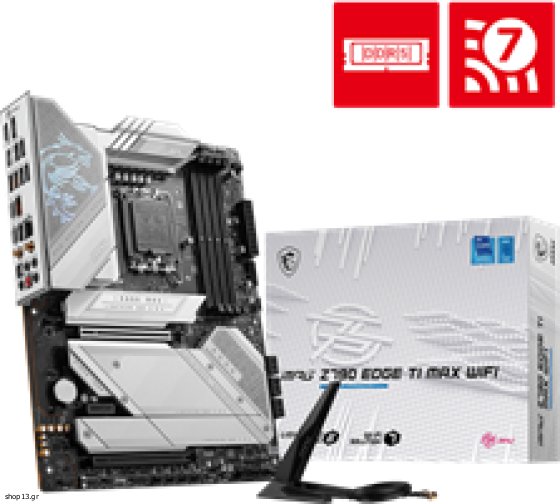

MSI Mb Mpg Z790 Edge Ti Max WIFI, Socket Intel LGA1700 14th/13th/12th Gen CPU, Cs Intel Z790, 4 Dimm Sockets DDR5, DP/HDMI, Lan 2.5G, Wifi 7, ATX, 3YW - (911-7Ε25-009)

CPU Support: Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors Socket Intel LGA1700.
Chipset: INTEL Z790
MB Size: ATX
Memory Support: 4 DDR5 UDIMM Sockets for non-ECC un-buffered DDR5 RAM up to 7800+MHz (OC). Max 256GB. Dual-Channel mode, Dual-Controller. Supports Intel XMP3.0 OC.
VGA Out: 1x HDMI v2.1, maximum resolution of 4K 60Hz. 1x DisplayPort v1.4, maximum resolution of 8K 60Hz. Available only on processors featuring integrated GPU
Slots: 2x PCI-E x16 slot. 1x PCI-E x1 slot. PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset).
Storage: 5x M.2. M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices. M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices. M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices. M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices. M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices. Supports RAID 0/1/5/10 for M.2 NVMe SSD. 8x SATA 6G. Support RAID 0/1/5/10 for SATA storage devices.
NIC: Intel 2.5Gbps LAN
Wireless: Wi-Fi 7 Solution. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax. Supports Bluetooth 5.4, MLO, 4KQAM.
Audio: Realtek ALC4080 Codec, 7.1-Channel High Definition Audio.
I/O: 4x internal USB 2.0, 4x (+2int.) USB 5Gbps Type A, 4x USB 10Gbps Type A, 1x (+1int.) USB 10Gbps Type C, 1x USB 20Gbps Type C, 1x LAN, 1x Display Port, 1x HDMI, HD Audio Connectors, Wifi/ Bluetooth Antenna, Optical S/PDIF out, Clear CMOS Button, Flash BIOS Button.
Special: Premium Thermal Design, Lightning Gen 5, Latest DDR5 Memory, Screwless M.2 Shield Frozr, WiFi 7, 2.5G Network Solution, Lightning USB 20G, Audio Boost 5, Core Boost, Memory Boost
Led Feature: 4x EZ Debug LED, 1x EZ LED Control switch.
Box Content: E.U. Regulatory Notice, Quick Installation guide, 3x E2 Clip Packages, WiFi Antenna, Cable sticker, Shout out Flyer, ARGB & Fan Extension Y-Cable, USB Drive, Front Panel Cable, 2x SATA Cables.
Εγγύηση: 3 χρόνια
