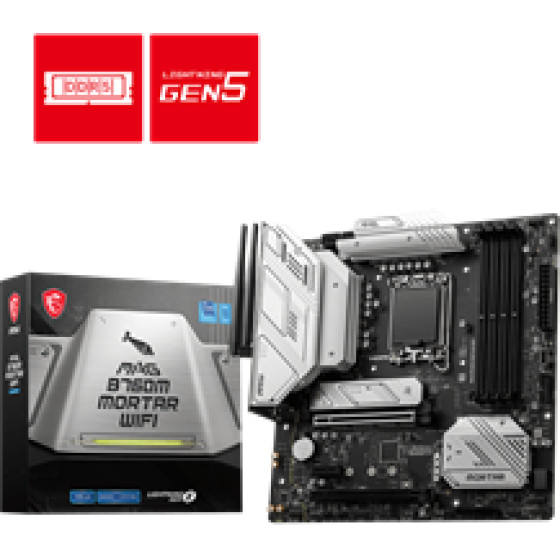

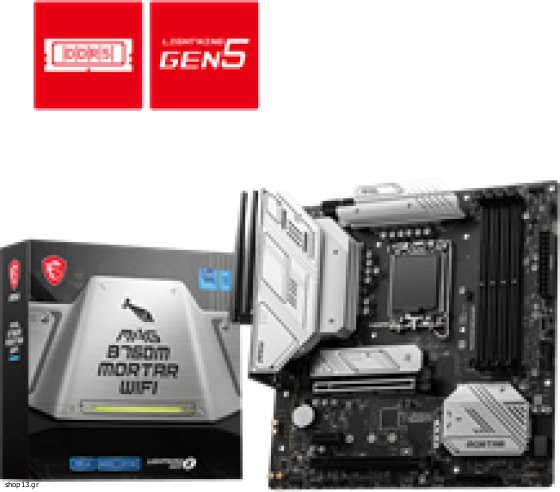

MSI Mb Mag B760M Mortar WIFI, Socket Intel LGA1700 13th/12th GEN, Cs Intel B760, 4 Dimm Sockets DDR5, DP/HDMI, Lan I2.5G, WIFI, mATX, 3YW. - (911-7E01-012)

CPU Support: Socket Intel LGA1700 for 12th/13th Generation Intel CPU Core Processors and Intel Pentium Gold, Celeron Processors.
Chipset: Intel B760.
MB Size: mATX.
Memory Support:4 DIMM DDR5 Sockets for non-ECC un-buffered DDR5 RAM up to 7000 MHz (OC). Max 128GB. Dual Channel architecture. Support Intel XMP OC.
VGA: Intel UHD Graphics, only with Intel CPU that incorporate Intel GPU.
VGA Out: 1x HDMI v2.1, 1x Display Port v1.4.
Slots: 2x PCI-E (x16). 1x PCI-E ver5.0 and 1x PCI-E ver4.0. 1x PCI-E (x1) ver3.0.
Storage: 4x SATA3 6Gbps ports. Support RAID 0/1/5/10. 2x M.2 slot total. 2x M.2 PCI-E ver4.0 (x4).
NIC: 2.5Gbps LAN.
Wireless: Intel Wi-Fi 6E, support 802.11 a/b/g/n/ac/ax. Bluetooth 5.3.
Audio: 8 Channel (7.1) High Performance Audio.
I/O: 4x (+4int) USB 2.0, 3x USB 3.2 Gen2 Type-A, 1x (+1int) USB 3.2 Gen2 Type-C, 2x int USB 3.2 Gen1 Type-A, 1x Display port v1.4, 1x HDMI v2.1, S/PDIF-Out, 1x LAN (RJ45), Wireless antenna, Audio Connectors.
Special: Lightning Gen 5, Latest DDR5 Memory, Wi-Fi 6E, 2,5G Network Solution, Lightning USB 20G, M.2 Shield Frozr, Memory Boost, Core Boost, Audio Boost, 6 Layer PCB with 2oz Thickened Copper.
Εγγύηση: 3 χρόνια.
