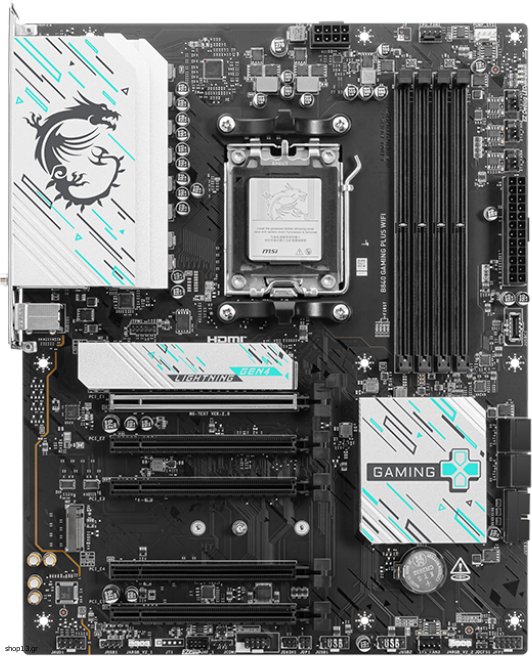

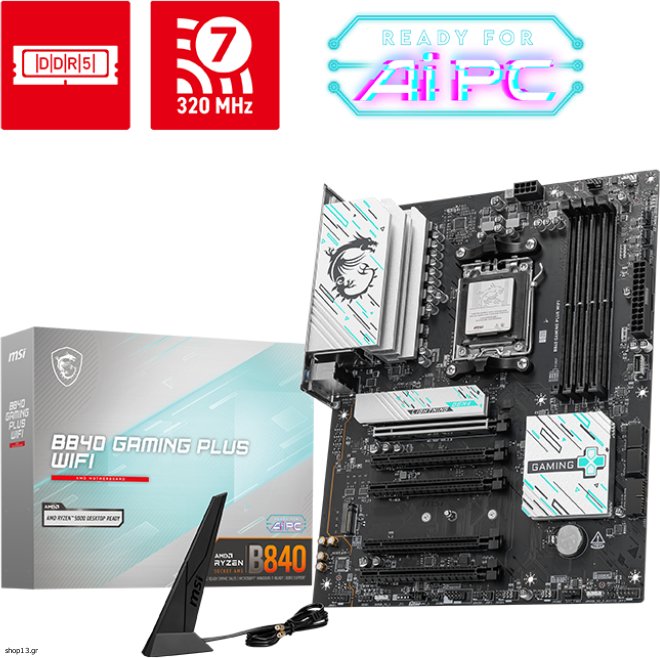

MSI MB B840 GAMING PLUS WIFI, SOCKET AMD AM5, CS AMD B840, 4 DIMM SOCKETS DDR5, HDMI, PCI-E GEN 4, LAN 2.5G, WIFI, ATX, 3YW.

CPU Support: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AMD AM5.
Chipset: AMD B840.
MB Size: ATX.
Memory Support: 4 DIMM DDR5 Sockets for non-ECC un-buffered DDR5 RAM up to 8000+ MT/s (OC) or up to 5600 MT/s (JEDEC). Max 256GB. Support Dual Channel mode. Support AMD EXPO.
VGA Out: (Availiable only on processors featuring integrated GPU)

1x HDMI 2.1 maximum resolution of 4K 60Hz.
Slots: 5x PCI-E x16 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU).
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset).
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset).
PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset).
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset).

PCI_E1 slot
Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors).
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors).
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor).
Storage:

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices.
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices.
4x SATA 6G

M2_2 slot
Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors).
Supports up to PCIe 3.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors).
Supports up to PCIe 3.0 x2 (For Ryzen 8500/ 8300 Series processor).
RAID: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices.
LAN: Realtek 8125BG 2.5G LAN.
Wireless:

Wi-Fi 7 Solution. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be.
Supports Bluetooth 5.4, MLO, 4KQAM.
Audio: Realtek ALC897. 7.1-Channel High Definition Audio.

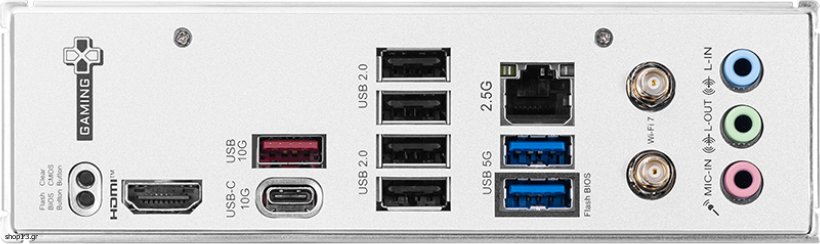

I/O:

4x USB 2.0 (Rear).
4x USB 2.0 (Front).
2x USB 5Gbps Type A (Rear).
2x USB 5Gbps Type A (Front).
1x USB 5Gbps Type C (Front).
1x USB 10Gbps Type A (Rear).
1x USB 10Gbps Type C (Rear).
1x 2.5G LAN (Rear).
1x Clear CMOS Button (Rear).
1x Flash BIOS Button (Rear).
1x HDMI 2.1 Port (Rear).
Wi-Fi/ Bluetooth Antenna (Rear).
Audio Connectors (Rear).
Special Features: Wi-Fi 7, Latest DDR5 Memory, Lightning Gen 4 Solution, Extended Heatsink Design, EZ M.2 Shield Frozr II, EZ PCIe Clip II, Pre-installed I/O Shielding, 2.5G Network Solution, Dual M.2 Connectors, Audio Boost.
Εγγύηση: 3 έτη.
