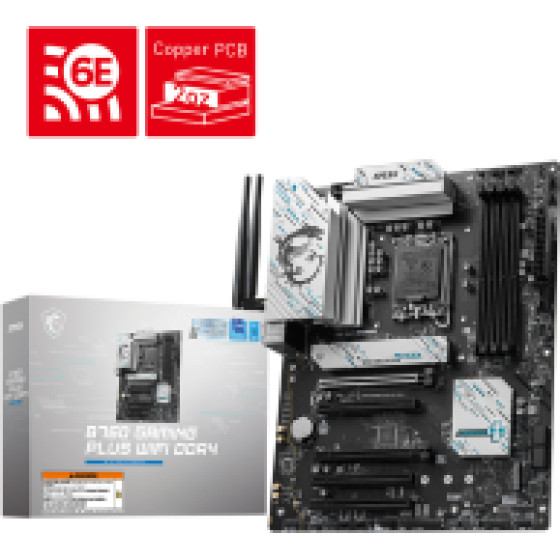

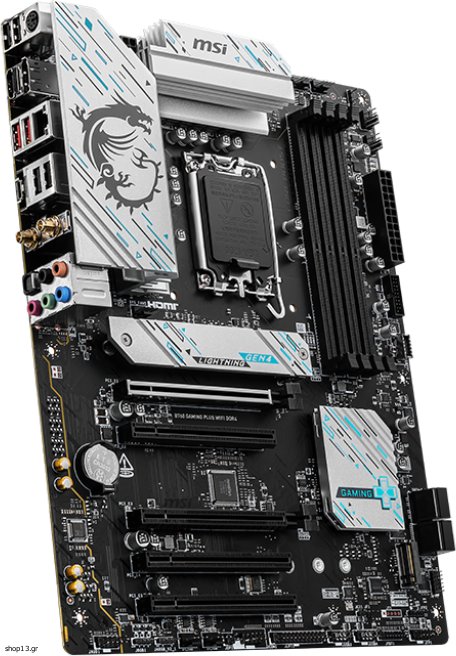

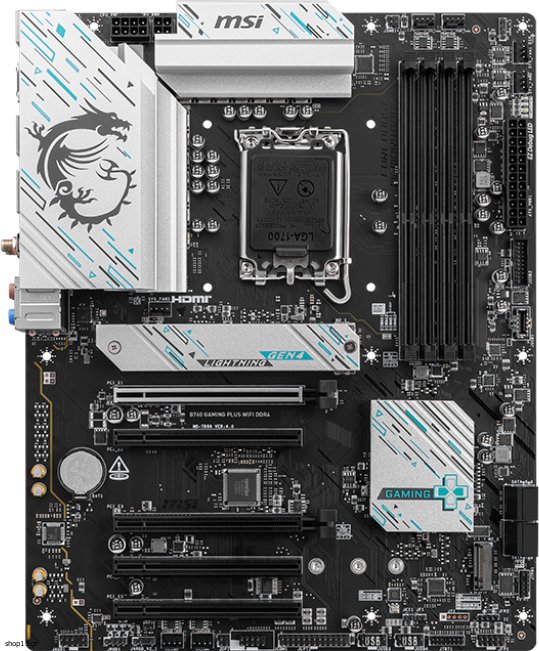

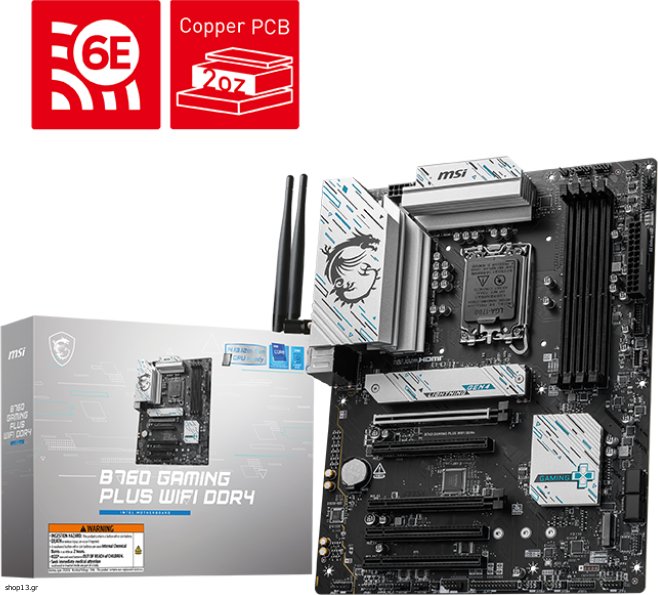

MSI Mb B760 Gaming Plus Wifi DDR4, Socket Intel LGA1700 14th/13th/12th Gen CPU, Cs Intel B760, 4 Dimm Sockets DDR4, DP/HDMI, PCI-E Gen 4.0, ATX, 3YW - (911-7D98-042)

CPU Support: Intel Socket LGA 1700, supports 14th / 13th / 12th Gen Intel Core Ultra Processors, Pentium Gold and Celeron Processors.
Chipset: Intel B760.
MB Size: ATX.
Memory Support: 4 DIMM DDR4 Sockets for non-ECC un-buffered DDR4 RAM up to 5333+ MT/s Overclocking or up to 3200 MT/s JEDEC. Max 128GB. Support Dual Controller Dual Channel mode. Supports Intel XMP 3.0.
VGA Out (Availiable only on processors featuring integrated GPU):

1x HDMI 2.1 with HDR, maximum resolution of 4K 60Hz.
1x DisplayPort 1.4, maximum resolution of 4K 60Hz.
Slots: 5x PCI-E (x16) slots:

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU).
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset).
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset).
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset).
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset).
Storage:

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices.
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4/ SATA mode, supports 2280/2260/2242 devices.
4x SATA 6G.
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices.
Lan: Realtek RTL8125BG 2.5G LAN.
Wireless: Intel Wi-Fi 6E. The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax. Supports Bluetooth 5.3, FIPS, FISMA.
Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio. Supports S/ PDIF output.
I/O:

4x USB 2.0 (Rear).
4x USB 2.0 (Front).
2x USB 3.2 Gen 1 5Gbps Type A (Front).
1x USB 3.2 Gen 15Gbps Type C (Front).
2x USB 3.2 Gen 2 10Gbps Type A (Rear).
1x USB 3.2 Gen 2 10Gbps Type C (Rear).
2.5G LAN (Rear).
Keyboard / Mouse (Rear).
Wi-Fi / BluetoothAntenna (Rear).
Audio Connectors (Rear).
HDMI™ (Rear).
DisplayPort (Rear).
S/PDIF-OUT (Rear).
Special Features: Lightning Gen4 Solution, Extended Heatsink Design, PCI-E Steel Armor, M.2 Shield FROZR, Frozr AI Cooling, 2.5G Network Solution, Wi-Fi 6E, Core Boost, Audio Boost.
Εγγύηση: 3 έτη.
