Περιγραφή
CPU Support: Socket AMD AM4 for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors.
Chipset: AMD B450.
MB Size: microATX.
Memory Support: 2 DDR4 Sockets for non-ECC un-buffered DDR4 RAM up to 4133MHz (OC). Max 64GB. Dual-Channel mode.
VGA Out: 1x HDMI v2.0b, max resolution of 4K 60Hz,1x DVI-D maximum resolution of 1920x1200 60Hz. Available only on processors featuring integrated GPU.
Slots: 1x PCI-E x16 slot, 1x PCI-E x1 slots.
Storage: 1x M.2 GEN3x 4 slot, 4x SATA 6Gbps ports. Supports RAID 0/1/10 for SATA storage devices
NIC: 1x Realtek RTL8111H LAN controller, 7.1-Channel High Definition Audio
Audio: Realtek ALC892/ALC897 Codec
I/O: 2x (+4int.)USB 2.0, 4x (+2 int.) USB 3.2 Gen1 5GbpsType A, 1x VGA, 1x LAN, 1x Display Port, 1x HDMI, Audio Connectors,Keyboard/ Mouse.
Special: Turbo M.2, M.2 Shield frozr, Core Boost, EZ Debug LED, Audio Boost, DDR4 Boost, 2oz Thickened Copper PCB.
Εγγύηση: 3 χρόνια.
Χαρακτηριστικά
Μοντέλο

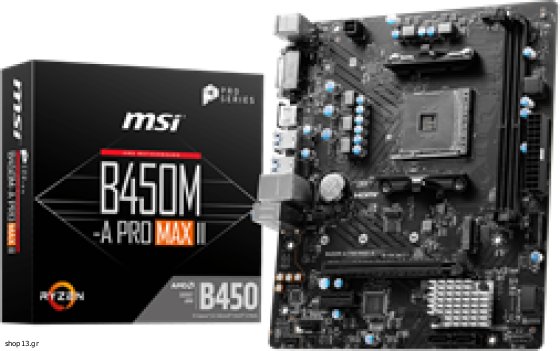

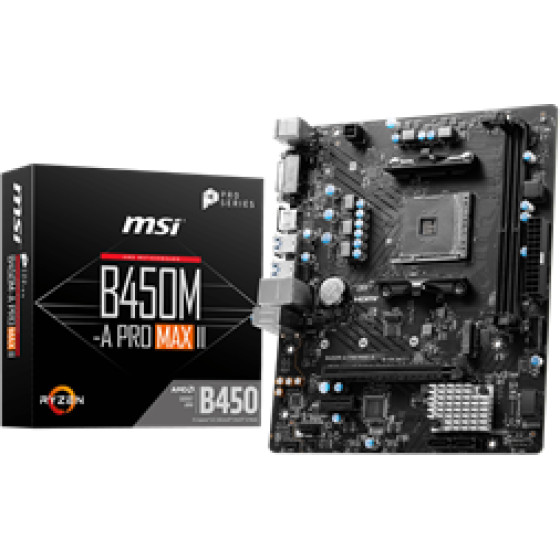

MSI MB B450M-A PRO MAX II, SOCKET AMD AM4, CS AMD B450, 2 DIMM SOCKETS DDR4, DVI-D/ HDMI, LAN, MICRO-ATX, 3YW. - (911-7C52-036)
