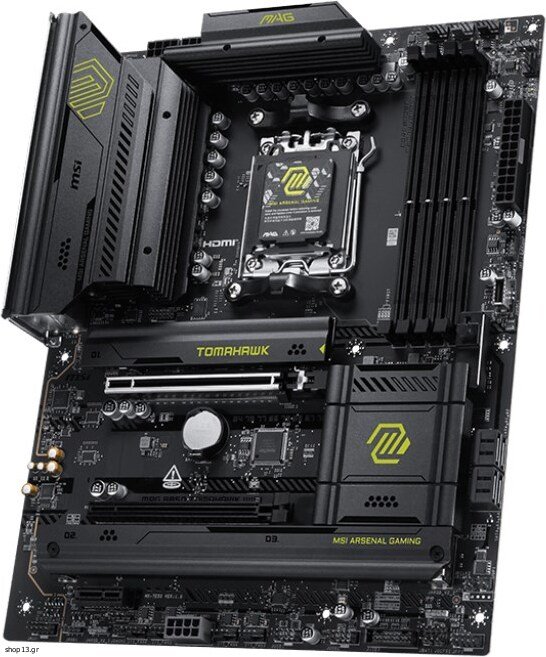

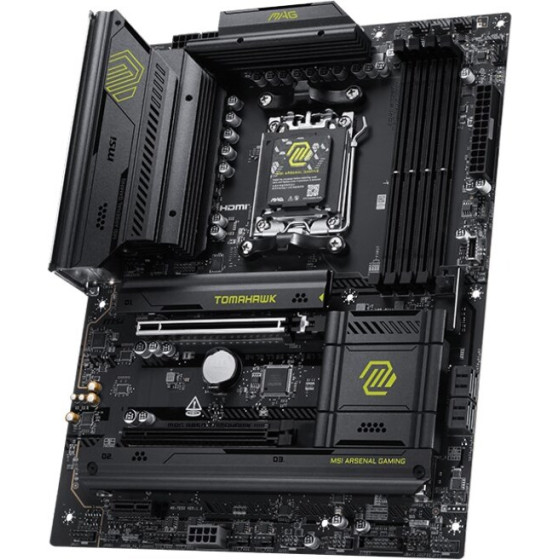

MSI Mag B850 Tomahawk Wifi Motherboard Amd B850 Socket AM5 Atx - (7E53-001R)
[Κωδικός : 885816]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Processor
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Graphics
On-board graphics card: No
Features
Product colour: Black
Audio chip: Realtek ALC4080
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset: AMD B850
Memory
Supported memory clock speeds: 4800, 5600, 8200 MHz
Memory channels: Dual-channel
Maximum internal memory: 256 GB
ECC ?ompatibility: Non-ECC
Supported memory clock speed (max): 8200 MHz
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Weight & dimensions
Width: 243.8 mm
Depth: 304.8 mm
Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11a, 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth version: 5.4
Internal I/O
USB 2.0 connectors: 4
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 6
Number of water pump connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Total number of SATA connectors: 4
RGB LED pin header: Yes
BIOS
BIOS type: UEFI
Storage controllers
RAID levels: 10, 1, 0
Supported storage drive interfaces: M.2, Micro SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 7
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Expansion slots
3rd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
3rd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Warranty: warranty 36 months
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Graphics
On-board graphics card: No
Features
Product colour: Black
Audio chip: Realtek ALC4080
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset: AMD B850
Memory
Supported memory clock speeds: 4800, 5600, 8200 MHz
Memory channels: Dual-channel
Maximum internal memory: 256 GB
ECC ?ompatibility: Non-ECC
Supported memory clock speed (max): 8200 MHz
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Weight & dimensions
Width: 243.8 mm
Depth: 304.8 mm
Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11a, 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth version: 5.4
Internal I/O
USB 2.0 connectors: 4
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 6
Number of water pump connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Total number of SATA connectors: 4
RGB LED pin header: Yes
BIOS
BIOS type: UEFI
Storage controllers
RAID levels: 10, 1, 0
Supported storage drive interfaces: M.2, Micro SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 7
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Expansion slots
3rd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
3rd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Warranty: warranty 36 months
Χαρακτηριστικά
Μοντέλο
MSI MAG B850 TOMAHAWK WIFI motherboard AMD B850 Socket AM5 ATX - (7E53-001R)
Δείτε περισσότερα
Σύνολο: 2586.46€
