Περιγραφή
Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor socket: Socket AM5
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Features
Product colour: White
Audio chip: Realtek ALC897
Motherboard chipset: AMD B850
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64
Motherboard form factor: ATX
Memory
Supported memory clock speeds: 6400, 4800, 8200, 5600
Maximum internal memory: 256 GB
Number of memory slots: 4
Memory slots type: DIMM
ECC ?ompatibility: Non-ECC
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 8200 MHz
Weight & dimensions
Depth: 304.8 mm
Width: 243.8 mm
Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n)
Ethernet LAN: Yes
Wi-Fi: Yes
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth version: 5.4
Internal I/O
CPU fan connector: Yes
Number of SATA III connectors: 4
RGB LED pin header: Yes
USB 2.0 connectors: 4
Number of RGB LED pin headers: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
Number of CPU fan connectors: 6
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of water pump connectors: 1
Total number of SATA connectors: 4
Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 0, 1
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
Supported storage drive interfaces: M.2, Micro SATA III

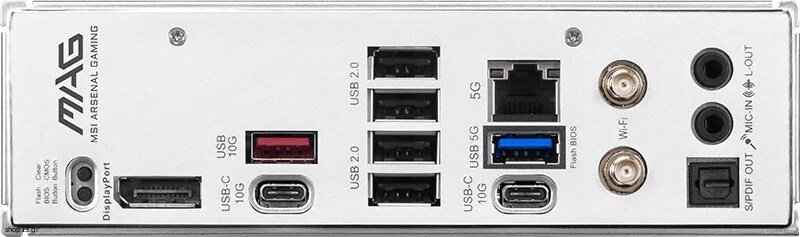

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPort version: 1.2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
Expansion slots
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 3
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
3rd M.2 largest key size: 2280
Warranty: warranty 36 months
